• Model NO.：JK-DR 200
• Type：Crawler
• Power：65 Kw
• Power Type：Diesel
• Usage：Water Well
• Voltage：24 V
• Weight：5.8 T
• Warranty：1 Year
• Transport Package：20gp
• Specification：4000*1750*2450mm
• Trademark：SDJK
• Origin：Shang Dong
• HS Code：8430412100
• Production Capacity：100sets,Month

Basic Info.

Model NO. JK-DR 200 Type Crawler Power 65 Kw Power Type Diesel Usage Water Well Voltage 24 V Weight 5.8 T Warranty 1 Year Transport Package 20gp Specification 4000*1750*2450mm Trademark SDJK Origin Shang Dong HS Code 8430412100 Production Capacity 100sets/Month

Product Description

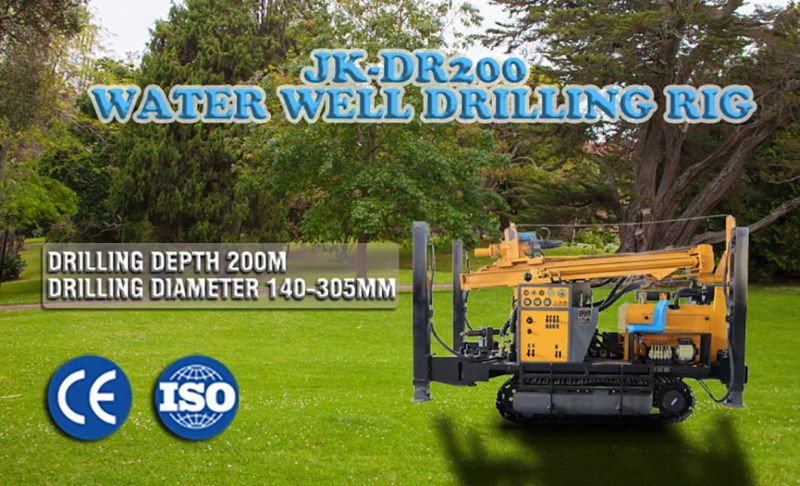

 JK-DR 200 Steel Crawler Water Well Drilling Rig

Model & Name	JK-DR200
Weight	5800 kg
Dimensions(mm)	4000*1750*2450mm
Power Oil	Diesel
Engine Model	YUCHAI
Rated Power	65 kW
Travelling System	Steel Crawler
Drilling depth	200m
Bore diameter	140-305mm
Drive Head Stroke	3.4m
Travelling speed	2.5km/h
Gradeability	30%
Rated pressure	1.7-3.0 MPa
Air consumption	17-30 m³/min
Drill rod diameter	Φ76,Φ89mm
Drill rod length	1.5m, 2.0m, 3.0m
Elevating capacity	15 Ton
Swing speed	45-65rpm
Swing torque	3500-4800 N.m

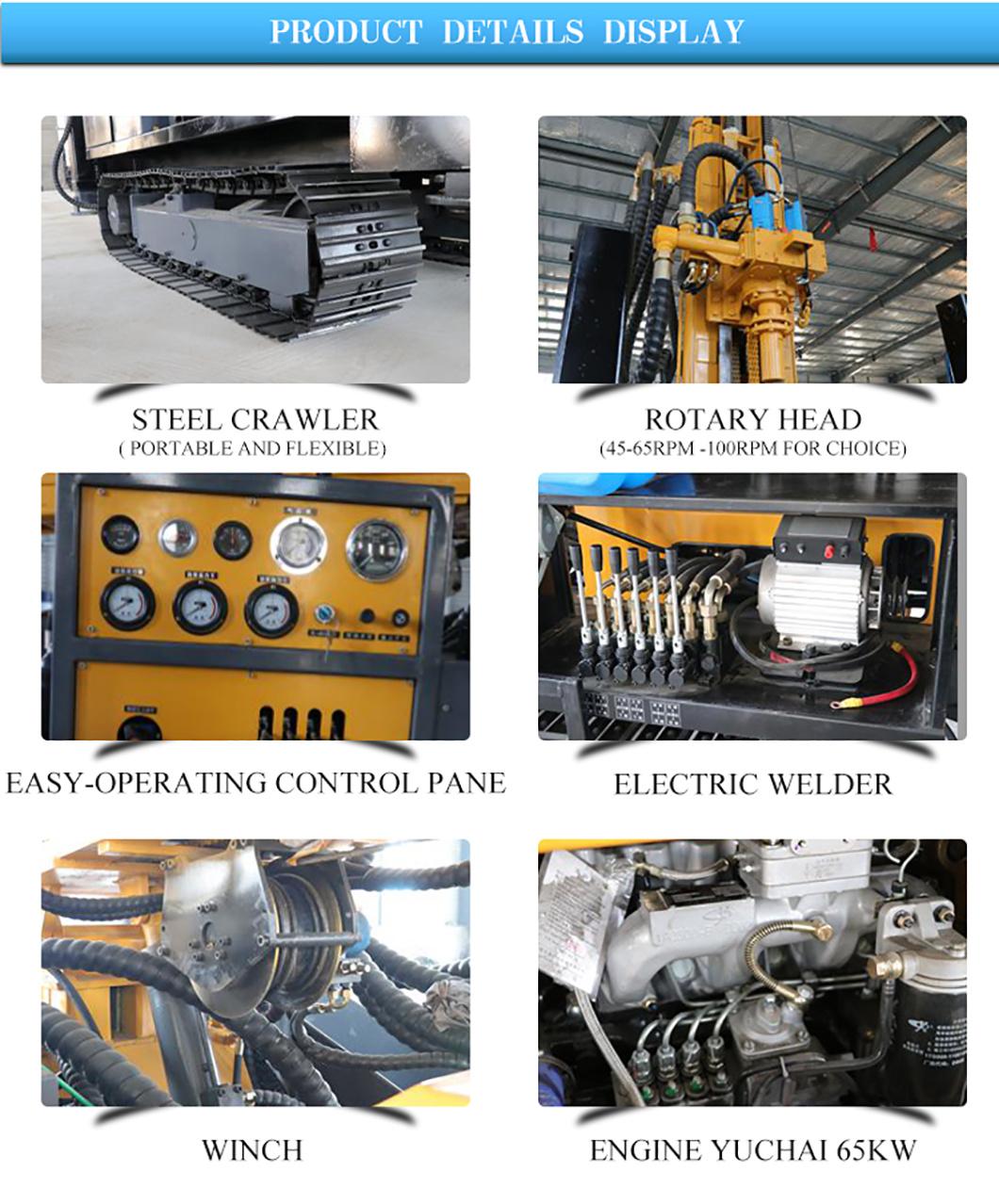

1. The engine uses YUCHAI 65 KW turbocharged engine;
2. Walking Type: crawler mounted ,trailer mounted for choice.
3. Hydraulic oil pump:Parallel gearbox design separates the oil pump unit, the power supply is adequately distributed, the hydraulic system is uniquely designed, and the maintenance cost is small;
4.Rotary head device:gearbox integrated casting, dual motor power, large torque, durable, low maintenance costs;
5.Drilling machine chassis:professional digging chassis, durable, heavy bearing, wide chain plate, less damage to hard roads;
6.Lifting force:design composite tower, 3.4m long stroke, double cylinder lift capacity 15 ton.
7. Each rig is equipped with a relief valve to raise the boom to protect the cylinder and ensure work safety;
8. Each hydraulic oil pipe is covered with a protective jacket to make the oil pipe last longer.
