130m Pneumatic 3-Wheels Movable Water Well Drilling Rig for Farm
Quzhou Zhongdu Machinery Technology Co., Ltd.- Condition：New
- Drill Hole Diameter：100-219 mm
- Drill Hole Depth：130m
- Bit Type：DTH Drill Bit
- Drilling Way：Rotary
- Type：Three Wheels
Base Info
- Model NO.：FY130
- The Hole Diameter：100-219 mm
- Drill Pipe Diameter：76mm; 89mm
- Drill Pipe Length：1.5m 2.0m
- Engine：Diesel
- Engine Brand：Changchai
- Rated Power：23 Kw
- Rig Lifting Force：6 T
- Rapid Rise Speed：15m,Min
- Walking Speed：3 Km,H
- Climbing Angles (Max.)：30 Degrees
- Using Air Pressure：1.45-2.5 MPa
- Air Consumption：15-29 M3,Min
- Dimensions：3850*1560*2050 mm
- Weight：3 T
- Transport Package：Container
- Specification：3850*1560*2050 mm
- Origin：Zhejiang
- HS Code：8430419000
- Production Capacity：30PCS Per Month
Description
Overview
Product Description
Detailed Photos

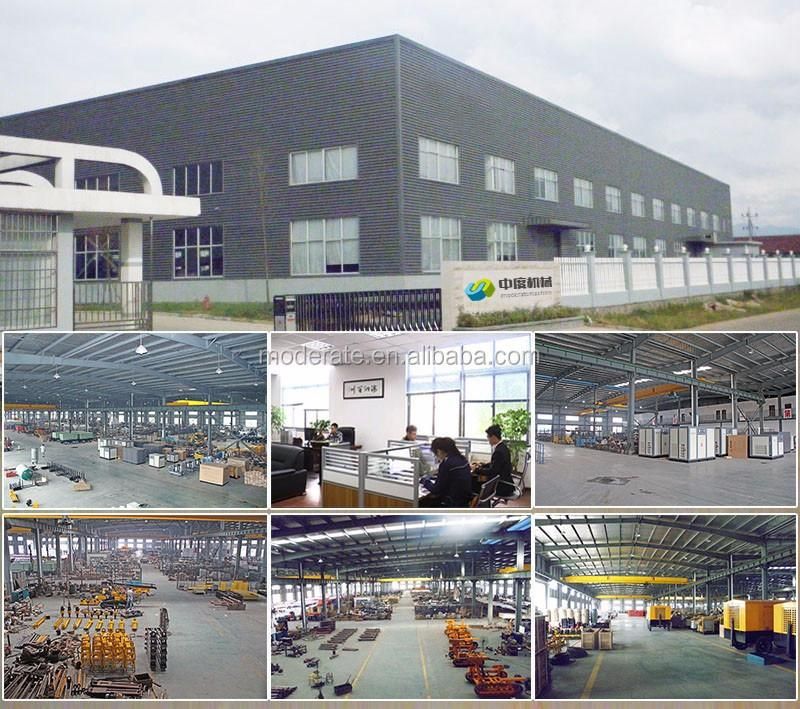

Company Profile
FAQ
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.
Q2: What the exactly address of your factory?
A2: Our company is located in Kaixuan Road ,Economic Zone Quzhou, Zhejiang, China
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.
Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.
Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.
Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
