• Model NO.：HGY-200
• Drilling Way：Rotary
• Chuck：Hydraulic Chuck
• Power Type：Diesel
• Usage：Coal, Ore, Water Well, Geotechnical Investigation
• Dimensions：1860X800X1400mm
• Quality：High Quality
• Transport Package：in New Strong Plywood Case
• Specification：200
• Trademark：csmiracleland
• Origin：Changsha, Hunan, China
• HS Code：8430691900
• Production Capacity：30sets,Month

Basic Info.

Model NO. HGY-200 Drilling Way Rotary Chuck Hydraulic Chuck Power Type Diesel Usage Coal, Ore, Water Well, Geotechnical Investigation Dimensions 1860X800X1400mm Quality High Quality Transport Package in New Strong Plywood Case Specification 200 Trademark csmiracleland Origin Changsha, Hunan, China HS Code 8430691900 Production Capacity 30sets/Month

Product Description

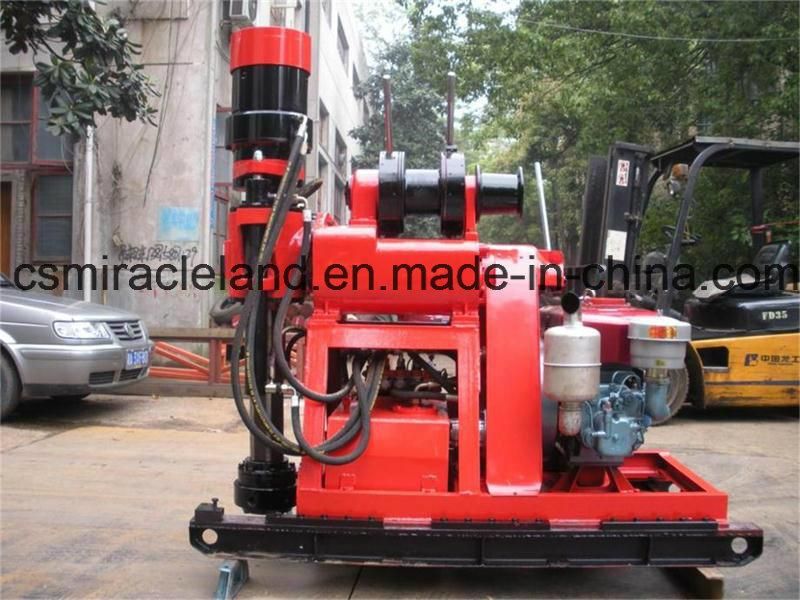

HGY-200 High-Performance Drilling Rig:
Drilling depth(m): 200;
LxWxH(mm): 1860x800x1400;
Spindle stroke(mm): 500;
Diesel engine: ZS1110(14.7 KW);
Electric motor: Y160L-4(15KW);

Product Features:
1. Good stability and high reliability.
2. Multilevel positive and reverse rotate speed.
3. The complete hydraulic chuck and vertical spindle, hydraulic chuck on top and manual chuck at the bottom
4. Steel Skid mounted with Hydraulic retraction system
5. Convenient to transport with the small volume and light weight.
6. Perfect frame's rigidity, low center of gravity and good stability.

Product Application:
It is widely used in the construction of the projects e. g. prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.



HGY-200 drilling rig can be equipped with large spindle hole diameter 95mm per customer's requests, and the standard spindle hole diameter is 63mm. This rig is equipped hydraulic chuck on top and the manual chuck at the bottom, which makes the rig more stable during drilling, increase the drilling efficiency and reduce the drilling accidents happened.

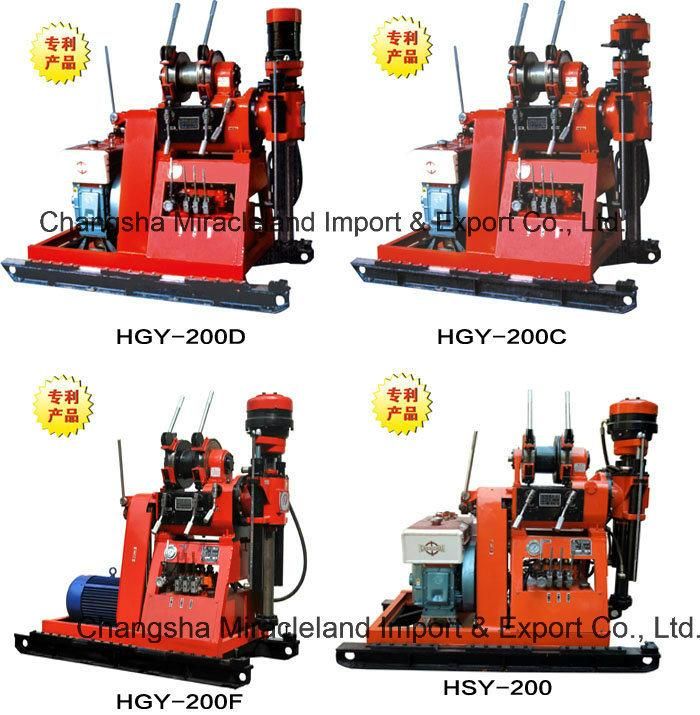

Several kinds of hydraulic chuck for customer's choice.

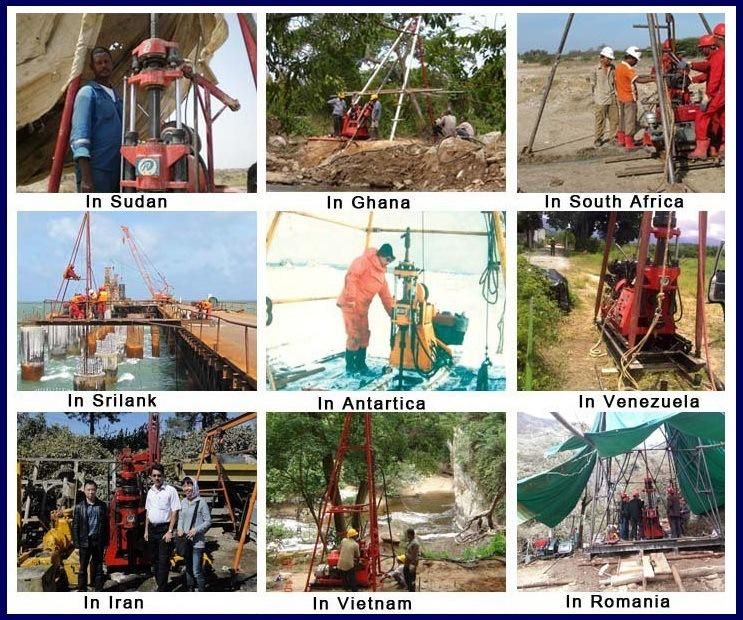

Our drilling rigs are all over the world!

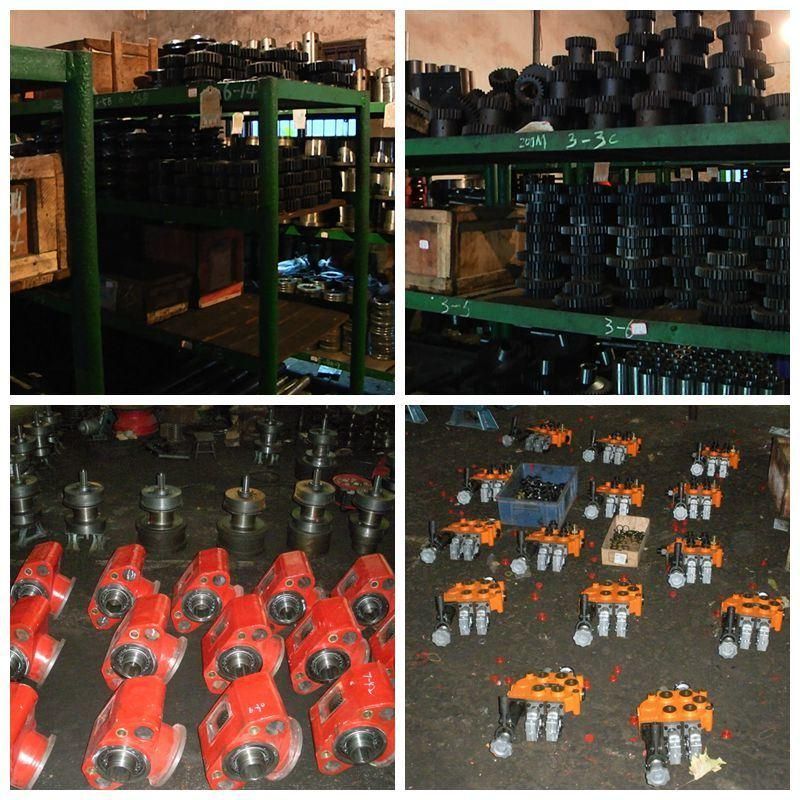

We supply the plenty of drilling rig spare parts for all customers, no worries for after -sale services!

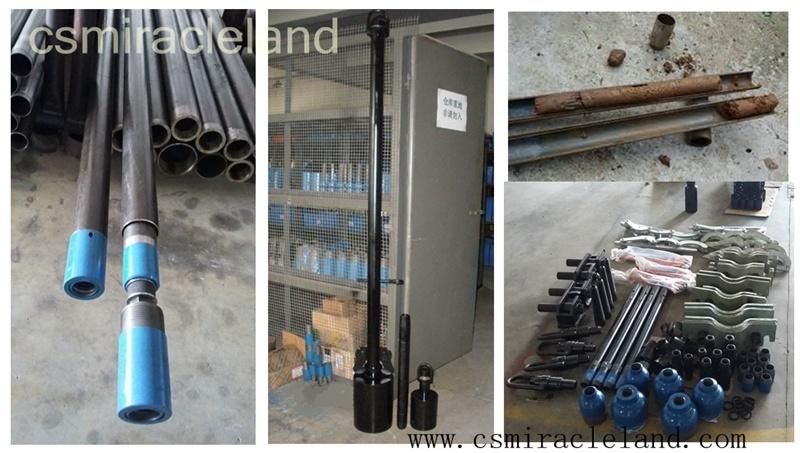

We can provide all kinds of core barrels, SPT split tube samplers, automatic SPT hammer, SPT drive rods and other drilling tools.

The technical parameters of the HGY-200 drilling rig:


Type	HGY-200 Drilling Rig
Drilling depth(m)	200
Drilling rod diameter(mm)	Φ50/Φ42/AW/BW/AWJ/BWJ
Head angle range	360°
Cylinder stroke(mm)	360
Spindle speed(r/min)	Positive rotation rate: 60150240340550830 Reverse rotation rate: 3585135195330480
Spindle hole diameter(mm)	Φ63 or Φ95
Spindle output torque(N.M)	1700
Spindle stroke(mm)	500
Spindle driving force max.(KN)	37
Spindle lifting power max.(KN)	50
Lifting speed (m/s)	0.62.33.4
Single rope lifting power(KN)	20
Steel wire rope diameter(mm)	Φ11
Mode of chuck	hydraulic chuck or ball-type chuck
Weight(power unit excepted)(kg)	750
Dimensions(LxWxH)(mm)	1860x800x1400
Diesel engine	ZS1110(14.7KW)
Electric motor	Y160L-4(15KW)
