• Model NO.：30102T5114-66
• Bit Type：Drill Bit
• Drilling Way：Impactor
• Type：Drill Bit
• Applicable Industries：: Construction Works, Energy & Mining
• Key Word：Button Bit
• Machine Type：Drilling Tool
• Color：Red or Customize
• Angle：35°
• Button Shape：Spherical , Ballistic
• Rock Class：Soft, Medium and Hard
• Application：Rocking
• Processing Type：Machined
• Name：Maxdrill T51 Button Bit
• Part Number：30102t5114-66
• Diameter：102mm
• Transport Package：Carton&Plywood Pallet
• Specification：Dia.: 33MM-258MM
• Trademark：MAXDRILL
• Origin：China
• HS Code：82071300
• Production Capacity：100000

TypeDimensionsFlushing holesButtons(mm)Angle ClassPart NomminFront No SizeGauge No SizeFront No SizeGauge No SizeStandard893 1/22x122x76x128x1435°H3089T5114-66Standard10242x14-6x138x1435°H30102T5114-66Flat1154 1/24x13-6x148x1635°H30115T51F14-66Drop Center893 1/24x10-6x128x1435°M3089T5114D-66Drop Center10244x11-6x138x1435°M30102T5114D-66Drop Center1154 1/24x13-6x148x1635°M30115T5114D-66Standard12753x13-10x149x1635°H30127T5119-66Drop Center12753x13-9x149x1435°M30127T5118D-66Retract12753x13-9x149x1635°H30127T5118R-66Flat+retract893 1/22x112x86x128x1435°H3089T51F14R-66Flat+retract10244x11-6x138x1435°H30102T51F14R-66Flat+retract1154 1/24x13-6x148x1635°H30115T51F14R-66Drop+retract893 1/24x10-6x128x1435°M3089T5114DR-66Drop+retract10244x11-6x138x1435°M30102T5114DR-66Drop+retract1154 1/24x13-6x148x1635°M30115T5114DR-66Drop+retract12753x13-9x149x1435°M30127T5118DR-66Reaming tools15265x102x102x1420x1435°-30152T5122KD-66

Remarks:
Hemispherical-66(Usually for very hard rocks)
Ballistic-65(Ususally for medium hard rocks)
Semiballistic-64(Usually for medium hard rocks)
Conical-67(Usually for soft rocks)

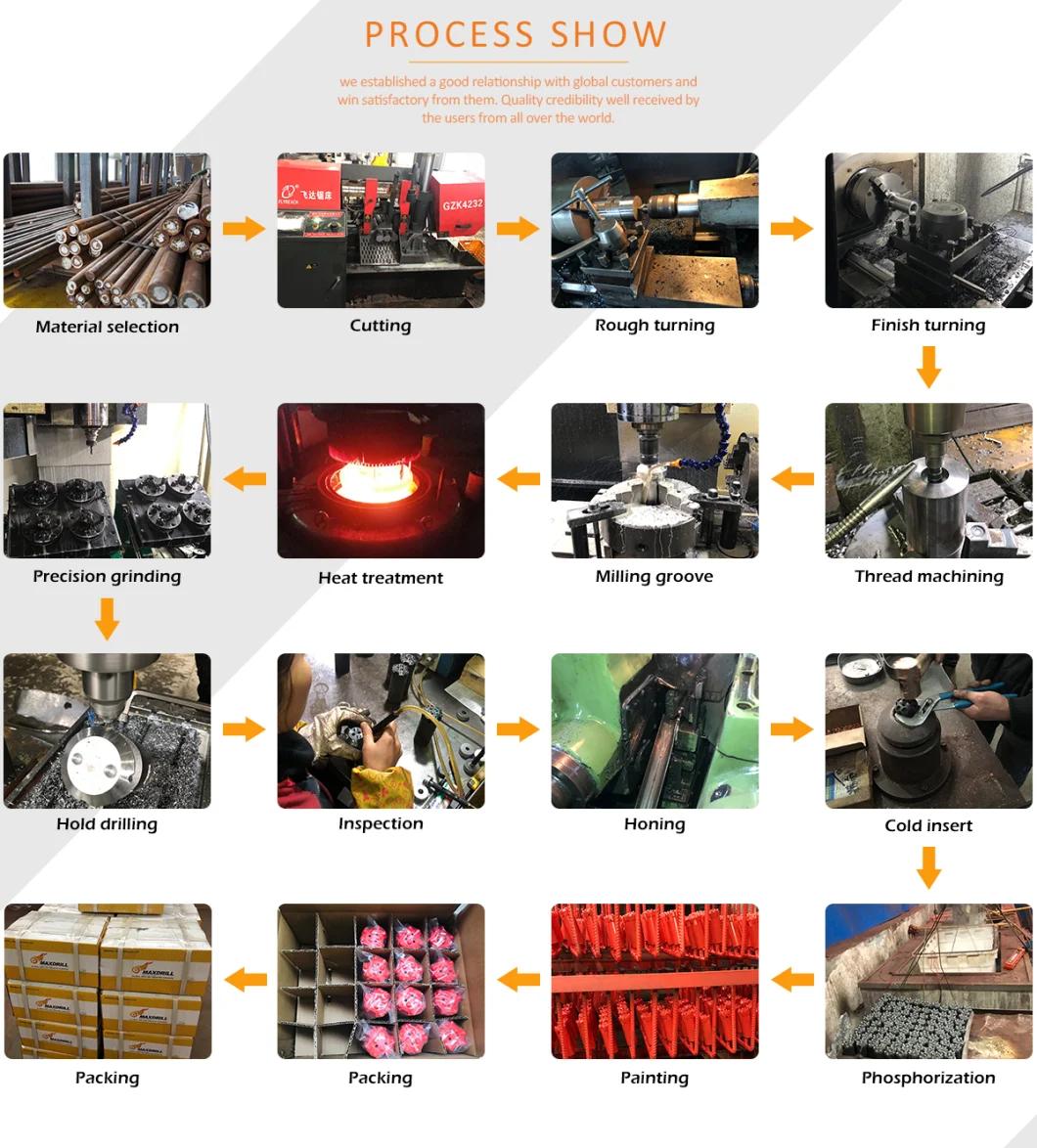

Product Process:


Packing Show:



Certificate Show:

Exhibition:



Wide Application:

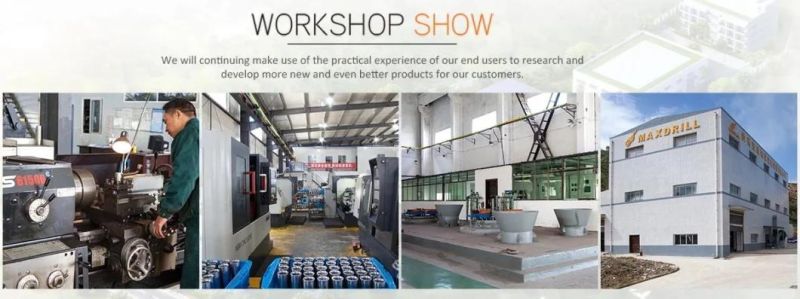

Workshop show:


FAQ:
The information you may like to know before order:

1. Methods of Payment:

  T/T (Telegraphic Transfer) or Western Union or L/C at sight

2. Handling time for an order

  Based on order quantity, normally it takes 25 days for production.

  Only 2 or 3 days if we have stock on your request size.

3. Shipping way

  Sample order: we suggest Courier express like DHL/UPS/TNT/FEDEX or by air

  Bulk order: we suggest by air or by sea.

4. Quality Control

  We have our own experienced QC.

  There will be strict inspection and testing for every order before shipping out.

5. After Services:

  a. Our sales team will response for your question within 24 hours (Holidays Excluded)

  b. Technical Support will be available in any time

  c. Free replacement will provide once the failure confirmed caused by our product quality
