• Model NO.：HPD20
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Weight：30kg
• Transport Package：Seaworthy Packing
• Specification：390X360X1200MM
• Origin：China
• HS Code：84304900
• Production Capacity：100sets,Week

Basic Info.

Model NO. HPD20 Bit Type Diamond Bit Drilling Way Rotary Weight 30kg Transport Package Seaworthy Packing Specification 390X360X1200MM Origin China HS Code 84304900 Production Capacity 100sets/Week

Product Description

Small Portable Geo-technical and Mining Exploration Handheld Drill Rig

I. Rig Introduction:

HPD small portable (bagpack handheld) rigs are small and portable sampling drilling rigs, with drilling depth 10-30m in different borehole diameters.
It is mainly suitable for mountains, traffic and mining, energy inconvenient places. It can not only do the sampling work, but also greatly reduce the destruction of vegetation and protect the environment. The use of this rig for sampling can replace traditional manual excavation, trenching and well exploration sampling. It is widely used in geological prospecting, electric power survey, traffic detection, invert lining sampling, geological disaster survey, professional academic research and other fields

II. Technical Specification

MODEL	50	25	20
Installation Type	Rig Stand Platform	Rig Stand Platform	Both Handheld and Rig Stand Platform
Drill Borehole Dia.	75MM	46MM	38MM
Drill Borehole Depth	30M	25M	20M
Drill Rod Dia.	42MM or 30MM	30MM	25MM
Roatation Speed (Max. Power)	353RPM(Low) / 740RPM(High)	454RPM(Low) / 963RPM(High)	1660RPM
Roatation Speed (Max. Torque)	255RPM(Low) / 535RPM(High)	228RPM(Low) / 695RPM(High)	1200RPM
Max. Torque	180N.M (Low Speed)	127N.M (Low Speed)	75N.M
Power	6KW, 3600RPM	4KW, 3600RPM	3KW, 3600RPM
Engine Type	Diesel or Petrol	Diesel or Petrol	Diesel or Petrol
Dimension	680X1200X1900MM	740X530X1600MM	390X360X1200MM
Weight	165KG	60KG	30KG

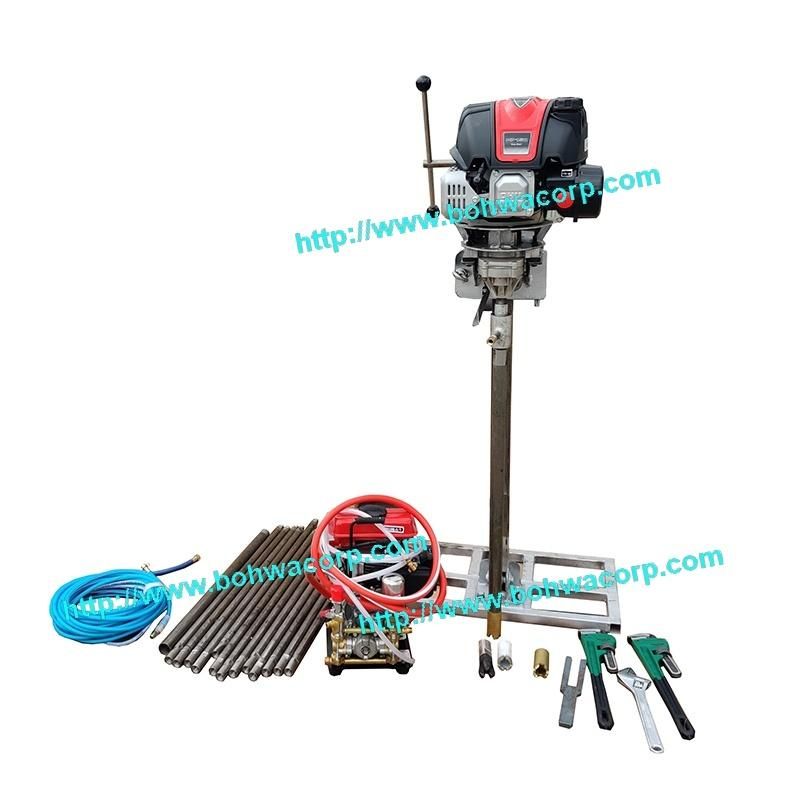

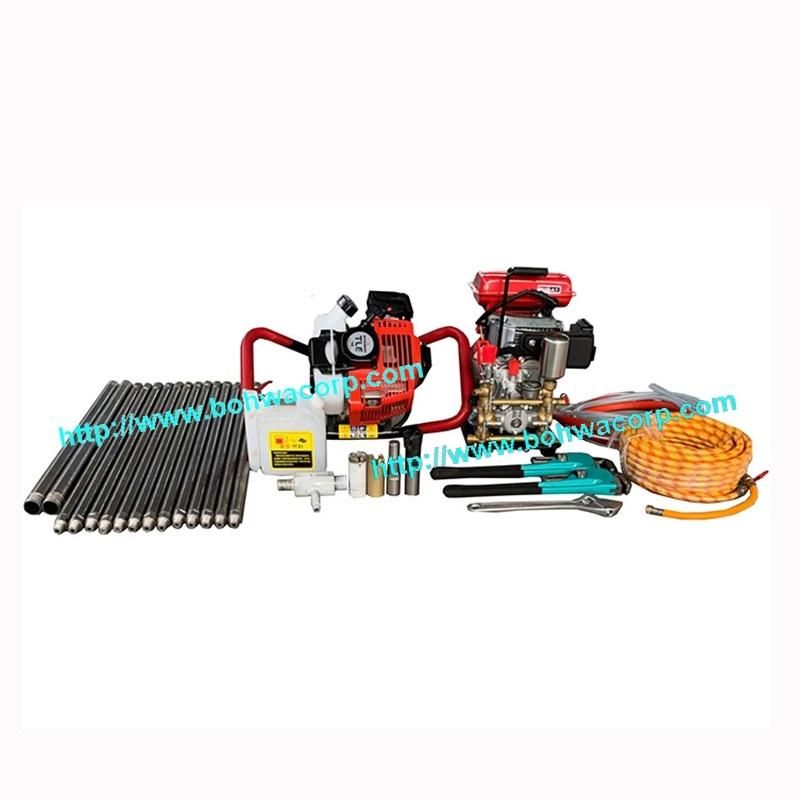

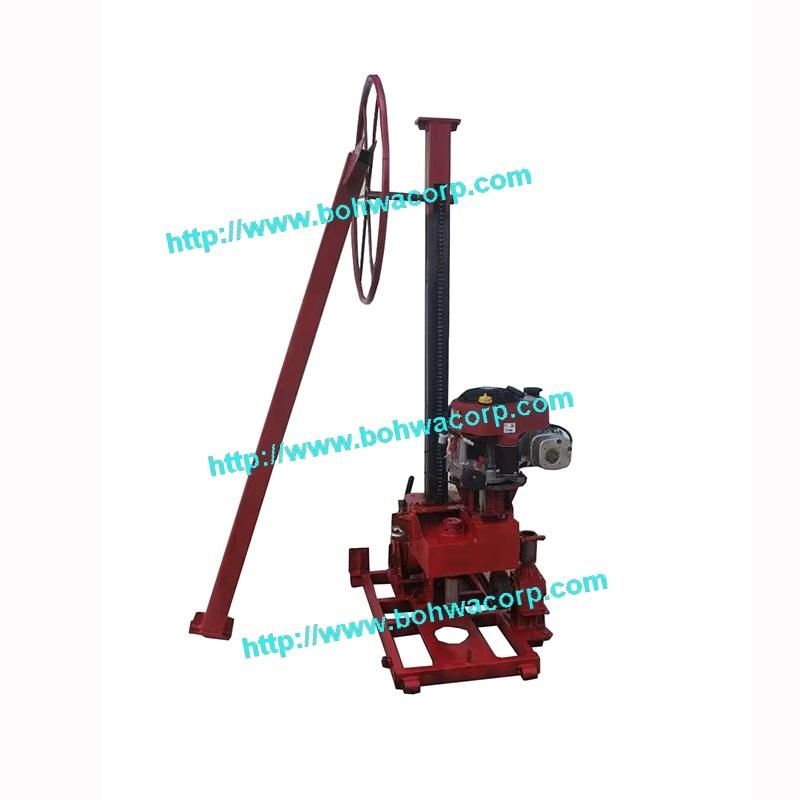

III. Machine Photos
