• Model NO.：DR-160
• Type：Crawler
• After-Sales Service Provided：No Overseas Service Provided
• Color：Customized
• Maximum Torque of Power Head：160kn.M
• Depth：40m
• Engine：Cummins
• Application：Pile Driving
• Drill Rod Type：Kelly Bar
• Machine Weight：35t
• Drilling Diameter：500-1800mm
• Drill Tools：500-1500mm Drill Bit
• Drill Bit：Customzed
• Chassis：Crawler
• Chassis Length：4800mm
• Track Width：600mm
• Power Head Speed：10-50rpm
• Transport Package：According to The Customer′s Requirements
• Specification：13000*2800*3550
• Trademark：dingli
• Origin：Shandong, China (Mainland)
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-160 Type Crawler After-Sales Service Provided No Overseas Service Provided Color Customized Maximum Torque of Power Head 160kn.M Depth 40m Engine Cummins Application Pile Driving Drill Rod Type Kelly Bar Machine Weight 35t Drilling Diameter 500-1800mm Drill Tools 500-1500mm Drill Bit Drill Bit Customzed Chassis Crawler Chassis Length 4800mm Track Width 600mm Power Head Speed 10-50rpm Transport Package According to The Customer′s Requirements Specification 13000*2800*3550 Trademark dingli Origin Shandong, China (Mainland) HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description



Product Details
It is a pile driver equipped with a retractable crawler chassis. Each chassis crawler is controlled by an independent two-way joystick, and it is used in combination with throttle boost and low-speed switching mode. The left and right crawler tracks can be moved and reversed at the same time, that is, the whole vehicle can turn around 180 degrees in situ. The drilling depth of the drill can reach 40M and the drilling diameter is 500-1800 mm. The company is a production research and development enterprise and supports OEM customization of such products



Parameter

Product Type	DR-160
Chassis length(mm)	5100
Track width(mm)	6700
Overall height(M)	3.95
Machine weight(t)	36
Maximum drilling depth(M)	45
Drilling diameter(mm)	600-1800
Engine rated power(KW/rpm)	191KW
Maximum torque of power head(N.m)	160000(optionl)
Power head speed rpm	50-70
Power head can be customized	YES
Drill mast	±5
Pitch angle	5
Maximum travel speed of chassis(KM/h)	4
Maximum creep degree of chassis	30
Maximum travel torque(N.m)	61000
Working state width(mm)	3300
Transport status width(mm)	3000
Transport status height(mm)	3950

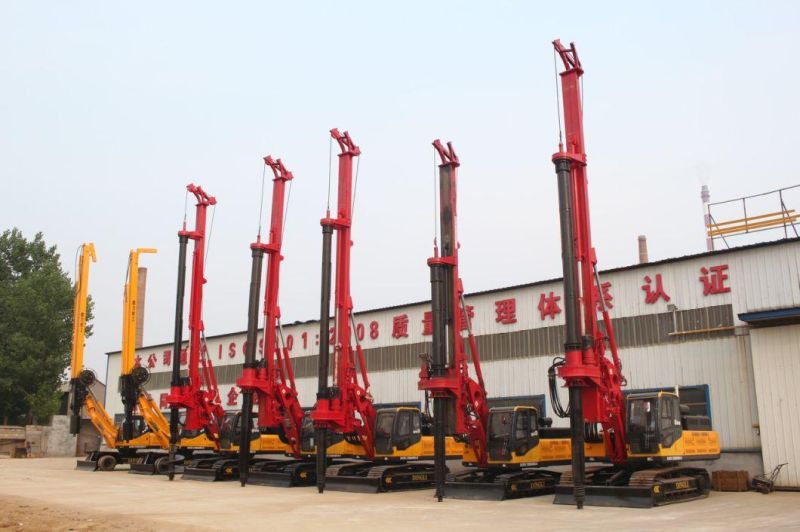

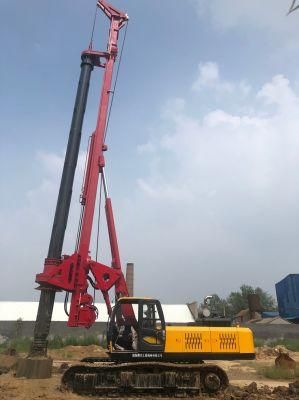

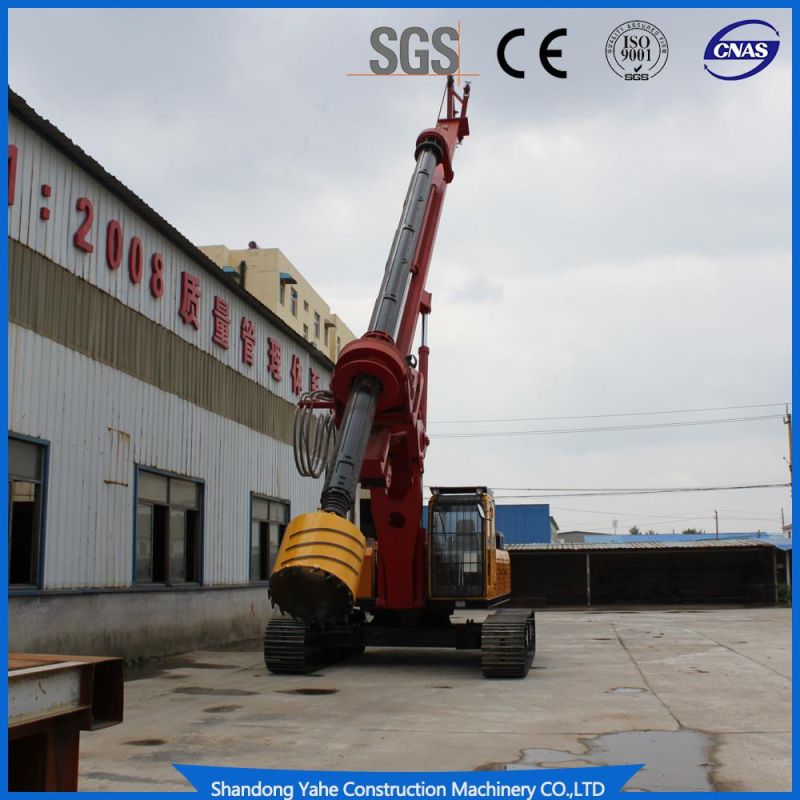

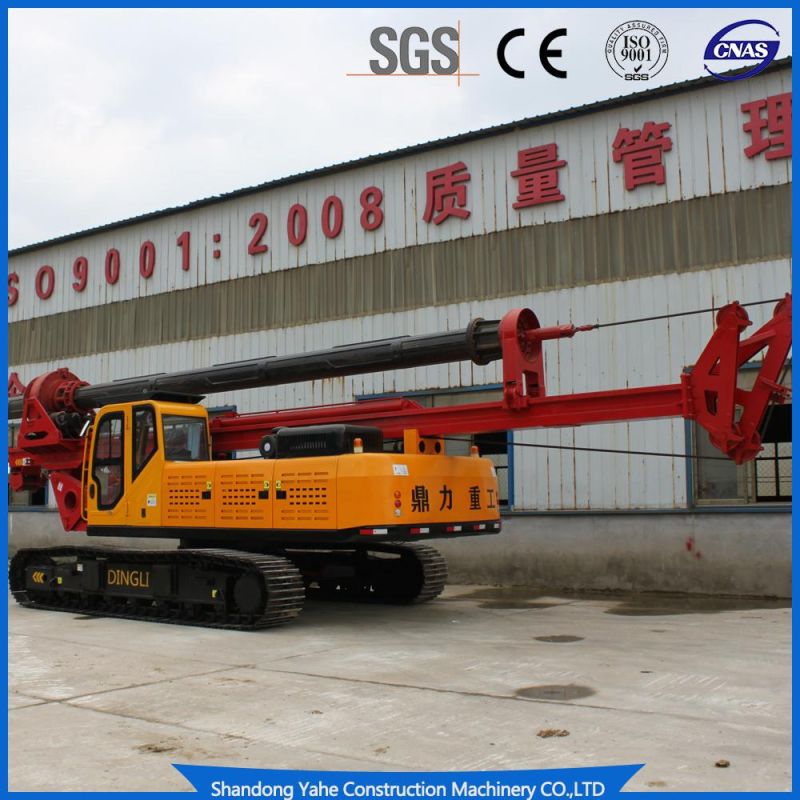

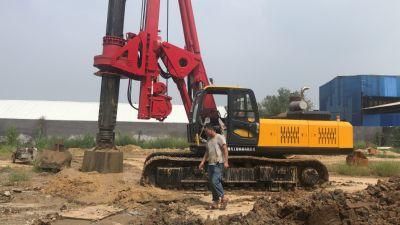

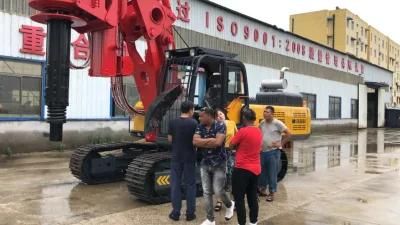

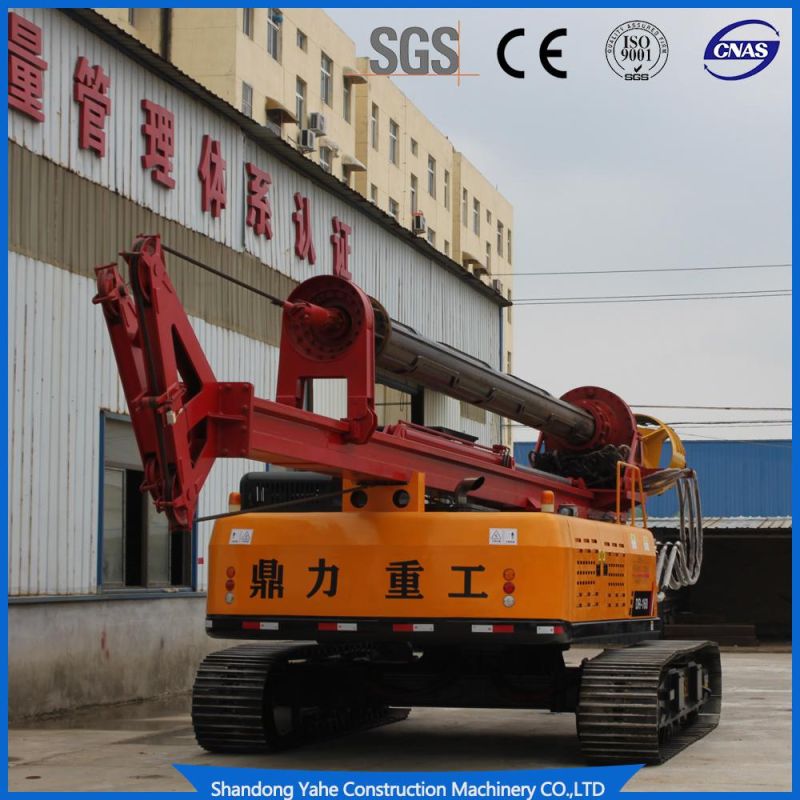

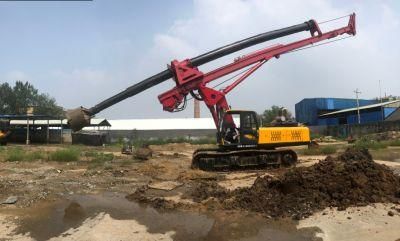

Machine Photos





Certification

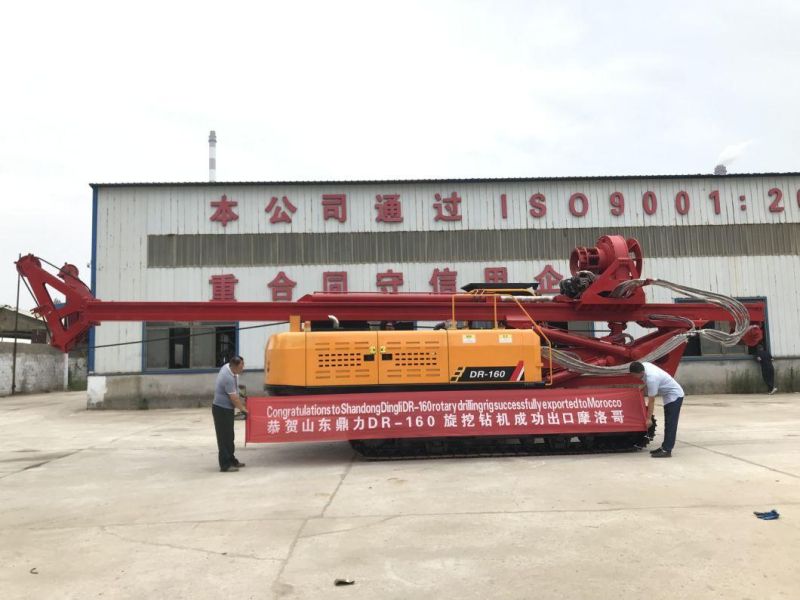

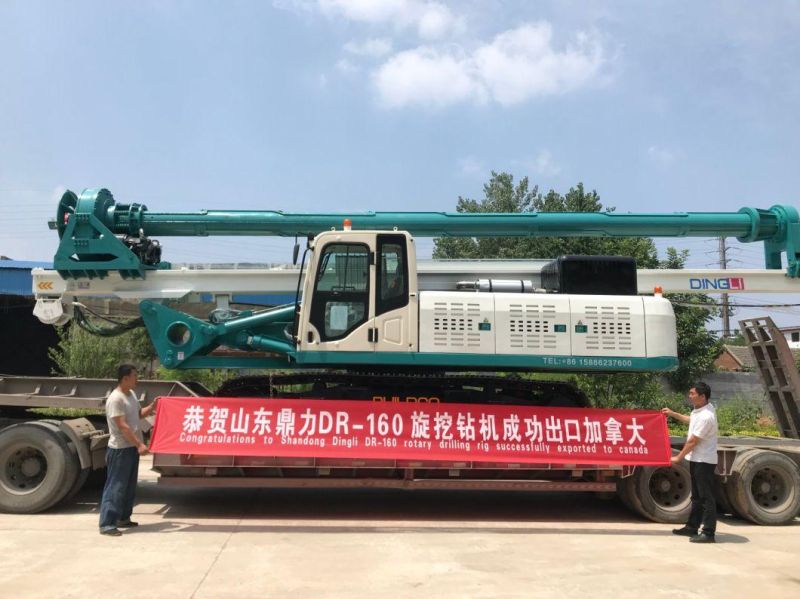

Loding picture




Company profile

     Shandong Yahe Construction Machinery has been devoted to the development and improvement of rotary drilling rigs for many years, and has passed the CE certification of the European Union. It is widely used in the construction projects of urbanization, metro, viaduct, high-rise buildings, residential buildings and other fields. Rotary drilling rig is highly praised by customers at home and abroad for its high construction efficiency, energy saving, environmental protection and reliable performance. The equipment has been exported to more than 10 countries and regions overseas, such as Australia, Saudi Arabia, Myanmar, Bangladesh and Sudan, and has become a pile foundation facility serving global engineering construction and "new urbanization". Optimum equipment for engineering.


 FAQ


1.Q: Are you a manufacturer?

A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.

4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

A: Yes, price depends on different quantity, different quantity will give you different price
