• Model NO.：WD-50M
• Bit Type：Diamond Bit
• Drilling Way：Rotary
• Type：Trailer or Crawler Chassis
• Diamond Core Drilling Lifting Force：300kg
• Diamond Core Drilling Angle：90 Degrees
• Diamond Core Drilling Pipe Diameter：42mm
• Recommend Drill Pipe Length：0.75m
• Diesel Engine Power：5.7kw
• The Heaviest Part of Machine：70kg
• Transport Package：Wooden Case
• Specification：1400mmx600mmx1600mm
• Trademark：Bohwa
• Origin：China
• HS Code：8430490000
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. WD-50M Bit Type Diamond Bit Drilling Way Rotary Type Trailer or Crawler Chassis Diamond Core Drilling Lifting Force 300kg Diamond Core Drilling Angle 90 Degrees Diamond Core Drilling Pipe Diameter 42mm Recommend Drill Pipe Length 0.75m Diesel Engine Power 5.7kw The Heaviest Part of Machine 70kg Transport Package Wooden Case Specification 1400mmx600mmx1600mm Trademark Bohwa Origin China HS Code 8430490000 Production Capacity 30 Sets/Month

Product Description

Portable Engineering Piling SPT Drilling Rig Machine

(Bohwa Light Weight Drilling Rig WD50 Series)
Technical Specification for Diamond Core Drilling Man Portable Drilling Rig


Model No.	WD50	WD50M (With Drill Mast)
Drill Pipe Diameter	42mm
Drilling Hole Diameter	75mm
Drilling Depth	50 m
Kelly Bar	Dia.=50mm / L=1m
Recommend Drill Pipe Length	0.75m	2m
Drilling Angle	90°
Diesel Engine Power	5.7kW/2200rpm
Dimensions of Main Machine  (L x W x H)	1400x600x1600mm	1400x600x1200mm
Total Weight of Main Machine	300KG
The Heaviest Part of Machine	70KG
Spindle Rotary Speed	285, 570r/min
Spindle Stroke	1m
Lifting Force	300KG
Feeding Force	200KG

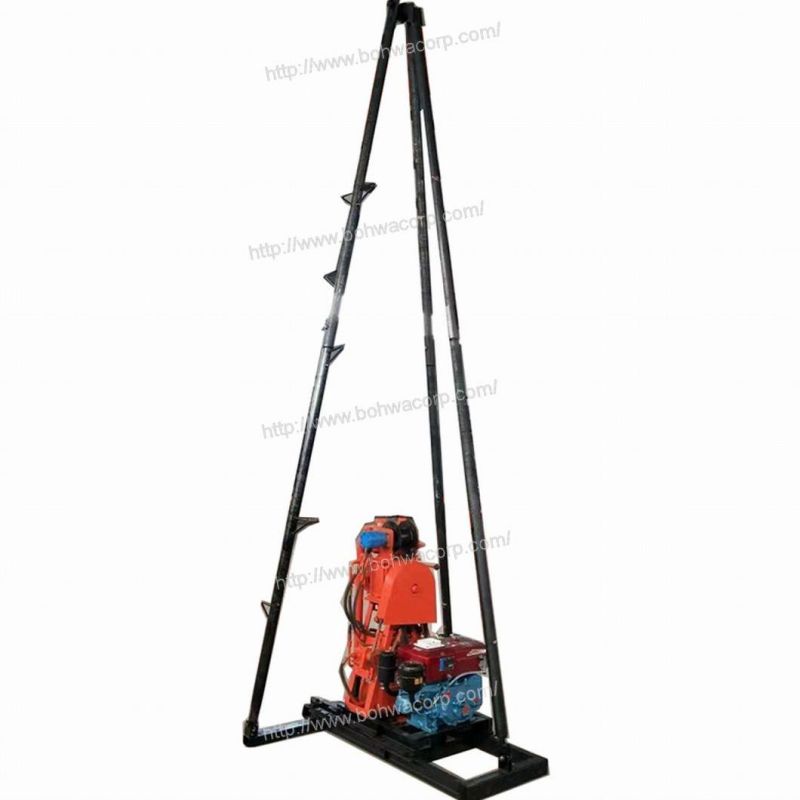

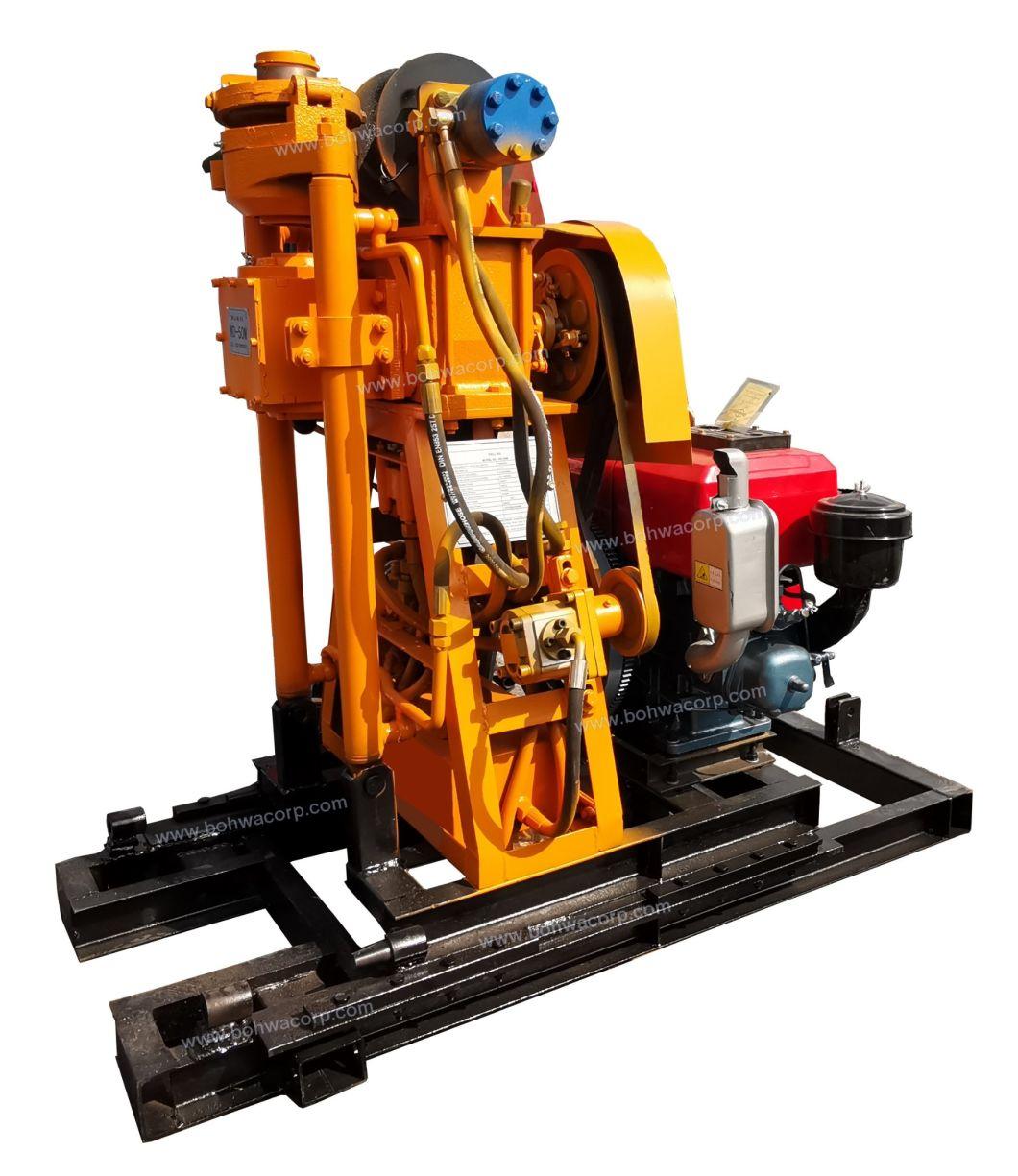

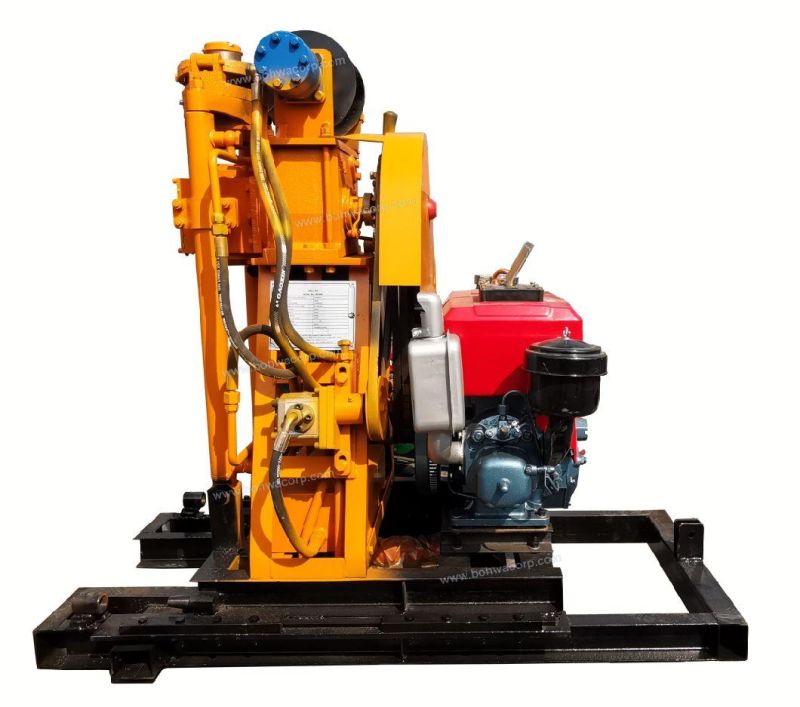

Photos for Diamond Core Drilling Man Portable Drilling Rig

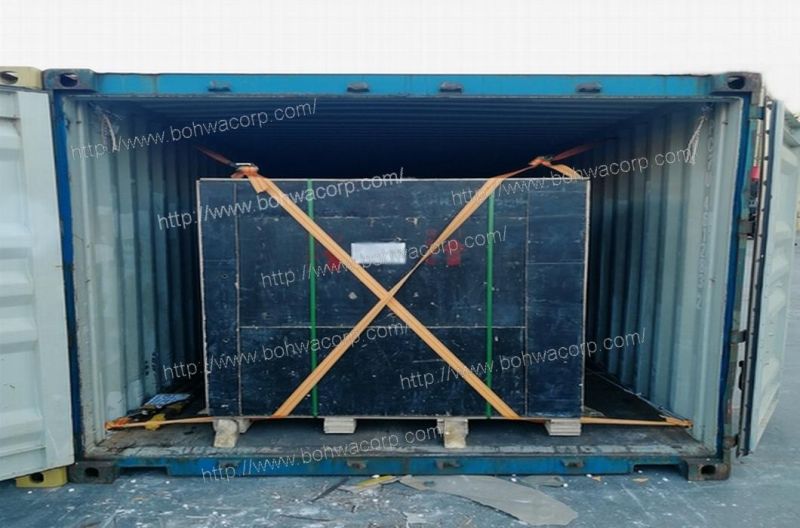

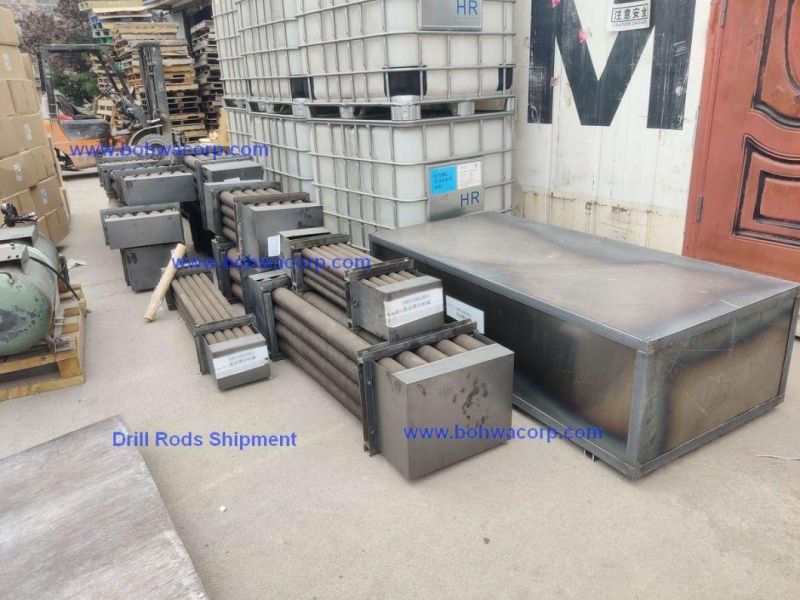

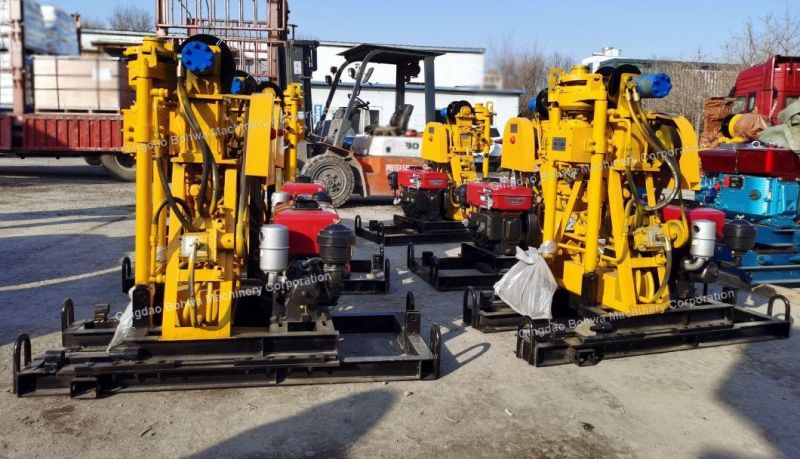

Photos for Shipment

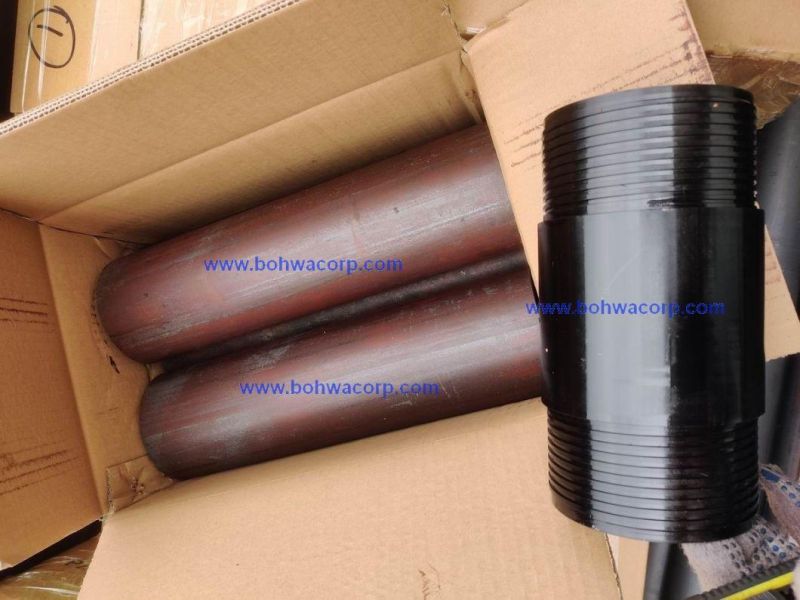

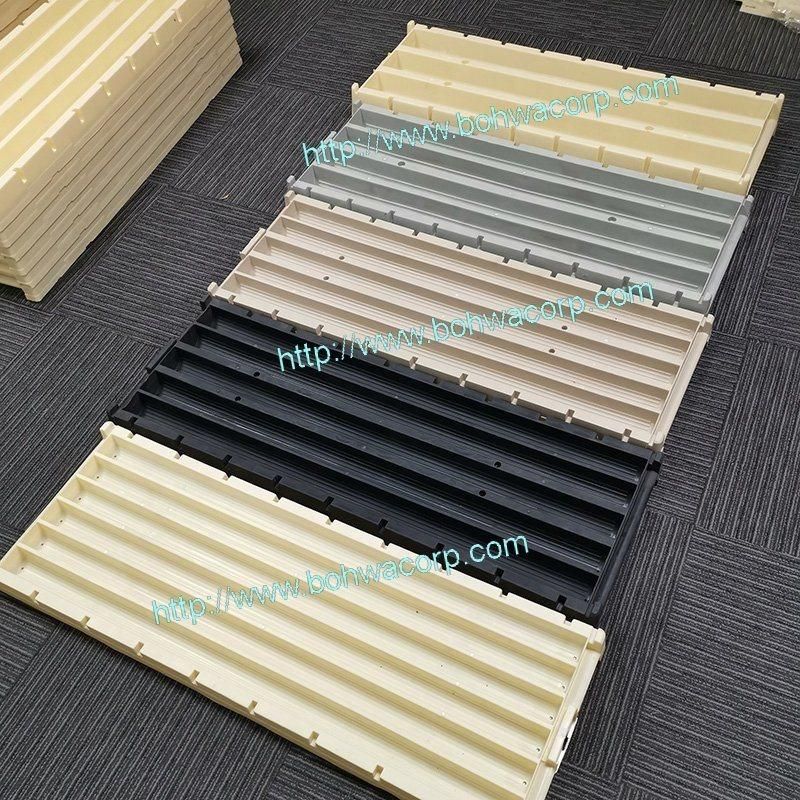

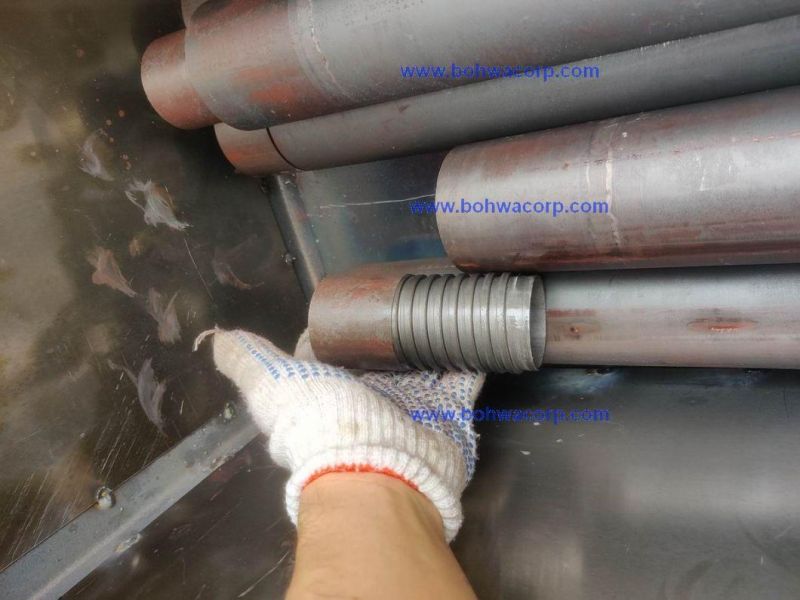

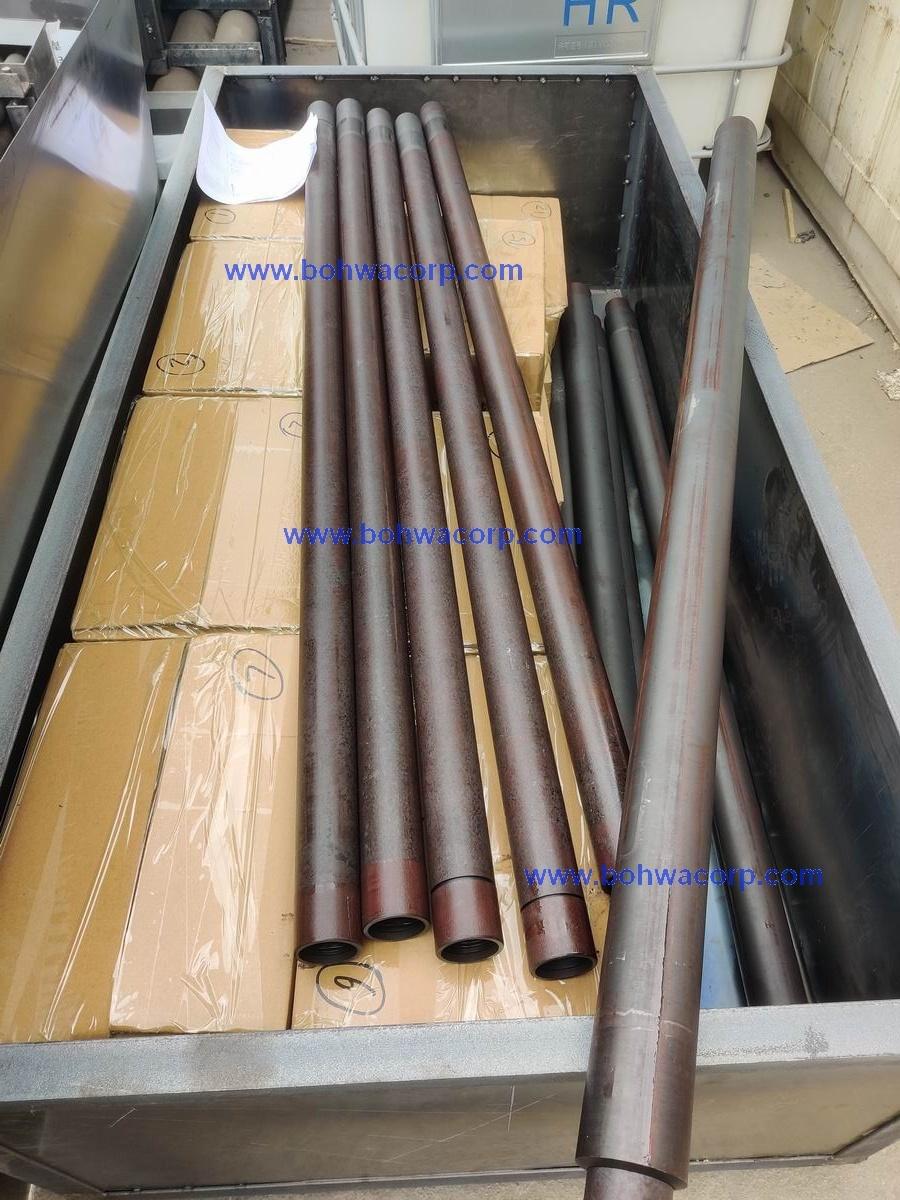

Related Drill Tools for Diamond Core Drilling Man Portable Drilling Rig
