Jdl-400 Crawler Mounted Multi-Function Top Drive Mud Rotary and Air DTH Hammer Drilling Rig

Changsha Miracleland Import & Export Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：115-350mm
  • Drill Hole Depth：400
  • Bit Type：DTH Bit and Diamond Core Bit

Base Info

  • Model NO.：JDL-400
  • Drilling Way：Rotary
  • Type：Crawler
  • Feature：Mud and Air Drilling
  • Transport Package：Plastic Film, or According to Cus
  • Specification：400
  • Trademark：JDL
  • Origin：Changsha, Hunan, China
  • HS Code：8430412900
  • Production Capacity：10 Sets,Month

Description

Mechanical top head rotation,hydraulic feeding,work with mud pump or DTH hammerEngine modelYN33GBZYN38GBZRated power/speed (kw/rpm)65/240076/2400Hydraulic winch (ton) (optional)1.51.5 Mechanical winch (ton)4.54.5Drill pipe dia.(mm) (optional)Φ76/Φ89/Φ102Φ76/Φ89/Φ102Drill pipe length (mm)30003000Air consumption (m3/min)16-3516-35 Air pressure (bar) 10.5-24.610.5-24.6 Walking speed (km/h)0-20-2 Grade ability (°)2020Transport dimension (mm)5500*1600*25005600*2120*2650Working dimension (mm)3680*1600*62803800*3250*6700Weight (kg)50008000

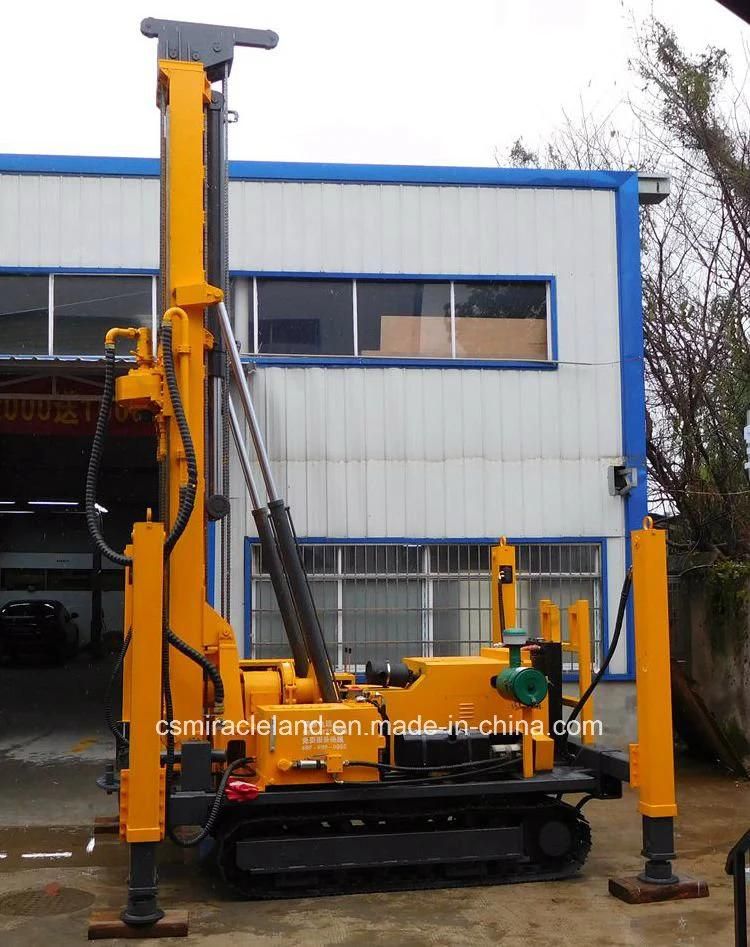

Detailed Images

Jdl-400 Crawler Mounted Multi-Function Top Drive Mud Rotary and Air DTH Hammer Drilling Rig
