Drilling Rig

Home > Product > Mine Drilling Rig

35 M 90-140 mm Jumbo Machine Price Mining Drilling Rig

Quzhou Zhongdu Machinery Technology Co., Ltd.
  • After-sales Service：1 Year
  • Condition：New
  • Drill Hole Diameter：90-140 mm
  • Drill Hole Depth：35 M
  • Bit Type：Diamond Bit
  • Drilling Way：Compound

Base Info

  • Model NO.：ZDKH712
  • Drill Type：Down The Hole
  • Diesel Engine：Yu Chai
  • Rated Power：78 Kw
  • Drilling Hardness：F=6~20
  • Drilling Diameter：90-140mm
  • Drilling Depth：35 M
  • Suitable Drilling Rod：64mm*3m, 76mm*3m
  • Suitable DTH Hammer：3inches; 4inches;
  • Working Pressure：0.7~1.8 MPa
  • Air Consumption：10~18 M3,Min
  • Lifting Force：25 Kn
  • Travelling Speed：0~3 Km,H
  • Weight：5300 Kg
  • Dimensions：5550*2290*2600mm
  • Volume of Diesel Oil Tank：70 L
  • Transport Package：Container
  • Specification：5550*2290*2600mm
  • Origin：Zhejiang
  • Production Capacity：10PCS Per Month

Description

Overview

Product Description

Detailed Photos

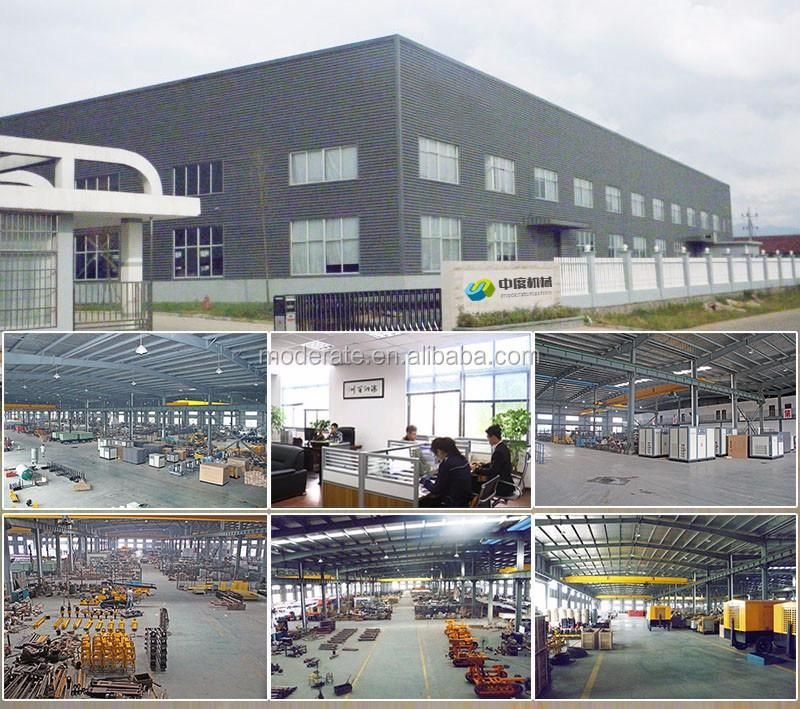

Company Profile

35 M 90-140 mm Jumbo Machine Price Mining Drilling Rig

FAQ

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our company is located in Kaixuan Road ,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Yes, of course. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.
