• Model NO.：HDD-200
• Type：Crawler
• Max. Push & Pullback Force：2100kn
• Crane on Rig：3.2t
• Engine Power：390kw
• Mud Pump Max Flow Rate：1500L,Min
• Dimensions (L*W*H)：13*2.7*3m
• Traveling Speed：2-4km,H
• Weight：36t
• Transport Package：Standard Exporting Packing
• Specification：45ton force
• Trademark：Glorytek
• Origin：China
• Production Capacity：10 Sets,Month

Basic Info.

Model NO. HDD-200 Type Crawler Max. Push & Pullback Force 2100kn Crane on Rig 3.2t Engine Power 390kw Mud Pump Max Flow Rate 1500L/Min Dimensions (L*W*H) 13*2.7*3m Traveling Speed 2-4km/H Weight 36t Transport Package Standard Exporting Packing Specification 45ton force Trademark Glorytek Origin China Production Capacity 10 Sets/Month

Product Description

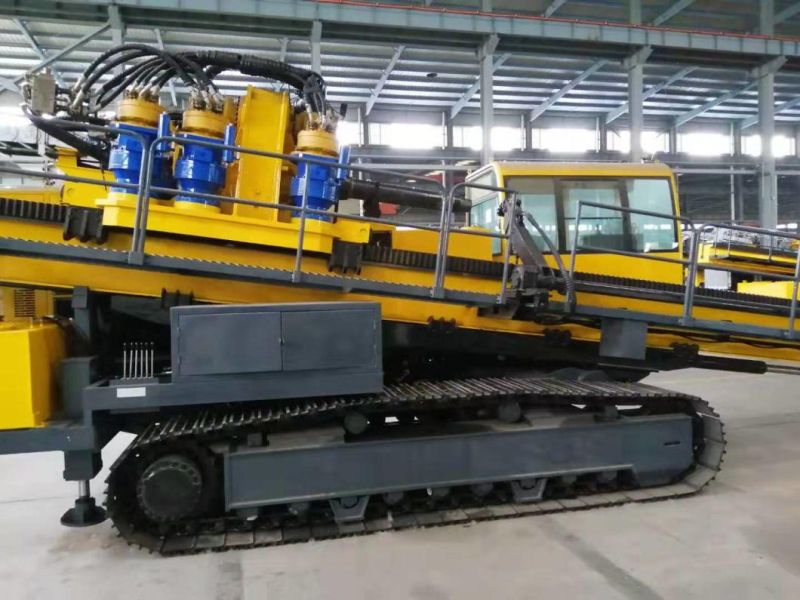

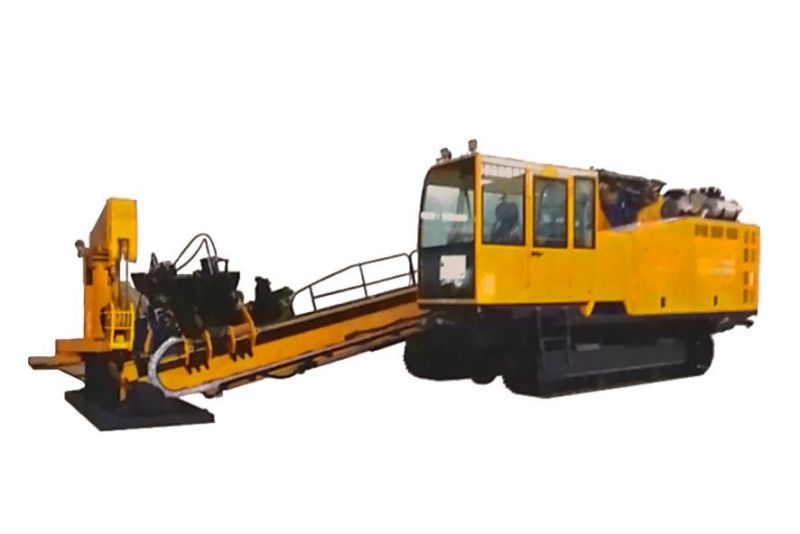

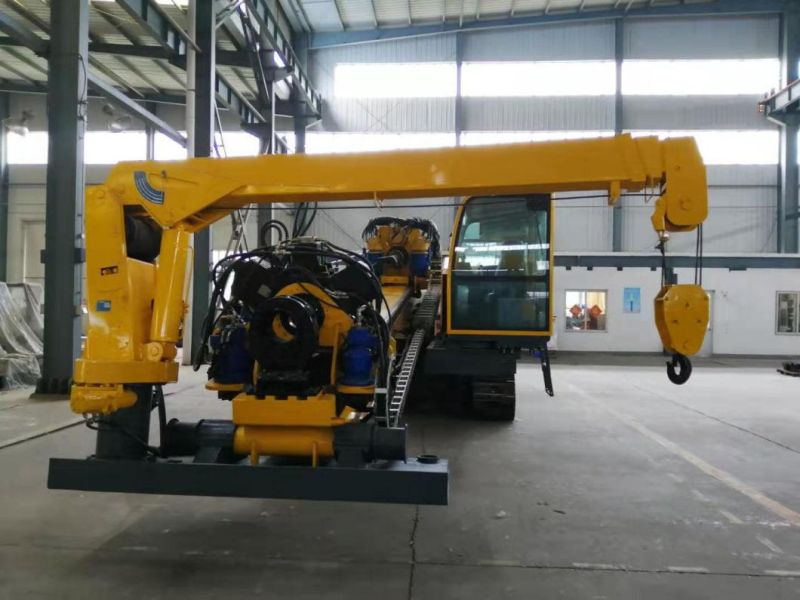

HDD Machine Horizontal Directional Drilling Rig for sale






Main performance characteristics

1. Adopting first-class hydraulic products in the world and the hydraulic circuit loading sensing system cooperating each other, and with electric-hydraulic proportional control in high efficiency.

2. Adopting electrical and manual control of operation valve group, imported from USA,  the main Sauer control valve is very reliable.

3. Pointers and electronic devices are adopted together for data showing of the rig, rig pressure, torque, rotation speed and push-pull capacities are clear at a glance.

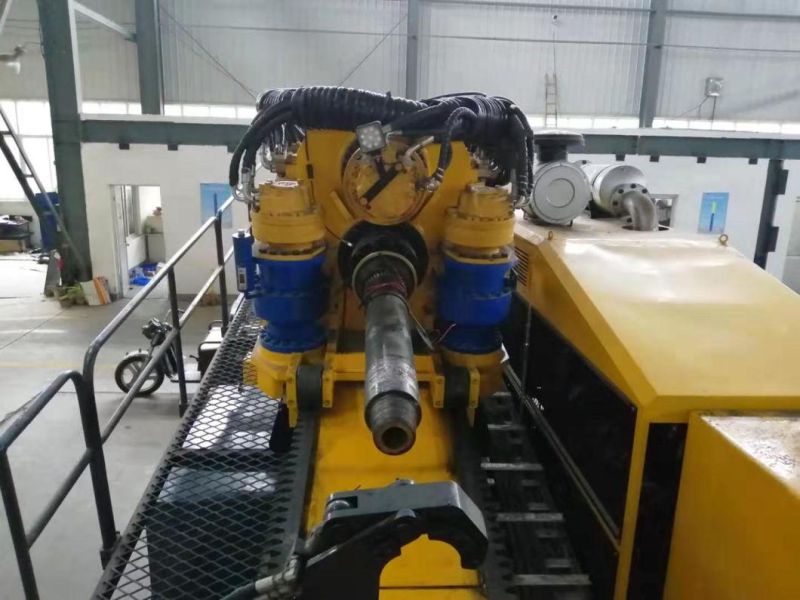

 4. Adopting two low speed and large torque motor made by Poclain Hydraulics Industrie SAS, France for the rotation of drill head; set with 2 gear stepless speed adjustment function, floating of spindle is helpful for protection of rod thread. 5. Adopting six motors with reducer driving for drill head feeding/ full and adopting rack and pinion transmission structure, the rig is in high stability and efficiency. 6. Installed with operation cabin equipped with air conditioner, the rig is easy to operate in a comfortable working environment. 7. Shackles can be adjusted for the space of making jaws and breaking jaws; breaker can be centered automatically, breaking accurately, stably and reliably and gripper can move on the mast full stroke.


Specification

Engine Power	Weichai Power 390KW(2100r/min)	Crane on Rig	3.2t
Max Push/Pull Capacity	2100KN	Traveling Speed	2-4Km/h
Max Feeding/Pull Speed	I Gear. 6m/min II Gear. 12m/min III Gear. 36m/min	Max. Permissible Gradient	30°
Max Rotation Torque	60000N·m(I Gear) 30000N·m(IIGear)	Mud Pump Max Flow Rate	1500L/min
Spindle flotation Speed	0-40r/min 0-80r/min	Mud Pump Max Pressure	10MPa
Mast Penetration Angle	8-16°	Rod Size	6m
Max Making Torque	70000N·m	Dimension(L×W×H)	13×2.7×3m
Max Breaking Torque	14000N·m	Weight	36t

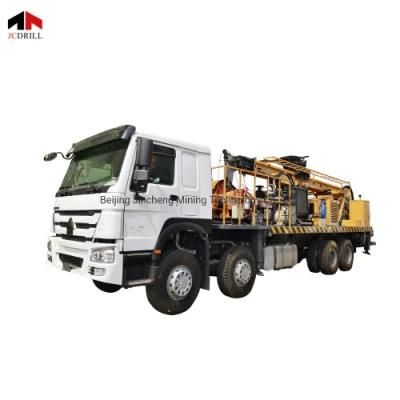

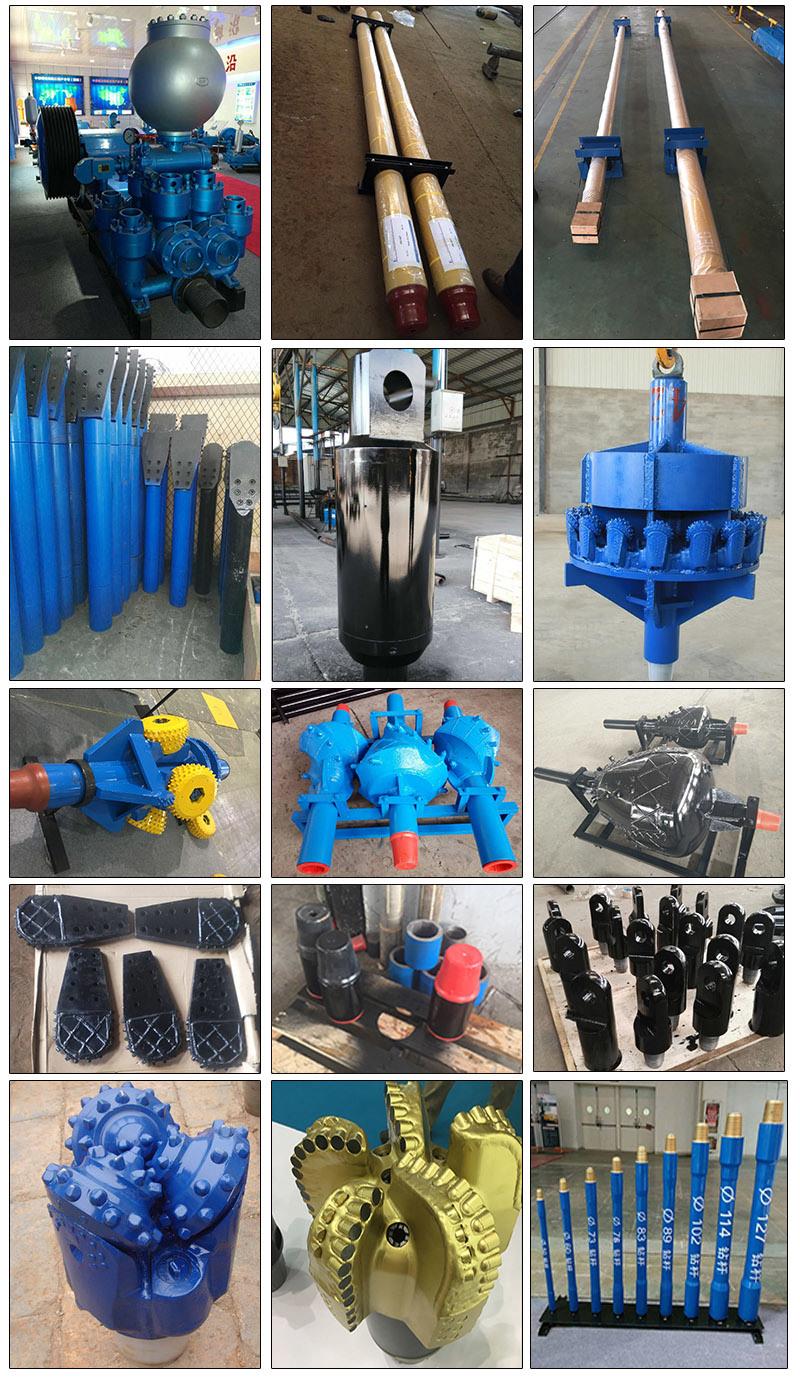

Related products:








Company Profile

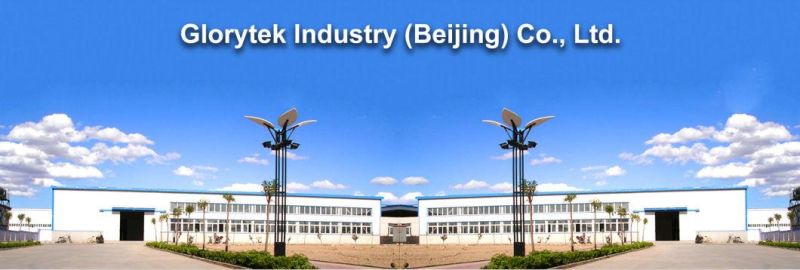

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.







FAQ

Q: How can we choose a suitable HDD drill rig?
A: We normally recommend a suitable model according to force, application.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.

Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
