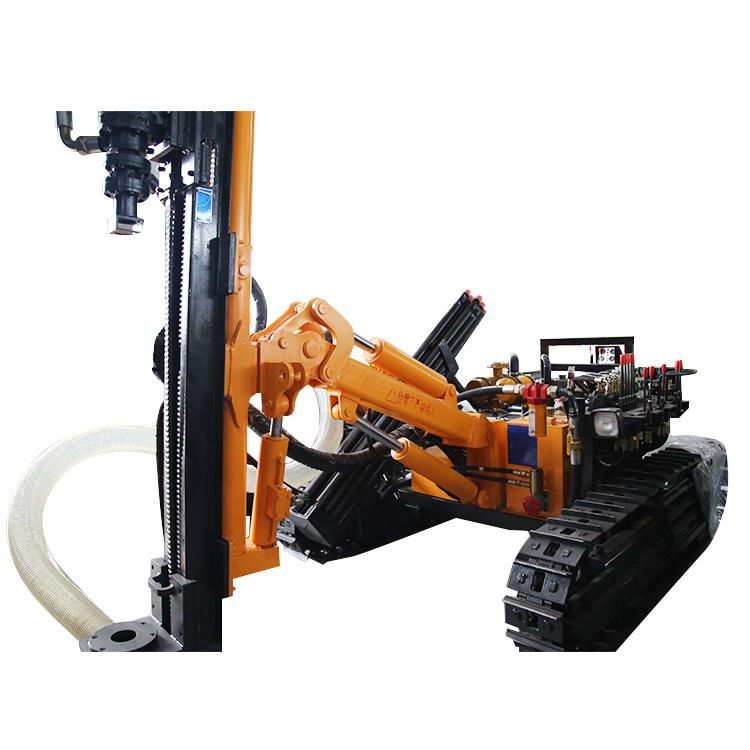

High Quality Crawler Type Hydraulic Down Hole Drilling Machine
Jining Bafang Mining Machinery Group Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Drill Hole Diameter：100-150mm
- Drill Hole Depth：<100m
- Product Name：Down Hole Drilling Machine
- Model：Ky910b
Base Info
- Model NO.：KY910B
- Drilling Diameter：80-105mm
- Drilling Depth：25m
- Walking Speed：0~2.0km,H
- Size：4100*2030*2020mm
- Host Weight：3400kg
- Ground Distance：254mm
- Tensile Length：900mm
- Climbing Ability：30degree
- Transport Package：Wooden Box
- Specification：4100*2030*2020mm
- Origin：Shandong, China (Mainland)
- Production Capacity：10,Month
Description
Drilling diameter
Φ90-Φ165mm
Drilling depth
40m
Walking speed
2km/h
Hardness of rock
f=6-20
Working pressure
1.2-2.4MPa
Blast consumption
bore diameter≤Φ115 by 11.3m3/min(1.4MPa)
bore diameter≤Φ140by 13m3/min(1.4MPa)
bore diameter≤Φ165 by 17m3/min(1.4MPa)
bore diameter≤Φ140by 21m3/min(2.4MPa)
bore diameter≤Φ165 by 25m3/min(2.4MPa)
Length of pole changing
3m
Drill arm swing angle (°)
±45
Carriage swing angle(°)
±50
Carriage pitch angle
160°
Maximum horizontal drilling height
3.37M
Dusting method(apolegamy)
wet-type,Conventional dry,hydraulic
Size (mm)
6900×2200×2100(travel position)
Climbing angle
24°
Total Power
internal combustion 56kw Electric 30KW
Weight
6100kg
