High Efficiency Rotary Drilling Rig Machine Xr150d Manufacturers Price
Newindu Construction Engineering (Shanghai) Co., Ltd.- After-sales Service：I Year Warranty
- Warranty：I Year Warranty
- Certification：ISO 9001:2000, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
Base Info
- Model NO.：XR150D
- Drill Hole Depth：30-50m
- Drilling Way：Rotary
- Type：Crawler
- Voltage：220,380V
- Rated Power：138kw
- Max. Output Torque：150kn·m
- Max. Drilling Diameter：1450mm
- Max. Drilling Depth：50m
- Max.Line Speed：65m,Min
- Max. Traveling Speed：2.0km,H
- Transport Package：Nude Packing by Roro Shipment
- Specification：13700X3050X3520
- Trademark：Newindu
- Origin：Jiangsu, China
- HS Code：8430509000
- Production Capacity：100sets,Month
Description
Main Technical Specification
Engine
Model
Rated Power
kW
138
Rotary Drive
Max. output torque
kN·m
150
Rotary speed
r/min
8~24
Max. Drilling Diameter
mm
1450
Max. Drilling Depth
m
50
Pull-Down Cylinder
Max.pull-down piston push
kN
114
Max.pull-down piston pull
kN
148
Max.pull-down piston stroke
m
3.5
Main Winch
Max.Pulling force
kN
155
Max.line speed
m/min
65
Auxiliary Winch
Max.Pulling force
kN
60
Max.line speed
m/min
70
Mast Rake
Side/forwards/backwards
±3°/5°/15°
Undercarrige
Max. traveling speed
km/h
2.0
Max.grade ability
%
40
Min. Clearance
mm
352
Track shoe width
mm
800
Distance between tracks
mm
3050~4100
Hydraulic System
Working pressure
Mpa
32
Overall Drilling Weight
t
43.5
Dimension
Working condition
mm
7700X4100X18150
Transportation condition
mm
13700X3050X3520
12800X3050X3240

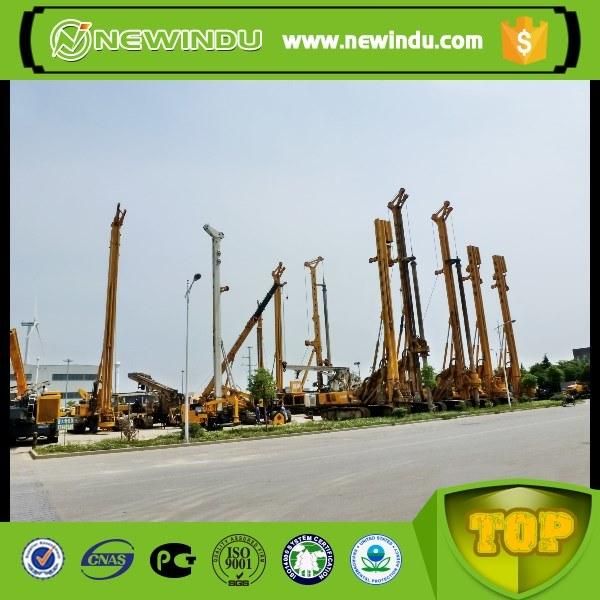

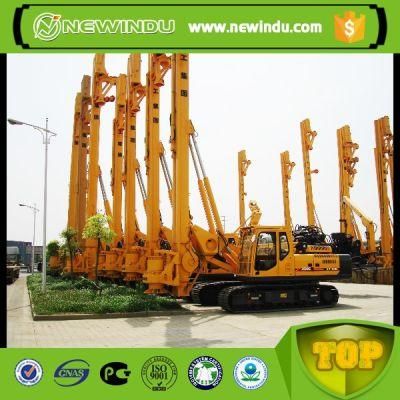

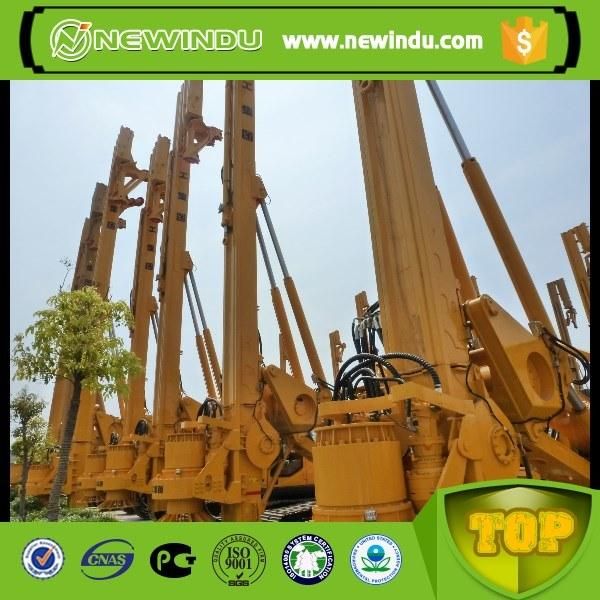

Product photos
