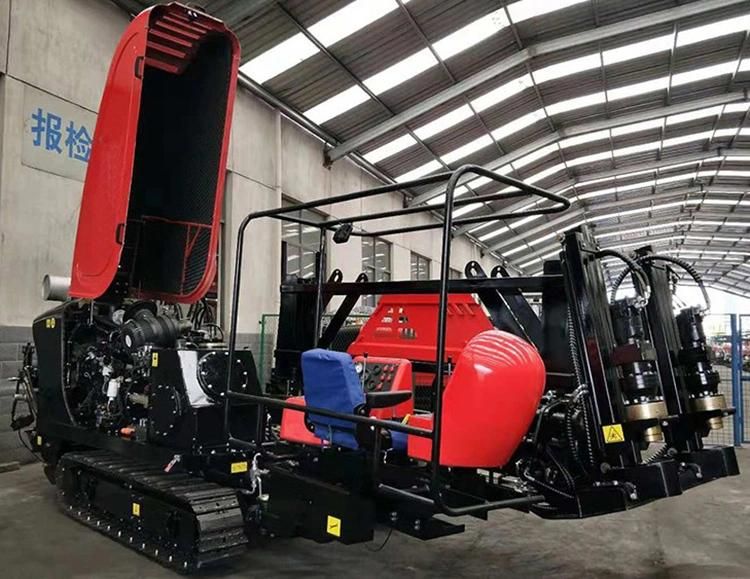

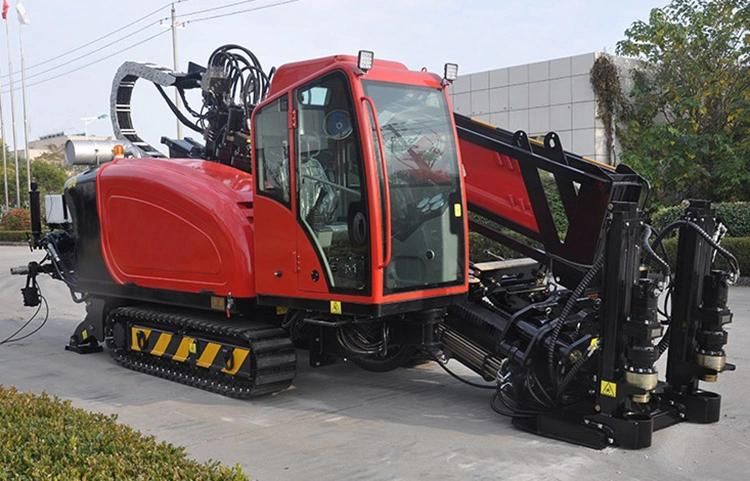

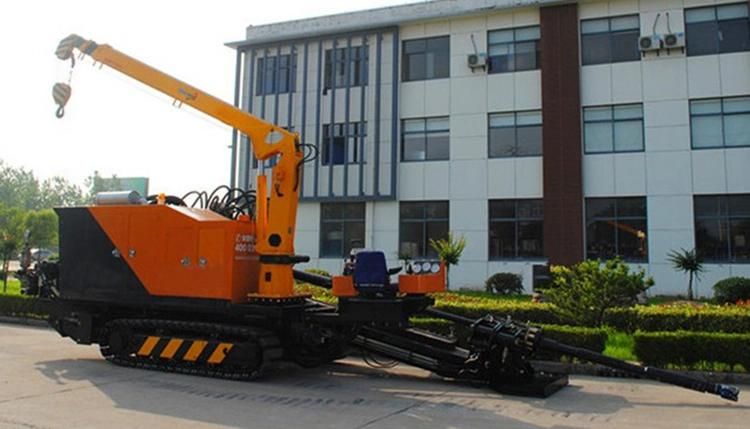

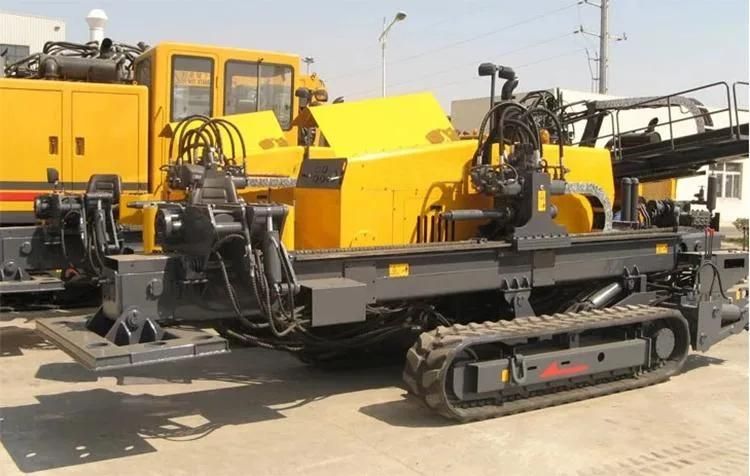

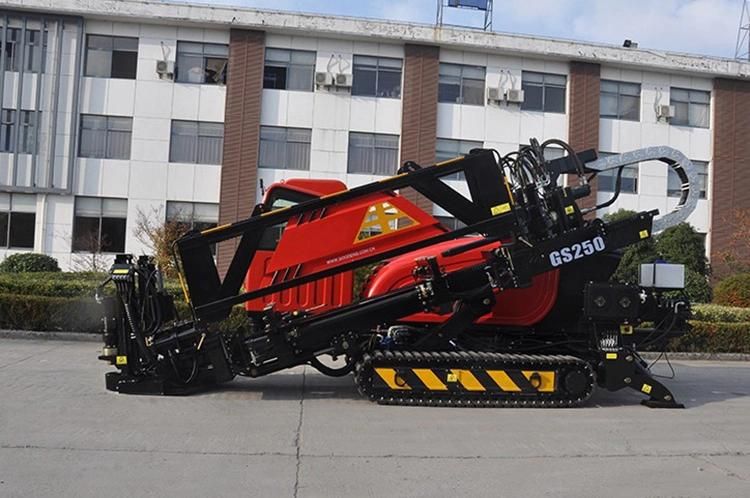

5t/13t/20t/25t/36t/42tdrilling Equipment Trenchless Horizontal Directional Drilling Machine for Cable/Oil/Gas/Electricity/Sewage HDD Machine
Henan Yugong Machinery Co., Ltd.- After-sales Service：Video Technical Support
- Warranty：1 Year
- Certification：CE
- Condition：New
- Drill Hole Diameter：>300mm
- Bit Type：Pilot Bit
Base Info
- Model NO.：YG-320
- Type：Crawler
- Transport Package：Container
- Specification：7300× 2150× 2250 mm
- Origin：Henan, China
- Production Capacity：1000 Sets,Month
Description
Product DescriptionModel YG-160A YG-180 YG-280 YG-320 YG-320A Engine rated power 100KW 97KW 160KW 140KW/160KW 160KW Push and pull Cylinder Motor Motor Cylinder Motor Maximum drag/feed force 160/100KN 180/180KN 280/280KN 320/320KN 320/320KN Maximum torque of power head 5000N.n 6000N.n 10000N.n 12000N.n 12000N.n Power head speed 0-180r/min 0-140r/min 0-120r/min 0-140r/min 0-140r/min Moving speed of power head 30m/min 20m/min 20m/min 20m/min 20m/min Maximum reaming hole diameter Φ600mm Φ600mm Φ750mm Φ800mm Φ800mm Drill rod length (single) 3m 3m 3m 3m 3m Drill pipe diameter Φ60mm Φ60mm Φ73mm Φ73mm Φ73mm Drill angle 10-23° 10-22° 10-23° 10-20° 10-20° Maximum mud flow 160L/min 250L/min 320L/min 320L/min 320L/min Maximum mud pressure 100bar 80bar 80bar 80bar 80bar Overall quality 6700kg 8500kg 12500kg 11500kg 11200kg Dimensions (length*width*height)
5700*1820*2400
mm
6400*2270*2340
mm
7100*2260*2450
mm
7100*2250*2450
mm
7662*2162*2450
mm
Feature:
1.Do not obstruct traffic, do not damage the road.
2.High precision, can be turned, the depth can be adjusted at any time, and obstacles can be avoided.

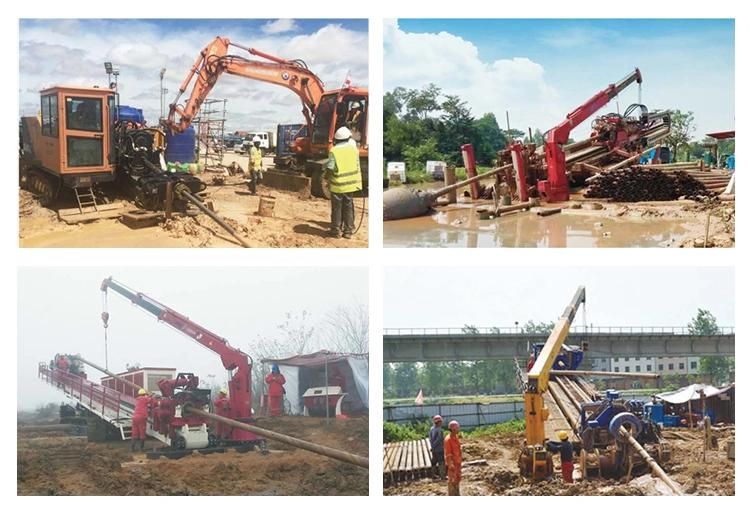

3.City construction will pass three meters, and the river will reach 6-18 meters.
4.The project period is short, the construction personnel are less, it is safer and the cost is lower.
