• Drilling Way：Impactor
• Drilling Angle：0-90(° )
• Rotator Travel：3400(mm)
• Walking Way：Crawler Walking
• Weight：6000(Kg)
• Transport Package：Wooden Box
• Trademark：ZT
• Origin：China
• Production Capacity：1000sets,Mouth

Basic Info.

Drilling Way Impactor Drilling Angle 0-90(° ) Rotator Travel 3400(mm) Walking Way Crawler Walking Weight 6000(Kg) Transport Package Wooden Box Trademark ZT Origin China Production Capacity 1000sets/Mouth

Product Description

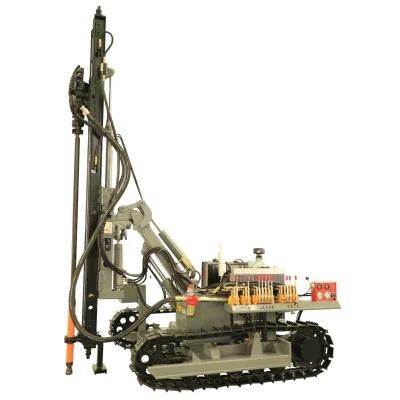

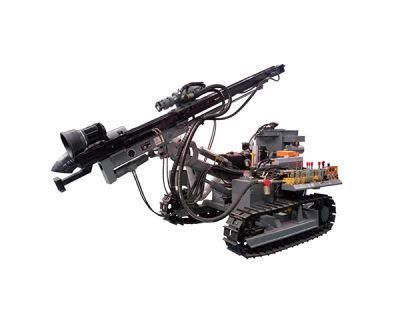

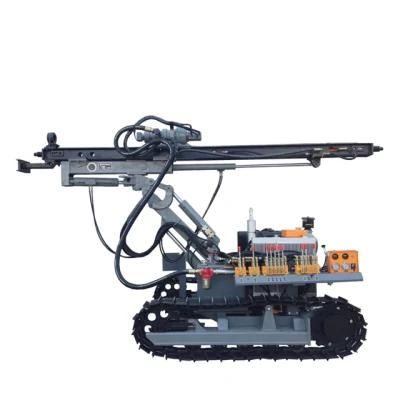

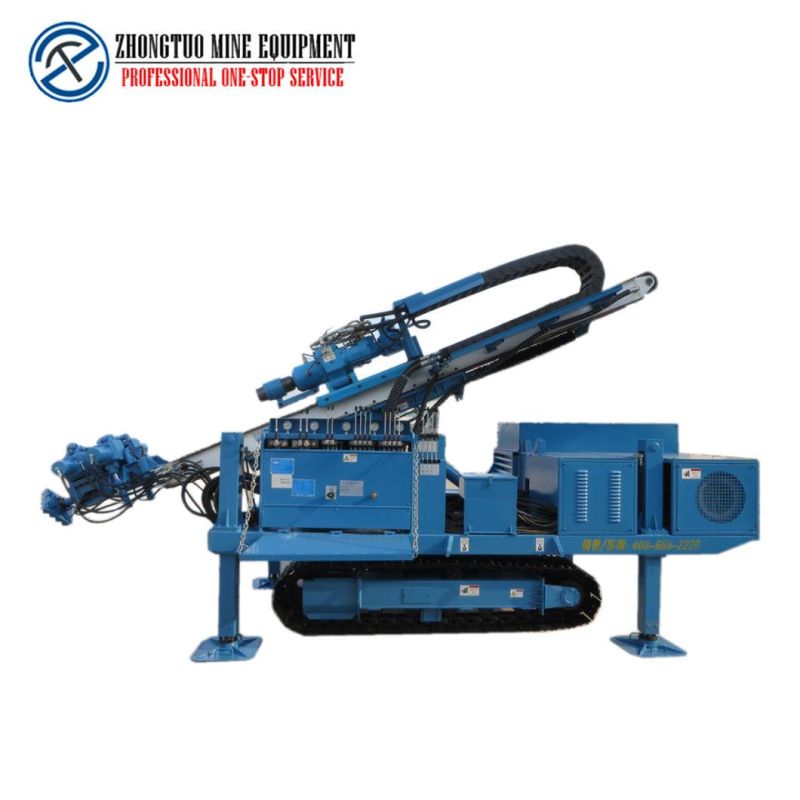

Hydraulic Anchor Crawler Drill Rig Machine for Quarry

Description:
1.full hydraulic control, instrument display, shaving convenient and flexible, greatly improving the efficiency and meet the needs of customers.
2.gripper can be broken from the lake bolt and casing, reducing the labor intensity of workers, poles demolition efficiency.
3.Clamping cylinder The plug is adjustable to use the Φ 60mm anchor, front and rear grippers.
The customer's request is our work standard

The Crawler Mounted Anchor Drilling Rig is integrated, with tracked walking chassis and clamping shackle. Crawler chassis moving quickly, the hole is convenient; clamping shackle can automatically remove the drill pipe and casing, reducing the labor intensity of workers to improve the construction efficiency.


Use:
The model belongs to the crawler mounted anchor drilling, which is mainly applied to the construction of the foundation pit support and the control of the building displacement and the geological disaster control.

Parameters:

Drilling diameter	ф150-ф250(mm)
Drilling depth	130-170(m)
Final hole diameter	75mm
Drill pipe diameter / casing diameter	Ф73,ф89,ф102,ф114(mm)
Drilling angle	0-90(° )
Rotator output speed	10/20/30/35/40/60/65/70/85/130/170(r/min)
Rotator Output Torque	7500(N.m)
Rotator travel	3400(mm)
Rotator lift force	70(kN)
Rotator lift speed	0-5 adjustable /7/23/30(m/min)
Rotor pressure	36(kN)
Rotary press speed 0-10 adjustable	0-10 adjustable /14/46/59(m/min)
Walking way	crawler walking
Climbing angle	25(° )
Crawler ground pressure	36(kpa)
Walking speed	20(km/h)
Rotary mode	the whole machine manual rotation (automatic rotation optional)
Rotary structure	slewing bearing
Positioning	Positioning Pins
Input power (motor)	55+18.5(KW)
Shipping status (degrees x width x height)	5400x2100x2000(mm)
Weight	6000(kg)

FAQ:

Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2:  No.27, Beichen Village Industrial Park, Weiyang District, Shaanxi Province China.
Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equipment.

Q6: Which payment term can you accept?
A6: 100% T/T( Decide according to actual situation)

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, etc.

Q10: Do you provide samples? Is it free or extra?
A10: Yes, we could offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.

Q11: What is your terms of payment?
A11: We accept T/T, Western Union, Money Gram, Paypal, L/C, etc.

Our Company Information:

We have been focusing on high-quality mechanical equipment and construction products for more than 20 years. Especially have rich experience at mining equipment, main products include:

Ultra Large Rock Splitter

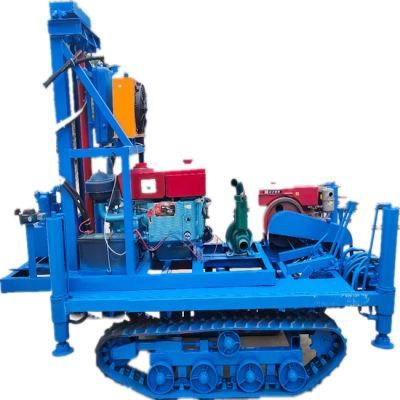

Submersible Drilling Rig
Spraying Machine
Grinding Machine

About Our Factory:



About the products:

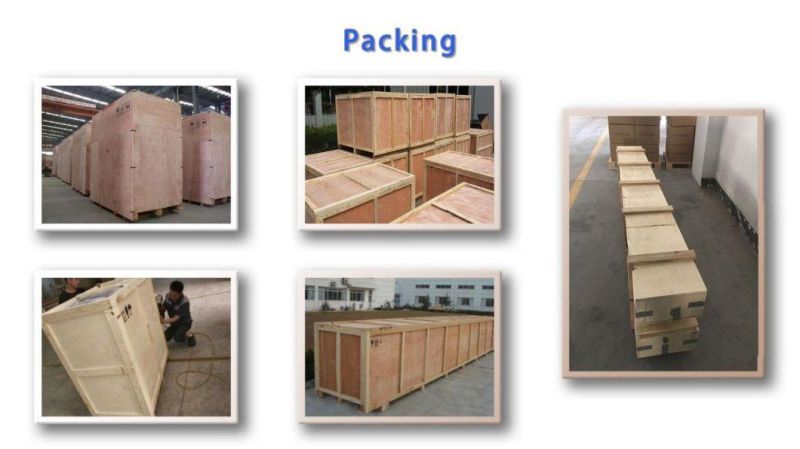

Packing and Shipping:



Purchase Process:

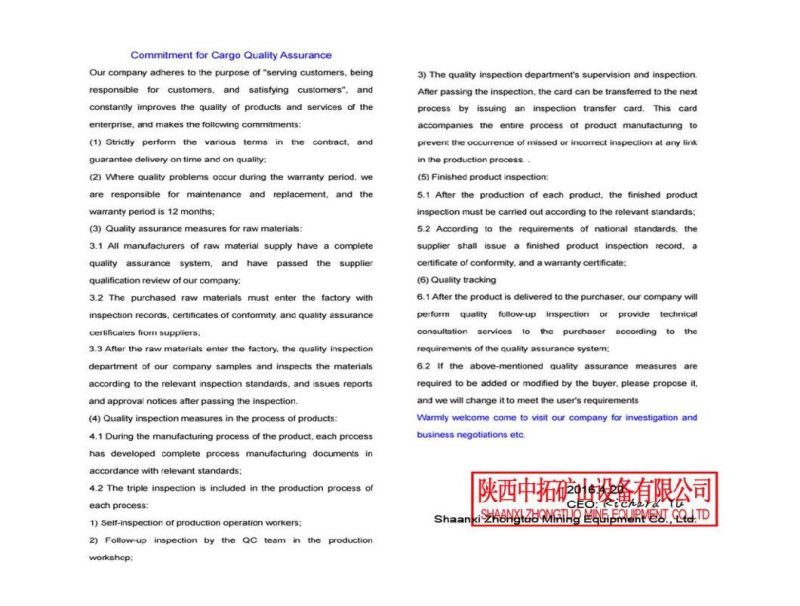

About the Quality:
