13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory

SHANDONG HIGHWAY MACHINE CO., LTD.
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：500-1500mm
  • Drill Hole Depth：10-30m
  • Bit Type：Core Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：Wheeled Four-Wheel
  • Type：Four-Wheel Trailer
  • Weight：10800kg
  • Torque：22000-30000
  • Engine Power：110kw
  • Engine Rotation Rate：2400r,Min
  • Transport Package：Export Standard Packing
  • Specification：8500*2250*3100mm
  • Trademark：LIQIANG, HAIWEI
  • Origin：China
  • HS Code：8430412200
  • Production Capacity：800sets,Year

Description

Model13mWorking modePressure drillingDrilling diametermm500-1500mmDepthm13mDimensionmWeightt10.8Tire model/825-16EngineModel/Weichai/Yuchai Powerkw110 Rotation rater/min2400Torquekn.m22000-30000Drilling rater/min30-50Max.pull forcekn150Max.strokem11-22Rope diametermm18Rotation angle°180Speedkm/h30Max.slope°25Optional 1.Air conditioning
2.Electrical Machinery(6G,30kw)
3.Double pump(rate of flow 40/80)
4.Double dynamic model

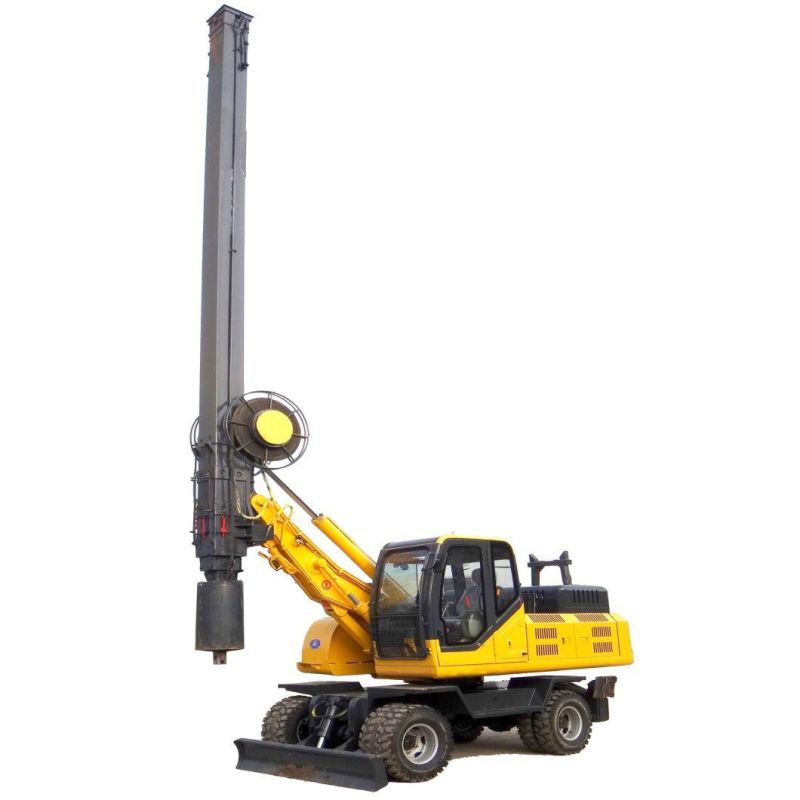

13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory

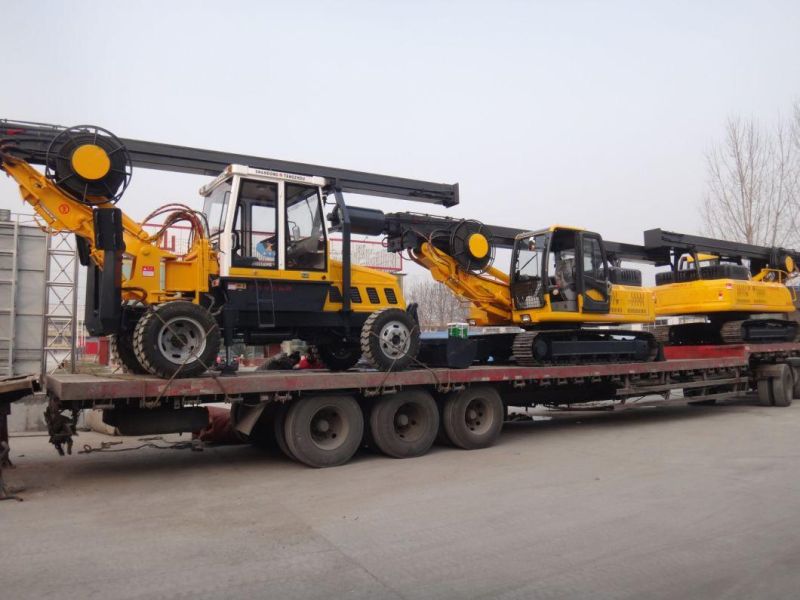

13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory

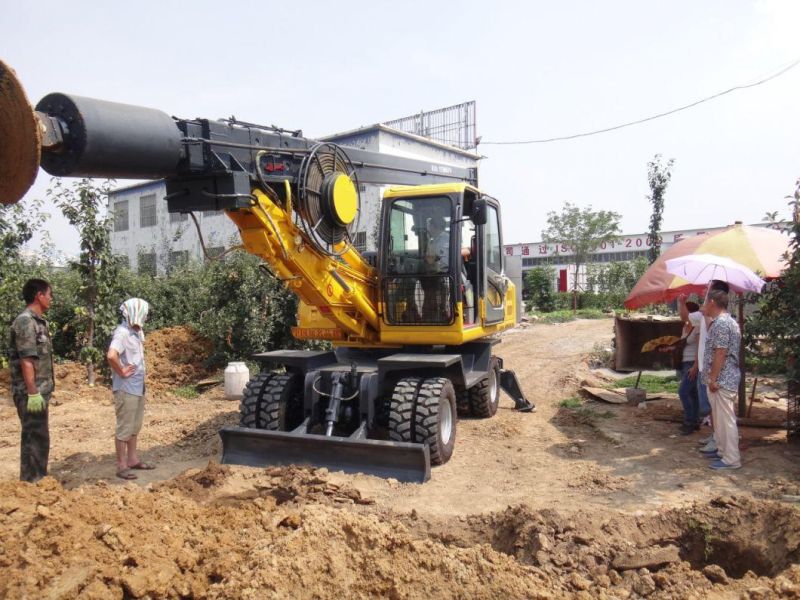

13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory

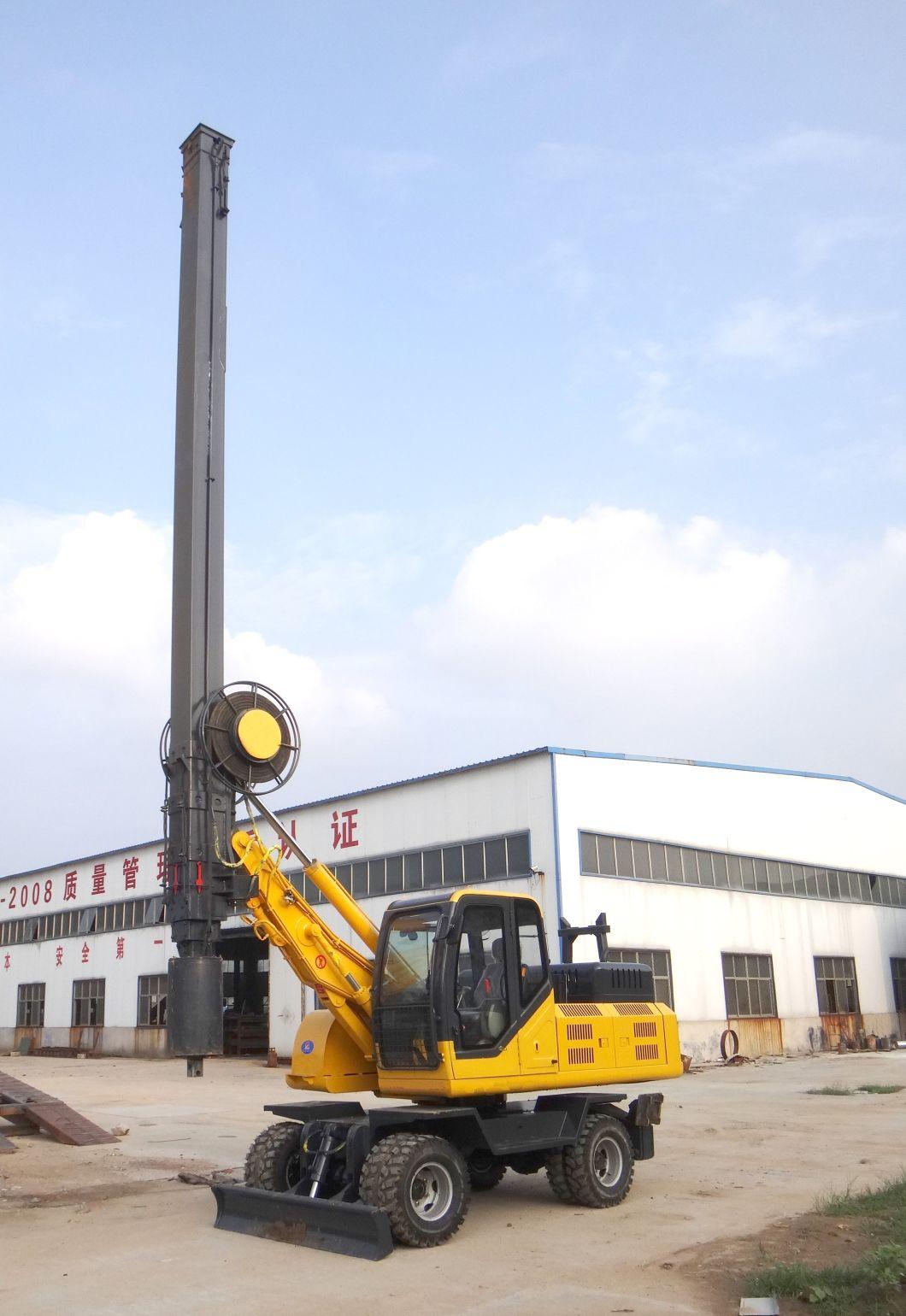

13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory

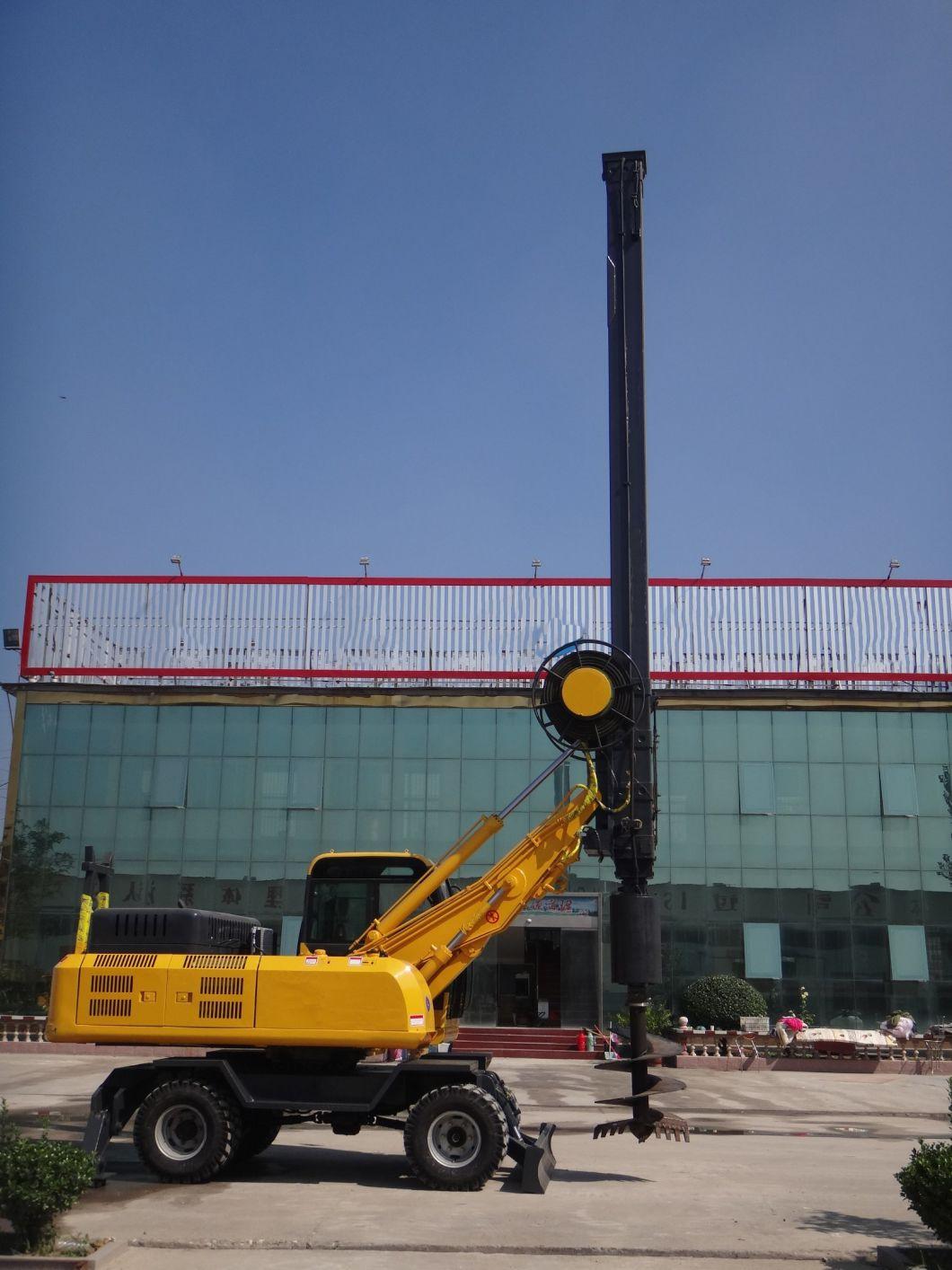

13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory

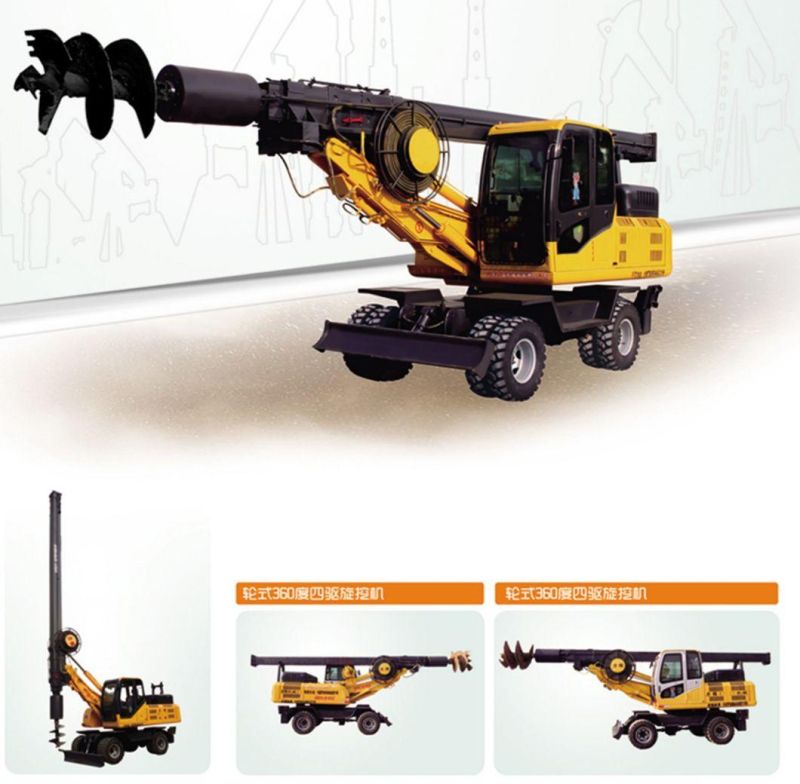

13m Wheeled Four-Wheel Drive Rotary Excavator with High Quality From China Factory
FAQ

Q1: What is the Warranty of the Rotary Drilling Rig?

The warranty period for new machine is half a year or 1000 working hours, whichever comes first will be applied.

Please contact with us for detailed Warranty Regulation.

Q2: What's your service ?

We can offer professional technical support and good after-sale service to you.

Modification methods will be different according to different models and configurations of your owned machine.

Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.

Before modifying, you need to confirm technical specification.
