Drilling Rig

Home > Product > Mine Drilling Rig

D450A Small Integrated DTH Surface Drill Rig

Glorytek Industry (Beijing) Co., Ltd.
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：<100m
  • Bit Type：Button Bit

Base Info

  • Model NO.：D450A
  • Drilling Way：Impactor
  • Hole Diameter：115-138 mm
  • Drill Rod Dia.：76*4m
  • Dimension(L*W*H)：6900*2300*2400mm
  • Weight：16,000 Kg
  • Transport Package：Standard Exporing Packing
  • Specification：CE
  • Trademark：GLORYTEK
  • Origin：Beijing, China
  • Production Capacity：30sets,Month

Description

Diesel EngineYuchaiCumminsCummins230 kW@2,000rpm194 kW@2,000rpm194 kW@2,000rpmDTH Hammer3.5"/4"3.5"/4"4"/ 5"Hole RangeΦ90-138 mmΦ90-130 mmΦ115-138 mmDrill Pipe Storage7+16+16+1Drill PipeΦ68/76mmx3,000mmΦ68/76mmx4,000mmΦ76mmx4,000mmMax. Working Torque2,800 N.m2,800 N.m2,800 N.mFAD.16 m3/min16 m3/min18 m3/minMax. Working Pressure20 bar20 bar21 barMax Pullup Force31 kN31 kN31 kNTramming Speed3 km/h3 km/h3 km/hSlope Capability25°25°25°Track Frame Oscillation±10°±10°±10°Weight13,500 kg15,000 kg16,000 kg


D450A Small Integrated DTH Surface Drill Rig


Company Profile

D450A Small Integrated DTH Surface Drill Rig

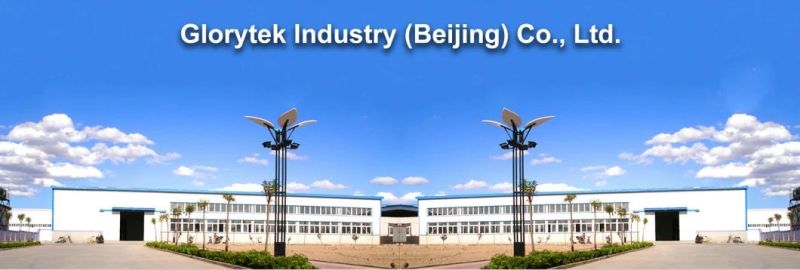

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

D450A Small Integrated DTH Surface Drill Rig
D450A Small Integrated DTH Surface Drill Rig

D450A Small Integrated DTH Surface Drill Rig


FAQ

Q: How can we choose a suitable blasthole drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. etc.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
