Horizontal Directional Drill Xz200 with Stable Chassis Support

Newindu Construction Engineering (Shanghai) Co., Ltd.
  • After-sales Service：Online Service
  • Warranty：One Warranty
  • Certification：CE
  • Condition：New
  • Drill Hole Diameter：73mm, 73mm
  • Drill Hole Depth：Max.500m

Base Info

  • Model NO.：XZ200
  • Bit Type：Cone Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Rated Power：112kw
  • Dimension：5900*2250*2400mm
  • Max Thrust-Pull Force：480kn
  • Transport Package：LCL, 20gp
  • Specification：8500kg
  • Trademark：CHIAN TOP BRAND
  • Origin：China
  • HS Code：8427209000
  • Production Capacity：100

Description

UnitSpecificationXZ200Dimension(L*W*H)mm5900*2250*2400Overall weightt8.5Engine model 6BTAA5.9-C150Engine powerkw112/2200Thrust-pull model Rack and pinionMax. pullback/thrustingkn220/220Max.spindle torqueN.m6350Spindle speedr/min0-160Spindle travelling speedm/min0-26Max.backreaming diametermm600Pipe length(single)m3Pipe diametermm60Entry angle°10-22Max.mud flow rateL/min250Max.mud pressurebar80

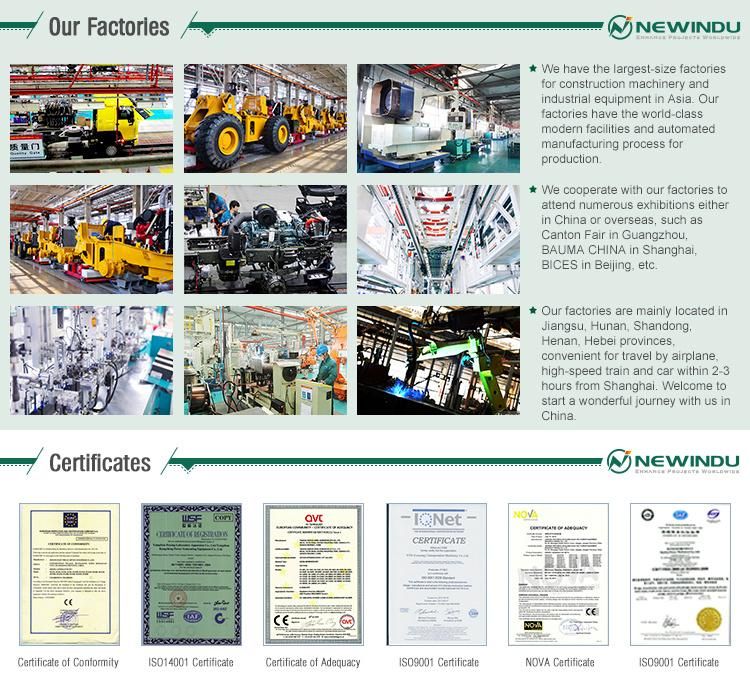

Company Profile
