• Model NO.：TZ-450
• Drilling Way：Impactor
• Type：Crawler
• Power：Hydraulic
• Configuration：Portable
• Warranty：One Year
• Transport Package：Export Standard
• Specification：5400x1800x2480mm
• Trademark：TZ
• Origin：Guangxi Liuzhou
• HS Code：8430412900
• Production Capacity：100

Basic Info.

Model NO. TZ-450 Drilling Way Impactor Type Crawler Power Hydraulic Configuration Portable Warranty One Year Transport Package Export Standard Specification 5400x1800x2480mm Trademark TZ Origin Guangxi Liuzhou HS Code 8430412900 Production Capacity 100

Product Description

Our TZ series water well drill rig is uses full hydraulic control and the top drive to drive the rotation of drilling tools with very high drilling efficiency,Reasonable overall layout uses the tractor-mounted or all terrain chassis for the transportation with good maneuverability.very flexible in difficult roads,it can be widely used in many fields,such as resource exploration of hydrology wells,coal bed methane,shallow layer of shale gas,terrestrial heat,ect,and can also be used for coal-mine gas exploitation or salvage work.TZ series well drilling rig have been exported to many countries

The top-mounted driving head principal shaft have a great drift diameter,which is suitable for many kinds of construction work such as mud pump drilling,air drilling and air foal drilling,meeting the demands of well drilling in different terrain strata


Model	TZ-400	TZ-450	TZ-550
Max drilling depth	400m	450m	550m
Drilling diameter	105-350mm	105-400mm	105-450mm
Adaptation condition	F=6-20	F=6-20	F=6-20
Recommendation Working pressure	1.2-3.5MPa	1.2-3.5MPa	1.2-3.5MPa
Recommendation air consumption	16-55m3/min	16-55m3/min	16-55m3/min
Drill Rod length	3/6 m	3/6 m	3/6 m
Drill rod diameter	89/102mm	89/102mm	102/114mm
Maximum propulsion	8T	8T	10T
Maxumum lifting force	18T	20T	25T
Fast forwarding speed	55m/min	55m/min	55m/min
Fast lifting speed	30m/min	30m/min	30m/min
Maximum  Rotation speed	80/160r/min	90/180r/min	80/160r/min
Maxumum rotation torque	7800/3900Nm	9000/4500Nm	10000/5000Nm
Drilling speed	10-35m/h	10-35m/h	10-35m/h
Winch lifting force	1.1T	1.1T	1.1T
Working speed	2.5km/h	2.5km/h	2.5km/h
Grade ability	21	21	21
High leg stroke	1.6m	1.6m	1.6m
Dimension	5400x1800x2480mm	5600x1900x2620mm	5600x1900x2620mm
Drilling method	Air drilling  or  Mud pump drilling	Air drilling  or  Mud pump drilling	Air drilling  or  Mud pump drilling
Engine	88Kw	92Kw	110Kw
Total weight	8.2T	10.2T	10.4T

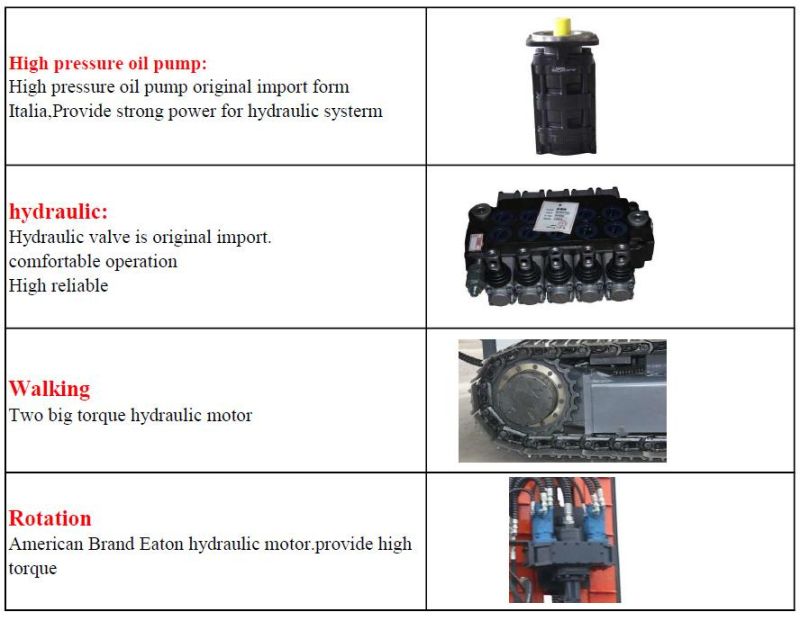

Our component list:

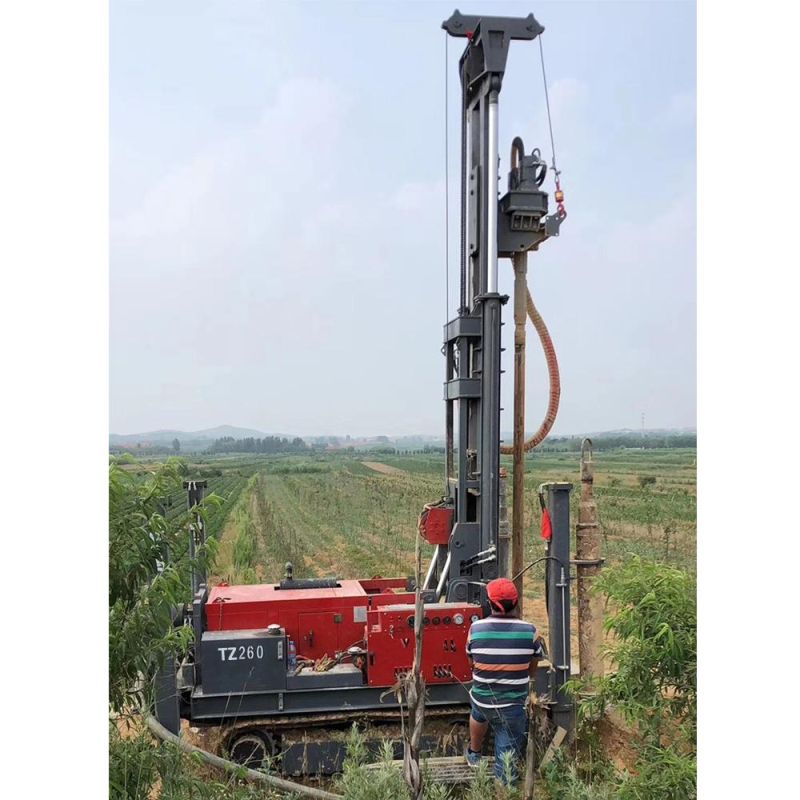

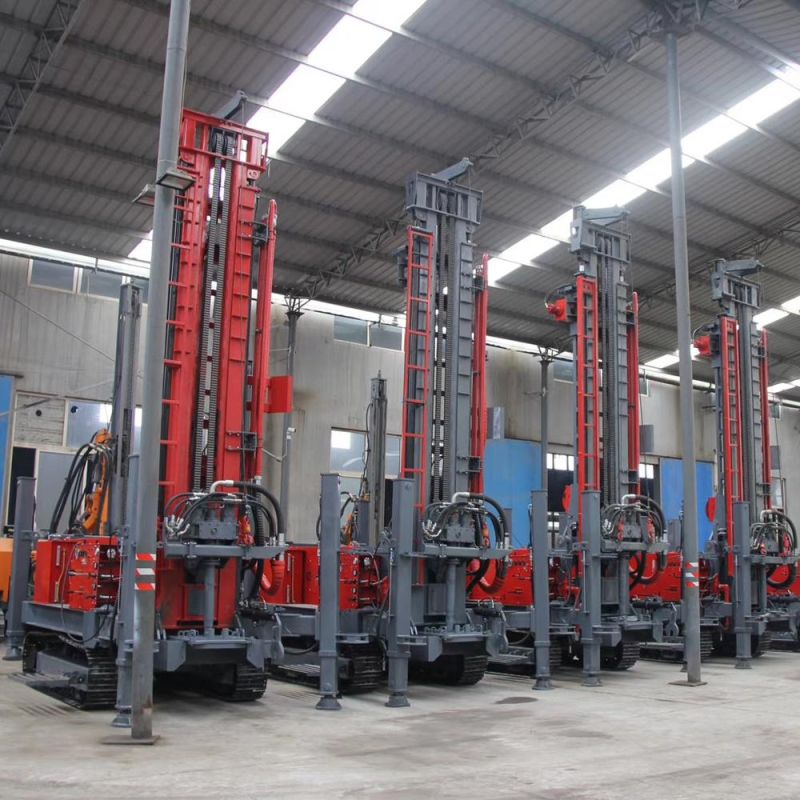

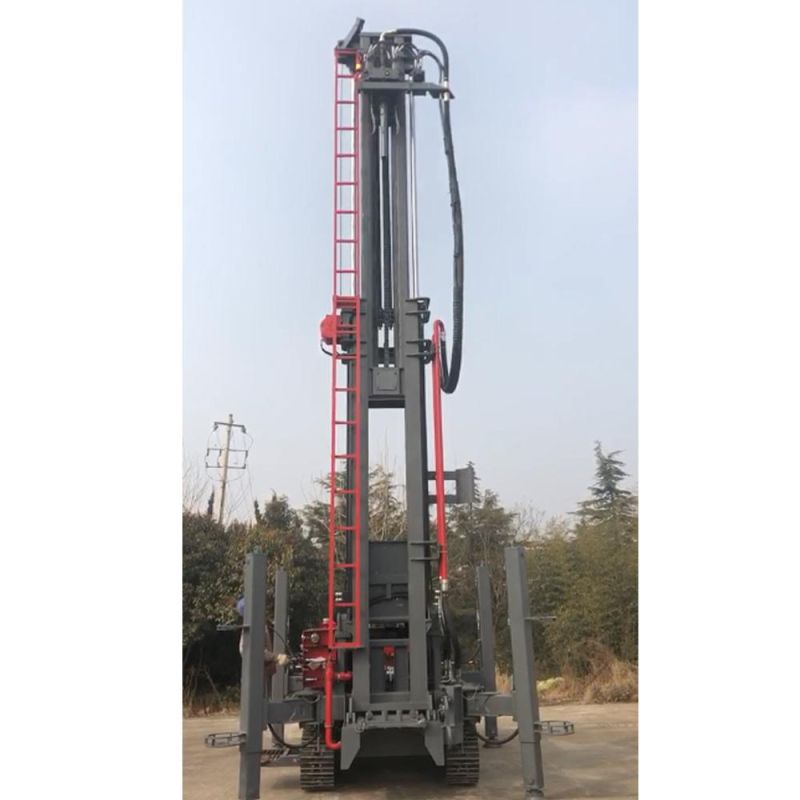

Products display:
