Open Air Surface Crawler DTH Drill Rig for Granite Mining

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification：ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：90-165mm
  • Drill Hole Depth：30-40m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：H680
  • Drilling Way：Rotary
  • Matching Air Compressore：Hg700-18c (700cfm &18bar)
  • Type：Surface DTH Drilling Rig
  • Rock Hardness：F=6~20
  • Climb Ability：25°
  • Working Pressure：1-2.4 MPa
  • Air Consumption：14-35m3
  • Rotate Speed：0-120rpm
  • Power Type：Diesel
  • Power：70,90kw
  • Drill Rod：76*3000mm
  • Hammer：45A
  • Drill Bit：115mm
  • Weight：6500kg
  • Transport Package：40"FT Container
  • Specification：6100x2250x2500 mm
  • Trademark：JEAO
  • Origin：Zhejiang
  • Production Capacity：300sets

Description

Product nameHG700-18CCompressorAir Displacement(m3/min)18Discharge Pressure(bar)18Compressed ClassSingleOil Tank Capacity(L)130Screw Oil Capacity(L)80EngineEngine ModelDongFeng Cummins 6CTA8.3-C260Cylinder No.6Rotate Power(KW)194Rotate Speed(rpm)1900Lubricating Oil Capacity(L)24Coolant Capacity(L)60Fuel Capacity(L)350Whole MachineDrive ModeDirect DriveJoint Dimension1-G2, 1-G1Size4600*1980*2210Weight3280Wheel No.2 wheel

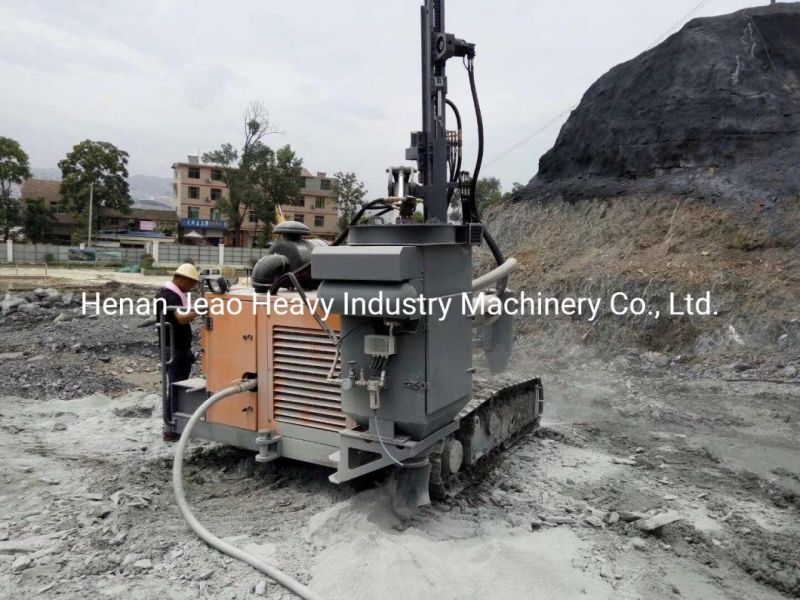

Open Air Surface Crawler DTH Drill Rig for Granite Mining

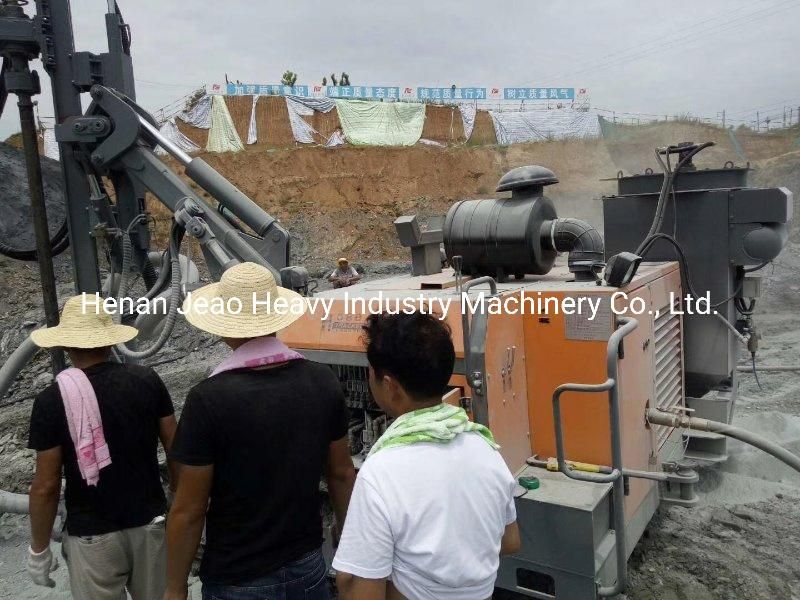

Open Air Surface Crawler DTH Drill Rig for Granite Mining
Open Air Surface Crawler DTH Drill Rig for Granite Mining
