• Model NO.：GD450-LS
• Type：Optional
• Hydraulic Cylinder Brand：China
• Unique Selling Point：High Operating Efficiency
• Transport Package：Nude Package, Attached Parts and Tools Into Standa
• Specification：8450× 2320× 2650
• Trademark：goodeng
• Origin：China
• HS Code：3005909000
• Production Capacity：1000

Basic Info.

Model NO. GD450-LS Type Optional Hydraulic Cylinder Brand China Unique Selling Point High Operating Efficiency Transport Package Nude Package, Attached Parts and Tools Into Standa Specification 8450× 2320× 2650 Trademark goodeng Origin China HS Code 3005909000 Production Capacity 1000

Product Description

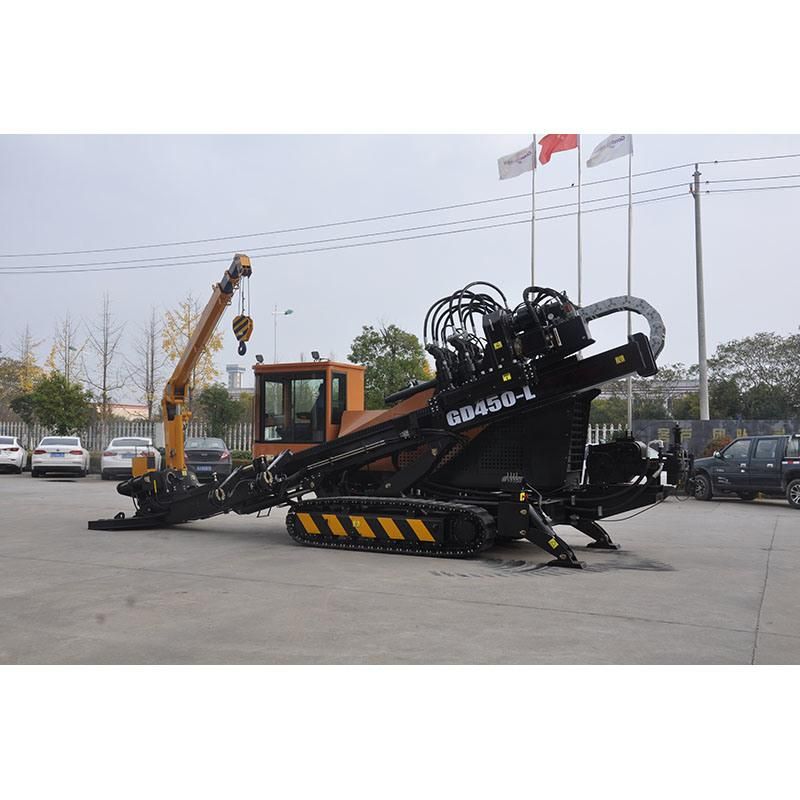

Acntruck  GD450-LS Horizontal Direction Drilling Machine including 2T Crane



Main Performance Characteristics



1,  Equipped with Cum---mins Engine, dedicated purpose for engineering machinery, with high efficiency, large power, low fuel consumption, low noise,strong ability in construction.
2, Push & pull and rotation adopt manual handle, which is simple and quick to control.
3, Equipped with manually handle for push & pull and rotate, which is simple and quick to operate.
4,  Humanized-design worktable can rotary within 60°,having a wider view range, and high quality seat forward /backward moveable, which is comfortable for operator.
5,  Europe-American style surface, streamline sculpt, elegant appearance, fully embody humanist designing idea. And it be opened overall for flexible operation and daily convenient maintenance.
6,  Small size and Lightness is better for construction in city centure,transfer and drilling in different kinds of working condition.
7,  Equipped with Vermeer type drill rod (Φ89×4500, Φ102×4500),with high quality , high reliability and superior performance.
8,  Main assembly parts adopt components from international first-class hydraulic components manufacturer, greatly improve the performance of products reliability.
9, Adopt rack and pinion push & pull system, high efficiency, stable working.
10,Machine used auto-feed thread oil and it is optional. And automatic anchor nail ,auto-feed pipe box mechanism are also optional, which can greatly improve working efficiency and reduce working intensity.


Technique Parameters
1, Rotation and push-pull pilot control, flexible, light and comfortable.
2,push-pull uses rack and pinion structure
3,Fixed clamp



Rig Weight (kg)	14500	Size L×W×H (mm)	8450×2320×2650
Max. Push & Pull force (KN)	480/960	Max. Torque (N*m)	27000
Max. Push & Pull speed (m/min)	55	Max. Rotation Speed (r/min)	116
Engine Power (KW)	194	Max. Mud Pump Flow (L/min)	600
Caterpillar Walking Speed (Km/h)	3-5	Max. Mud Pump Pressure (Mpa)	10
Entry Drill Angle (°)	12~22	Max. Climbing Gradient (°)	18
Max Aperture Diameter (mm)	Ф1500	Max. Drilling Length (m)	800
