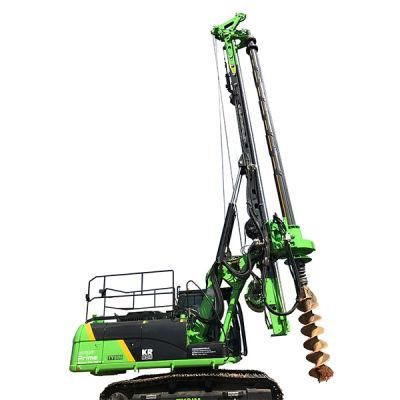

High Quality Well Water Tysim Kr220 Rotary Drilling Rig
TYSIM Piling Equipment Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：10-30m
- Drilling Way：Rotary
- Type：Crawler
Base Info
- Model NO.：KR220C
- Torque：220 Kn.M
- Max. Diameter：800 mm
- Max. Drilling Depth：20 M
- Ocerall Weight：60 T
- Main Pull：230 Kn.M
- Transport Package：Bulk Pack
- Specification：60 t
- Trademark：tysim
- Origin：Jiangsu, China
- HS Code：8431499900
- Production Capacity：30pieces,Month
Description
CFA construction method Max. diameter 800mm Max. drilling depth 20m Main winch line pull 230 kN Rotary drilling construction method Max. Diameter 1800/2000 mm Max. drilling depth 51/64 m Main winch line pull 230 kN Main winch line speed 60 m/min Working parameters Max. torque 220 kN.m Auxiliary winch line pull 110 kN Auxiliary winch line speed 60 m/min Mast inclination(lateral) ±3° Mast inclination(forward) 5° Max. operating pressure 35 MPa Pilot pressure 3.9 MPa Travel speed 2.8 km/h Traction force 420 kN Operating size Operating height 25955 mm(CFA)
21080mm(rotary drilling) Operating width 3000 mm Transport size Transport height 3256 mm Transport width 3000 mm Transport length 15685 mm Total weight Overall weight 60 t
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is 1 year or 2000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
21080mm(rotary drilling)
Product Details
1. Undercarriage-----Reliable & Mature Excavator Supplier for Choice
Type: New & Used
Brand: CAT, JCM, SINOMACH, SANY and other
2. Hydraulic Parts-----Famous Brands
Gearbox Reducer: Imported REXROTH
Main Pump & Valve: Imported KAWASAKI (Japan)
Hose: Imported
3. Structure Parts-----Professional Structure Parts Supplier
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
