Gl500s Crawler Borehole Drilling Rig for Sale

Glorytek Industry (Beijing) Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008, BV
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：>200m
  • Bit Type：DTH Bit, Tricone Bit, Drag Bit

Base Info

  • Model NO.：GL500S
  • Drilling Way：Compound
  • Type：Crawler
  • Keyword：Water Well Drill Rig
  • Max. Drill Depth：500m
  • Drill Diameter：138-350mm
  • Drill Rod Length：3m
  • Drill Rod Diameter：108mm, 114mm
  • Weight：11 T
  • Whole Dimension：6200*2100*2650(mm)
  • Transport Package：Sea Worthy Packing.
  • Specification：500m
  • Trademark：GLORYTEK
  • Origin：Beijing, China
  • Production Capacity：20 Sets, Month

Description

ItemSpecificationWeight of the rig(T)11Drilling diameter(mm)138-350Drilling depth (m)500Feeding stroke(m)6.6Moving speed(km/h)2.5Climbing ability(°)30Diesel engine(kw)118Air pressure (mpa)1.8-3.5Air consumption(m³/min)40Rod diameter(mm)Φ108 φ114Rod length (m)3.0   6.0Lifting force (T)27Rotary speed (r/min)40-100Rotary torque(N.m)7500-10000Supporting legs (height*width)(mm)1400*2800Rig dimensions(length*width*height)(mm)6200*2100*2650

Related Products

Gl500s Crawler Borehole Drilling Rig for Sale


Company Profile

Gl500s Crawler Borehole Drilling Rig for Sale

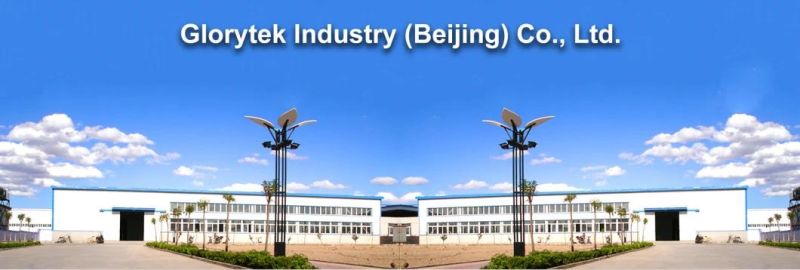

Glorytek Industry (Beijing) Co., Ltd. is an integrated corporation specialized in manufacturing and exporting top quality drilling equipment and drilling parts for more than 20 years. We are supported and assisted by highly experienced R&D team and enginners that enable us to complete all the assigned projects successfully as per clients' requirements.

Our factory covers an area of 250,000 square meters, construction area is about 150,000 square meters, having machining machinery, CNC processing center, friction welding machine, testing equipments etc. over 200 sets and more than 600 employees.

Our products have been exported more than 60 countries, including Australia, Russia, Soutn Africa, Zimbabwe, Malaysia, Indonesia, South Korea, France, Sweden, USA, Canada, Haiti etc.

Gl500s Crawler Borehole Drilling Rig for Sale
Gl500s Crawler Borehole Drilling Rig for Sale

Gl500s Crawler Borehole Drilling Rig for Sale


FAQ

Q: How can we choose a suitable water well drill rig?
A: We normally recommend a suitable model according to drilling depth, drilling hole dia. and layer condition on site.


Q: Are you a factory or a trading company ?
A: We are an integrated corporation specialized in manufacturing and exporting.


Q: What is your payment terms?
A: We can accept T/T,L/C.

Q:.What is your MOQ? How long is the delivery time?
A: Our MOQ is 1 sets. Normally for drill rig, the delivery time is about 25-30 days after receiving payment, the drilling tools would be about 15 days.

Q:. How long is the warranty?
A: The guarantee period for mainframe is one year (excluding the quick wear parts).

Q: Can we print my Logo on the products?
A: Yes, we can. We support OEM .
