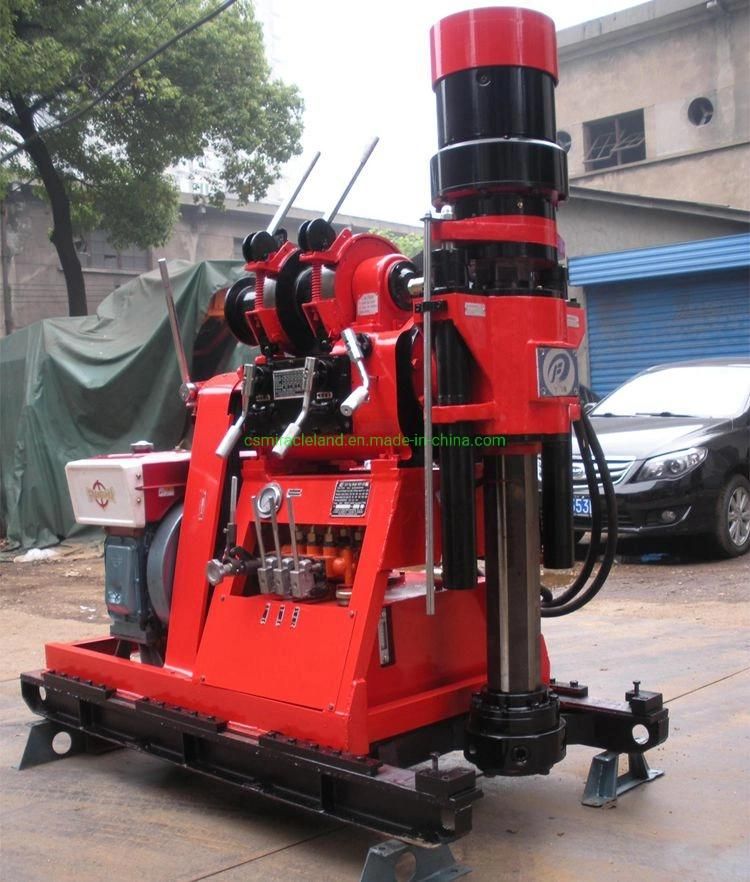

Spt Soil Testing Core Drilling Machine (HGY-200D)
Changsha Miracleland Import & Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：Diesel Engine
- Drill Hole Diameter：76-300mm
Base Info
- Model NO.：HGY-200D
- Drill Hole Depth：>200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Chuck：Hydraulic Chuck
- Quality：High Quality
- Usage：Ore, Geotechnical, Water Well, Coal
- Dimensions：1860X800X1400mm
- Type：Rotary Drilling Rig
- Transport Package：in Plywood Case
- Specification：200
- Trademark：FLYDISC
- Origin：Changsha Hunan China
- HS Code：8430691900
- Production Capacity：30 Sets,Month
Description
Overview
Product Description
Related Photos
| Type | HGY-200 Drilling Rig |
| Drilling depth(m) | 200 |
| Drilling rod diameter(mm) | Φ50 |
| Head angle range | 360° |
| Cylinder stroke(mm) | 360 |
| Spindle speed(r/min) | Positive rotation rate: 60150240340550830 Reverse rotation rate: 3585135195330480 |
| Spindle hole diameter(mm) | Φ63 or Φ95 |
| Spindle output torque(N.M) | 2140 |
| Spindle stroke(mm) | 500 |
| Spindle driving force max.(KN) | 37 |
| Spindle lifting power max.(KN) | 50 |
| Lifting speed (m/s) | 0.62.33.4 |
| Single rope lifting power(KN) | 20 |
| Steel wire rope diameter(mm) | Φ11 |
| Mode of chuck | Full hydraulic chuck or ball-type chuck |
| Weight(power unit excepted)(kg) | 750 |
| Dimensions(LxWxH)(mm) | 1860x800x1400 |
| Diesel engine | ZS1115(14.7KW) |
| Electrometer | Y160L-4(15KW) |
