Hot Sell Jk-Dr200X Small Rubber Crawler Water Well Drilling Rig
Shandong JK Machinery Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Drill Hole Diameter：140-254mm
- Drill Hole Depth：200m
- Bit Type：Diamond Bit
- Drilling Way：Rotary
Base Info
- Model NO.：JK-DR200X
- Type：Crawler

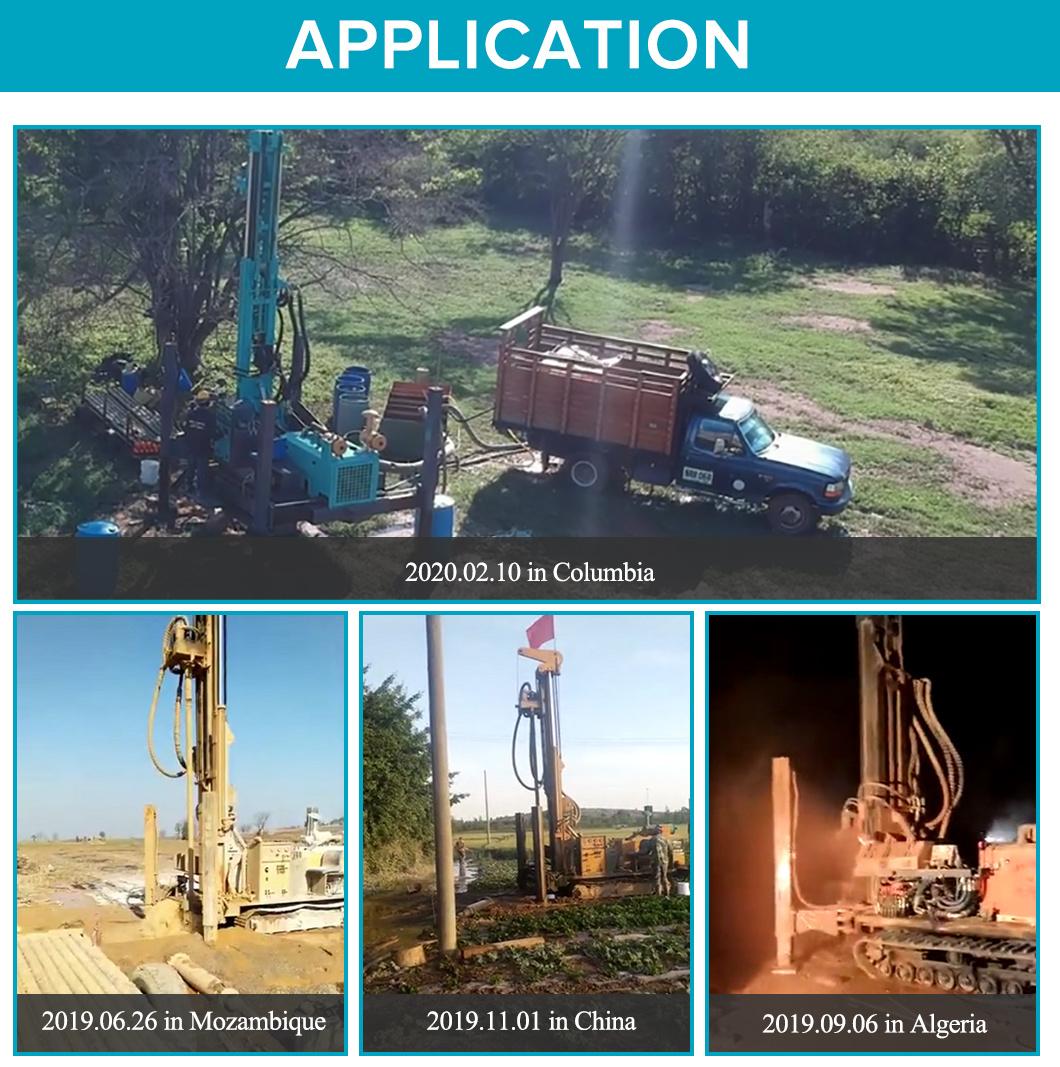

- Usage：Water Well
- Voltage：24V
- Weight：4.7t
- Warranty：1 Year
- Power Type：Diesel
- Product Name：Water Well Drilling Rig

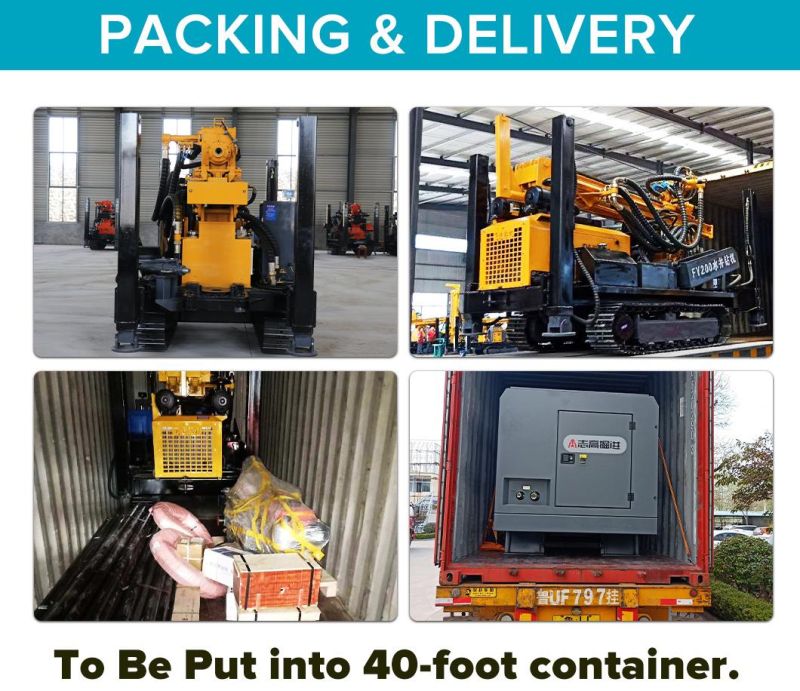

- Transport Package：20gp
- Specification：4000*1700*2200mm
- Trademark：SDJK
- Origin：Shandong
- HS Code：8430412100
- Production Capacity：100sets,Month
Description
The Main Parameters Model JK-DR200X Weight 4.7T Bore diameter 140-254mm Drilling depth 200m Stroke 3.3m Travelling speed 2.5km/h Gradeability 30% Power 65KW Rated pressure 1.7-2.5mpa Air consumption 17-31m³/min Drill rod diameter Φ76, Φ89 Drill rod length 1.5m 2.0m 3.0m Elevating capacity 10T Swing speed 45-65rpm Swing torque 3200-4600N.M Dimensions 4000*1700*2200mm
