• Model NO.：YG-Q70
• Drilling Way：Impactor
• Product Name：Water Well Drilling Machine
• Drilling Rod Od：42mm
• Rated Speed：1440
• Electric Motor Voltage：380V
• Electric Motor Power：3 Kw
• Max Propelled Force：8000n
• Propulsion Stroke：1070mm
• Cylinder Diameter：90mm
• Air Consumption：4m3,Min
• Working Air Pressure：0.5-0.7MPa
• Transport Package：Wooden Case Packing
• Specification：1740*260*420
• Trademark：YuGong
• Origin：China
• HS Code：8431499900
• Production Capacity：5 Sets,Month

Basic Info.

Model NO. YG-Q70 Drilling Way Impactor Product Name Water Well Drilling Machine Drilling Rod Od 42mm Rated Speed 1440 Electric Motor Voltage 380V Electric Motor Power 3 Kw Max Propelled Force 8000n Propulsion Stroke 1070mm Cylinder Diameter 90mm Air Consumption 4m3/Min Working Air Pressure 0.5-0.7MPa Transport Package Wooden Case Packing Specification 1740*260*420 Trademark YuGong Origin China HS Code 8431499900 Production Capacity 5 Sets/Month

Product Description

4KW Borehole drilling machine hand drilling machineProduct Description:
DTH Drilling Rig is designed for these highway, railway, water conservancy, mine construction engineers which road inconvenient in the earlier projects stage.The auxiliary equipment for supplying power is lighter and easier to relocation and transfer.In the case of utmost reduce the main machine weight can still meet the needs of drilling large diameter and deep hole operations.
But also is suitable for the slope support and other projects.So the machine is a kind of portable and economic model.

Performance advantages:
1.Full hydraulic anchor drilling rig
This type of drilling rig is rotary power and propulsion power and auxiliary action are based on hydraulic power, hydraulic Station by the motor or internal combustion engine drive.
The adjustment range of this kind of drilling rig is wider, and it is Suitable for large hole diameter and hole depth.The opening and anti-jamming ability are good, and the operation is flexible. And convenient.It is the most used type of domestic manufacturers.

2.An electric hydraulic anchor drilling rig
This type of drilling machine to rotate the motor-driven, propulsion and auxiliary action to hydraulic power.

Technical Parameter :


Model	YGD 70         YGD80	YGD 100	YGQ 100	YGB100-4   YGB120-5.5
Drilling diameter (mm)	50-90/90-120	90-130	90-130	90-130
Rock ruggedness coefficient	>20	>20	>20	>20
Drilling depth (m)	15	25	25	30-40
Rotate speed (r/min)	110	110	110	110
Working  air pressure (Mpa)	0.5-0.7	0.5-1.0	0.5-1.0	0.5-1.0
Air comsumption (m3/min)	4	6	12	10
Propulsion stroke (mm)	90	140	140	140
Max propelled force ( N)	3600/8000	9600	9600	9600
Electric motor power (kw)	3/4	4	-----	4/5.5
Electric Motor Voltage( V)	380	380	-----	380
Rated speed (r/min)	1440	1440	3200	1440
Drilling rod (mm)	42	50/60	50/60	60
Drilling rod length (mm)	1025	1025	1025	1025
Dimension (mm)	1740*260*420	2280*440*550	2230*380*550	2230*380*550
Weight (kg)	280/320	470	450	460/480

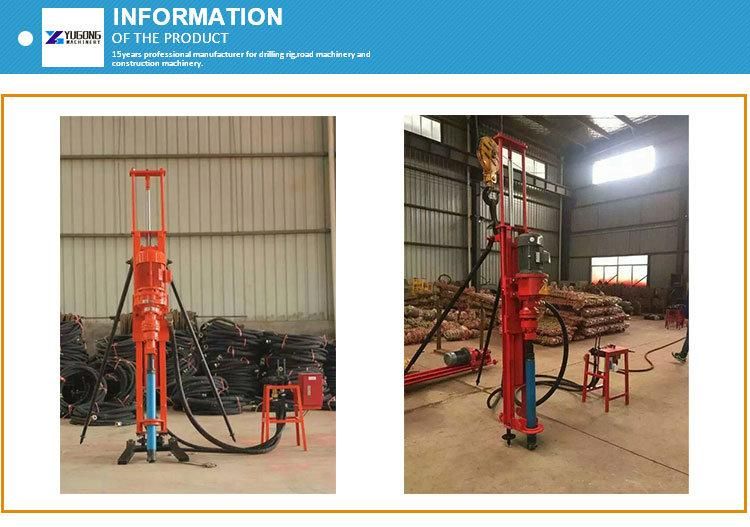

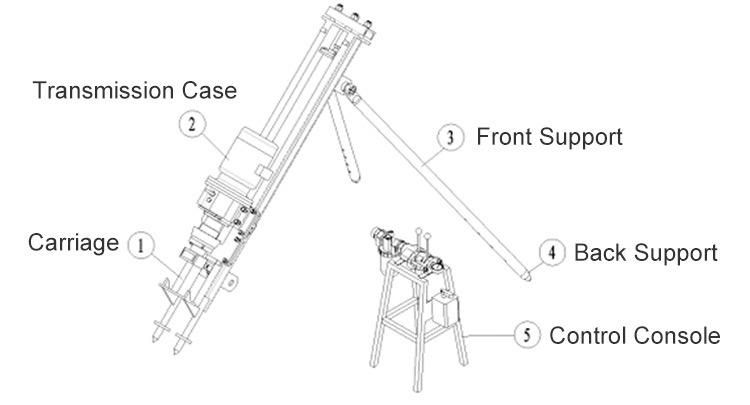

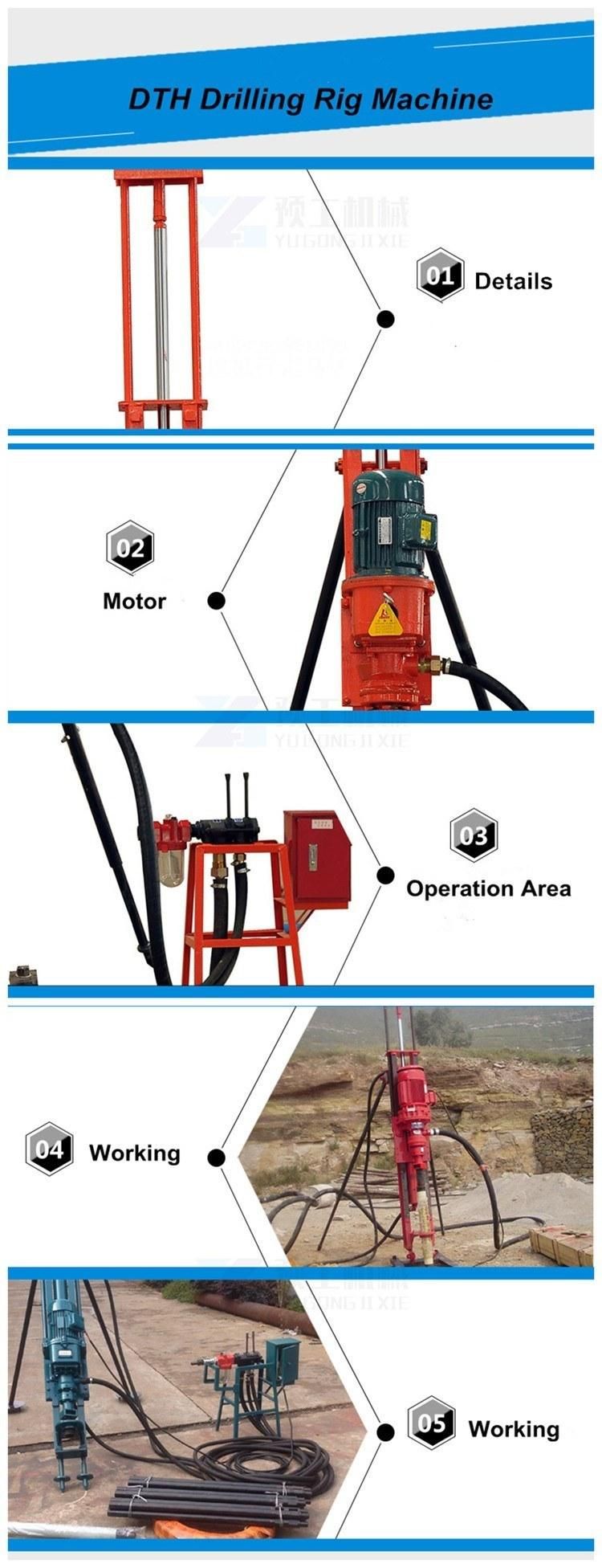

Detailed Images:

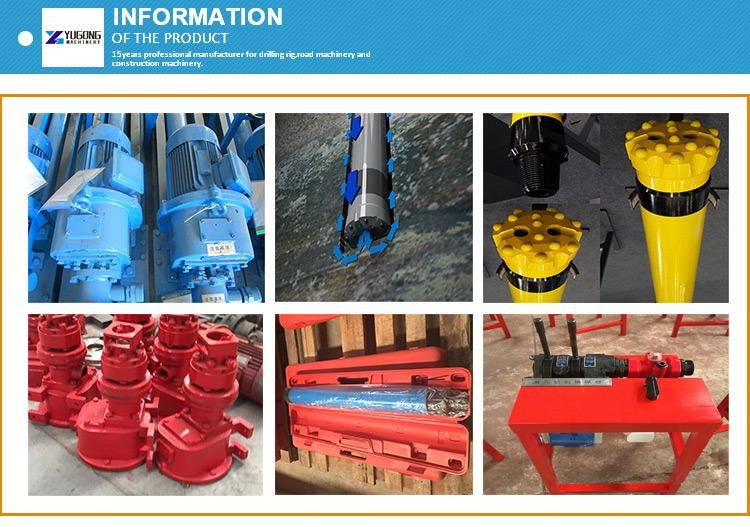

Spare parts (Drilling pipes and drilling bit)

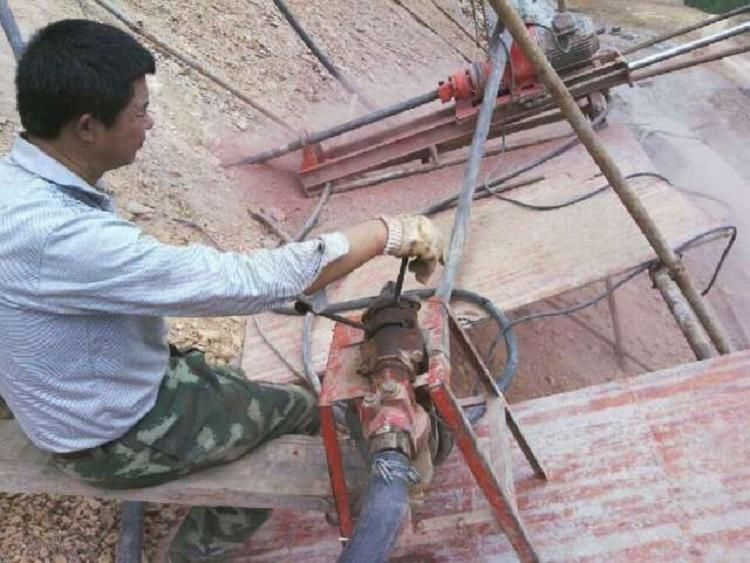

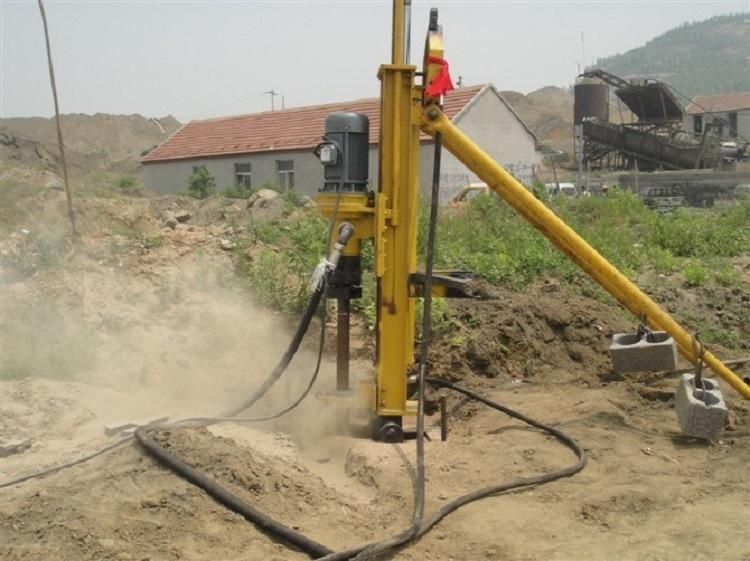

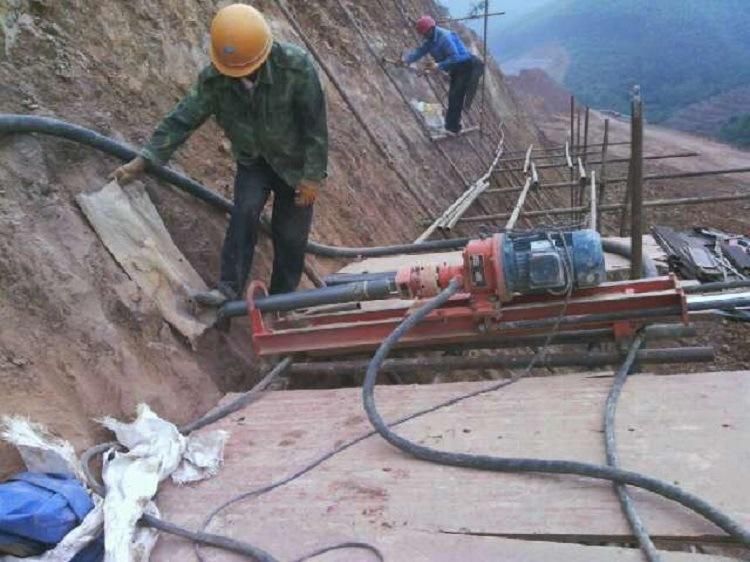

Working Pictures

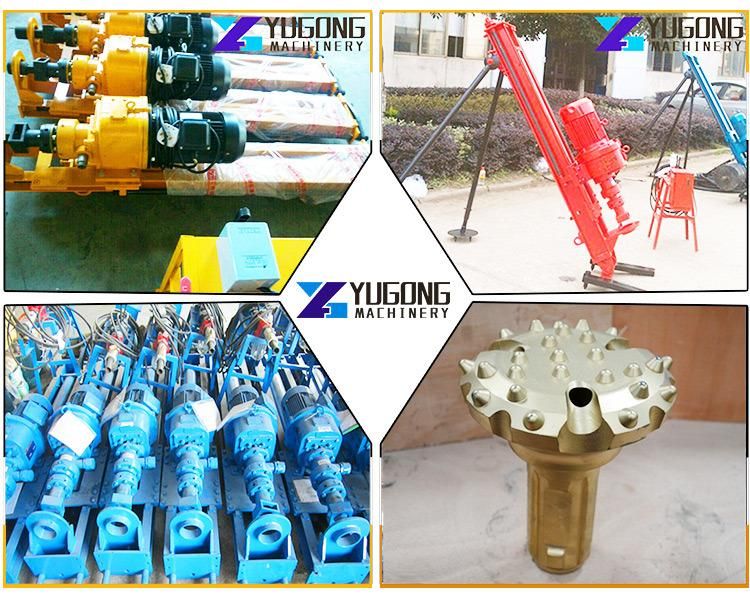

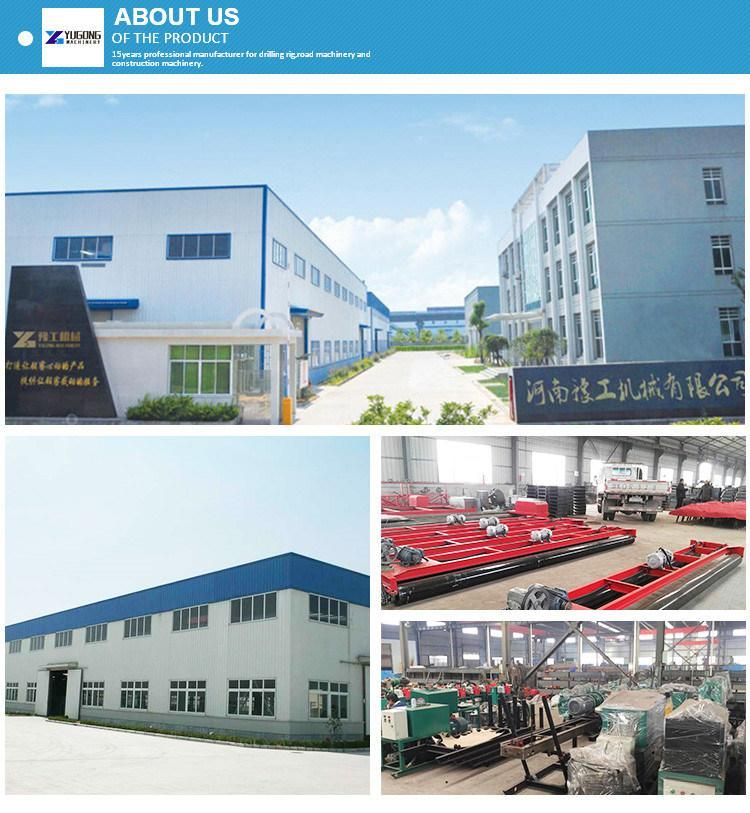

Our company & Factory

Henan Yugong Machinery Co.,Ltd.is a collection of mining equipment, tunnel bridge construction equipment, road surface construction equipment etc. with research and development, production, sales as one of the largest engineering machinery manufacturing enterprises. Main products handled by our company is currently involved in highways, Bridges, tunnels, subway tunnels, high-speed rail, light rail transit mining resources exploitation, coal and non coal mine area.

We believe that good product can prove everything, including the quality, the attitude, the newest craftsmanship and the product concept to innovate a good product, every staff is trained and practiced professionally, so we can recommend you the most appropriate equipment. Every machine has to be strictly examined before delivery. Any question about the machine will be replied within 24 hours.We are expecting your arrival and right here waiting for you all the time!
