600m Trailer Mounted Deep Rotary Hydraulic Water Well Drilling Rig
Henan Yugong Machinery Co., Ltd.- Certification:CE, ISO 9001:2008
- Condition:New
- Motor:Diesel
- Drill Hole Diameter:75mm-220mm
- Drill Hole Depth:150-200m
- Bit Type:Diamond Bit
Base Info
- Drilling Way:Rotary
- Type:Four-Wheel Trailer, Two-Wheel Trailer
- Weight Without Power:800kg
- Product Name:Wheel Water Well Drilling Rig Machine
- Drilling Angle:90- 75
- Drill Pipe Diameter:50mm, 60mm, 72mm
- Power:22kw, 36kw, 42kw
- Pump Flow:160L,Min
- Drilling Depth:200m
- Take The Initiative to Drill Pipe:53,59*4200mm
- Drilling Tower:Triangle Drilling Tower
- Parts:Mud Pump
- Part2:Air Compressor
- Usage:Water Well Drilling Rig
- Others:Drilling Bits
- Belong:Engineering Machine
- Transport Package:Wooden Case
- Specification:2700*1000*1500mm
- Trademark:Yugong
- Origin:China, Henan Province
- HS Code:8430691900
- Production Capacity:500,Month
Description
Basic Info.
Drilling Way Rotary Type Four-Wheel Trailer, Two-Wheel Trailer Weight Without Power 800kg Product Name Wheel Water Well Drilling Rig Machine Drilling Angle 90- 75 Drill Pipe Diameter 50mm, 60mm, 72mm Power 22kw, 36kw, 42kw Pump Flow 160L/Min Drilling Depth 200m Take The Initiative to Drill Pipe 53/59*4200mm Drilling Tower Triangle Drilling Tower Parts Mud Pump Part2 Air Compressor Usage Water Well Drilling Rig Others Drilling Bits Belong Engineering Machine Transport Package Wooden Case Specification 2700*1000*1500mm Trademark Yugong Origin China, Henan Province HS Code 8430691900 Production Capacity 500/MonthProduct Description

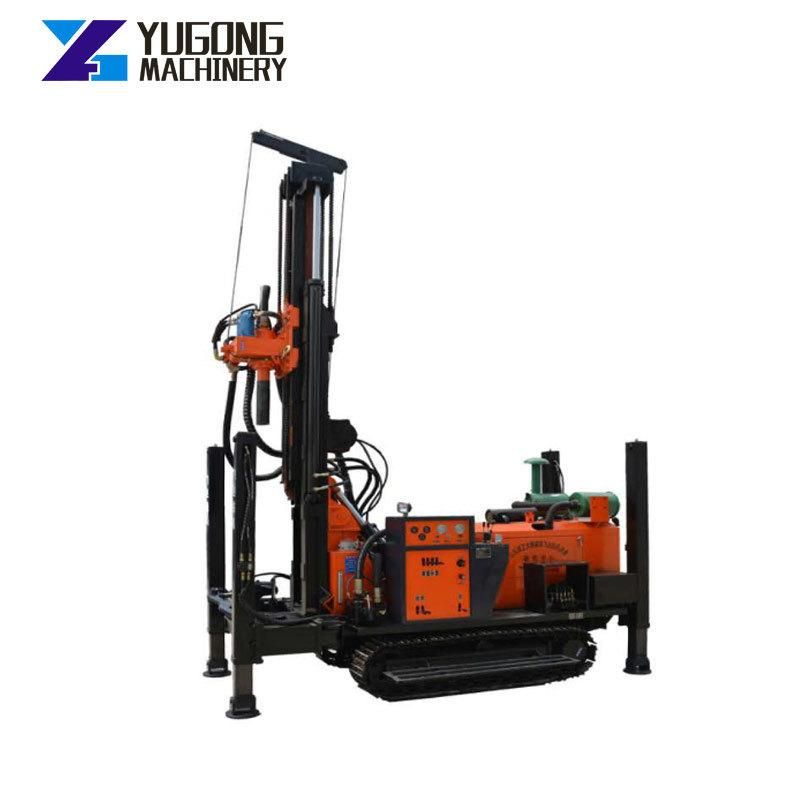

600m Trailer Mounted Deep Rotary Hydraulic Water Well Drilling Rig
Cheap 200m Depth Bore Hole Portable Rotary Water Well Drilling Rig Machine
Product DescriptionApplication Of Water Well Drilling Rig
This water well rig is a light, efficient and versatile drilling and drilling equipment powered by a diesel engine. It is mainly used for drilling wells, agricultural irrigation wells and other wells, especially for mountainous and rock formations. Water intake project. This series of rigs adopts new hydraulic technology, which is equipped with high-torque hydraulic motor rotation and large-bore hydraulic cylinder advancement.
Description Of Water Well Drilling Rig
Yugong multi-purpose deep water well drilling rig is our independent research and development products. Adopting newest model & advanced hydro technology, our water well drilling machine are mainly used for well drilling in resource exploration hydrology wells, civil use water well, agriculture irrigation project, and can also be used for coal-mine gas exploitation, coalbed methane, shallow layer of shale gas, terrestrial heat, or salvage work.
Made from high quality materials, with fashion and compact design, that keeps our drilling rigs more efficiency and with low failure rate, more economic and durable, and with a high comprehensive cost performance. Our water drilling rigs have received the real market validation as the majority of our customer's positive feedback.
Technical Parameters Of Water Well Drilling Rig
Model | YG-130 | YG-200 | YG-300 | YG-300A | YG-400 | YG-600 |
Weight(Ton) | 3 | 5.5 | 9 | 7 | 10 | 12 |
Drilling Diameter(mm) | 100~219 | 140~305 | 140~325 | 140~325 | 140~350 | 140~350 |
Drilling Depth(mm) | 130 | 200 | 300 | 260 | 400 | 6000 |
Walking Speed(Km/h) | 0.8 | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 |
Climbing Angles | 30 | 30 | 30 | 30 | 30 | 30 |
Power(Kw) | 32 | 65 | 84 | 75.8 | 95 | 115 |
Pressure(Mpa) | 1.45~2.5 | 1.7~3.0 | 1.7~3.3 | 1.7~3.0 | 1.7~3.5 | 1.7~3.5 |
Air Consumption(m³/Min) | 15~29 | 17~30 | 17~35 | 17~35 | 17~35 | 17~35 |
Drilling Pipe Diameter(mm) | 76/89 | 76/89/102 | 89/102 | 76/89/102 | 76/89/102 | 76/89/102 |
Drilling Pipe Length(M) | 1/1.5 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 | 1.5/2.0/3.0 |
Rig Lifting Force(T) | 5 | 18 | 28 | 24 | 24 | 30 |
Swing Speed(Rpm) | 40~65 | 50~70 | 55~115 | 40~70 | 45~115 | 45~115 |
Swing Torque(N.M) | 2600~4000 | 5000~6500 | 7200~9500 | 7000~9000 | 8500~10000 | 8500~10500 |
Dimension | 4000*1450*2050 | 3800*1700*2350 | 5500*1950*2780 | 4100*1900*2600 | 5200*2000*2780 | 5400*2100*2850 |
Product Details

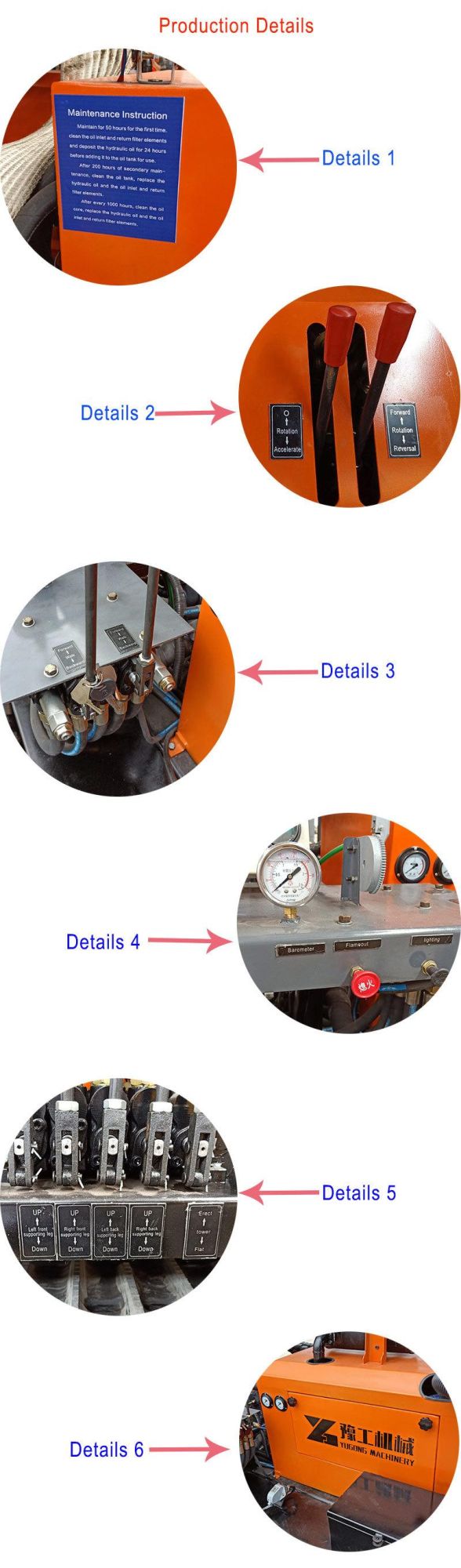

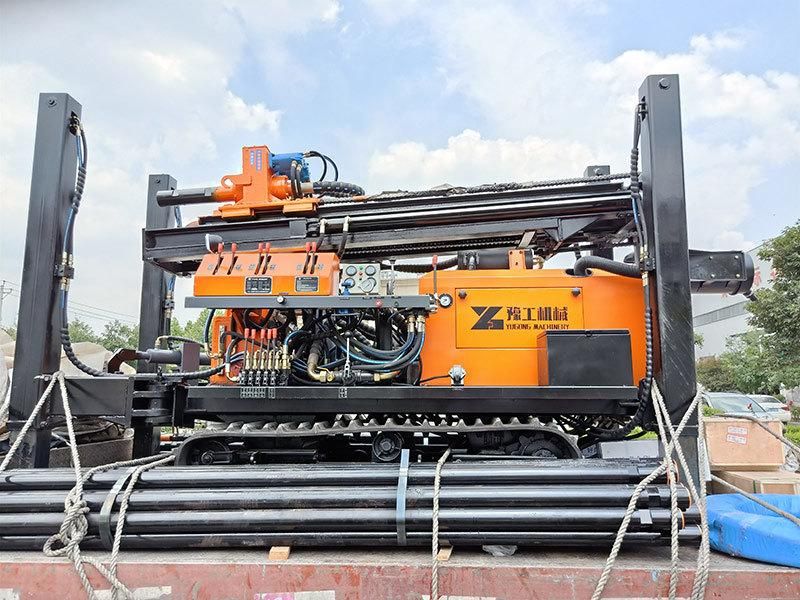

Details About The Water Well Drilling Rig

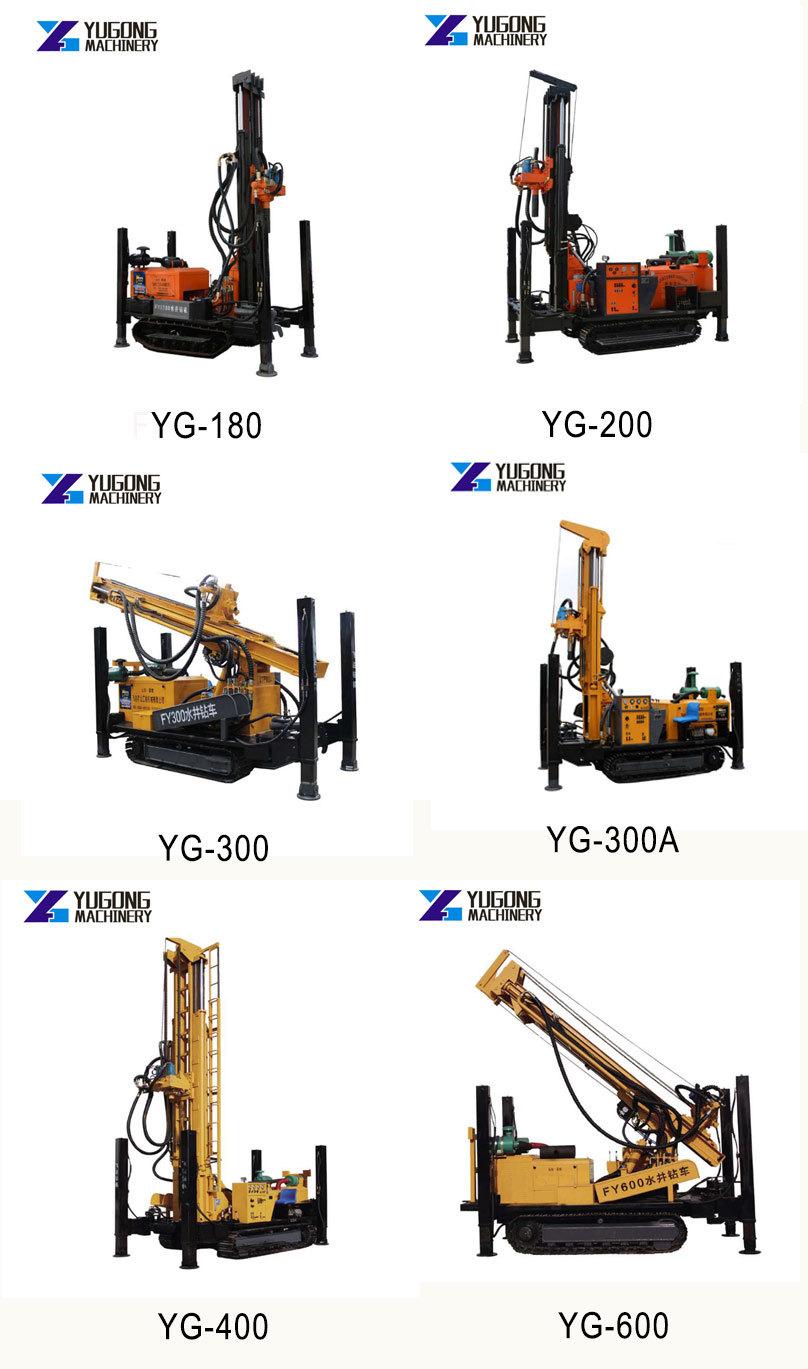

Related Products
Related Products About The Water Well Drilling Rig

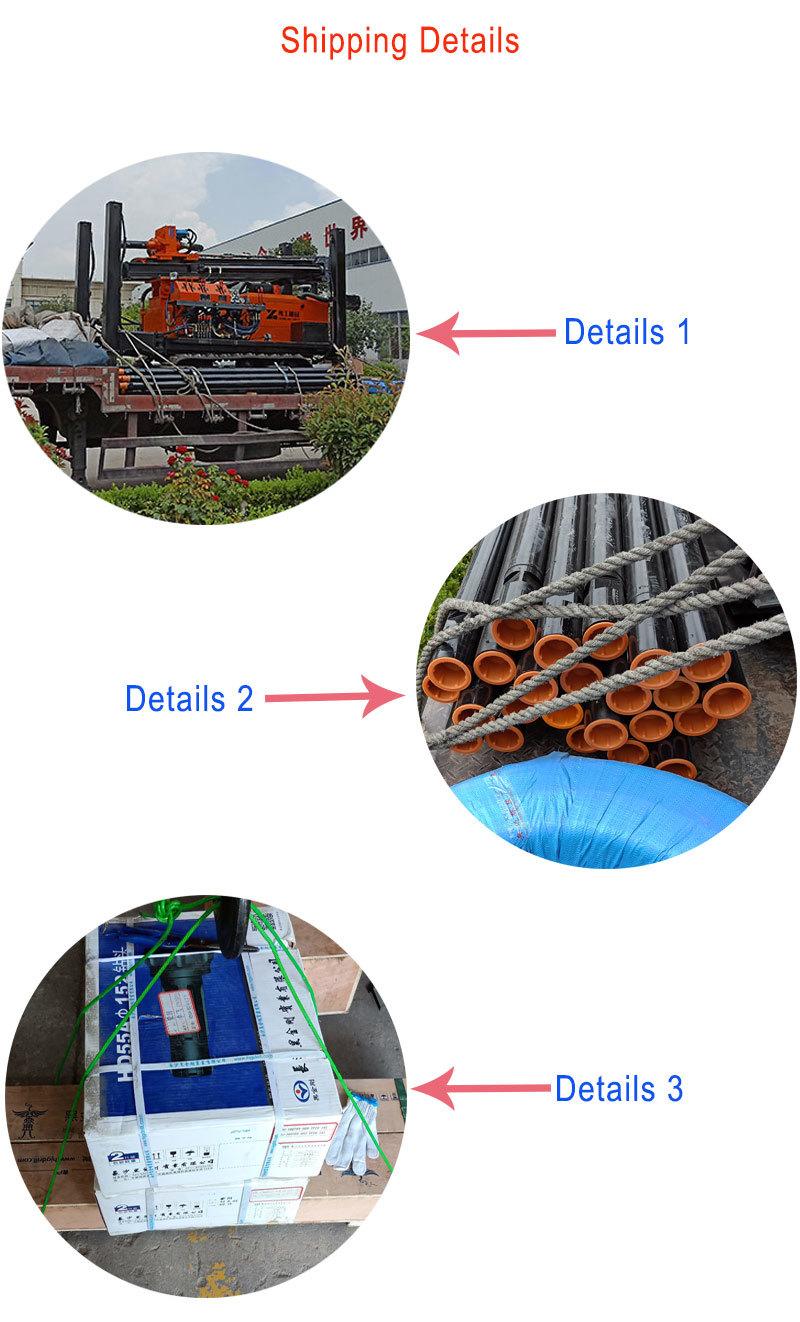

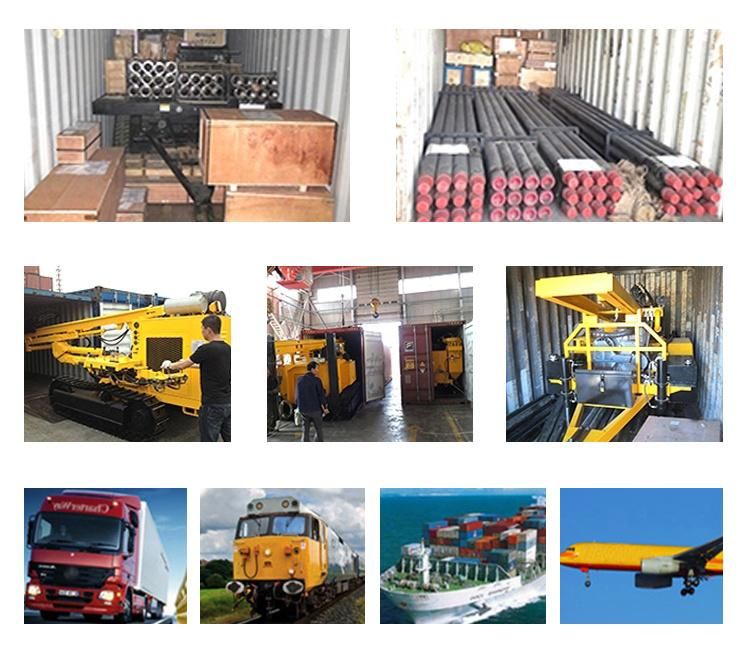

Packaging & Shipping
Packaging Details
1. Wrapped by protective film;2. Packed by standard import & export wooden cases or carton boxes;
3. Customized according to your requirement.
Delivery Time
Within one weekShipping
Port: Tianjin, Qingdao, Shanghai or other ports according to your requirements.Sea freight: FOB/CIF/DDU quotation are all available.
Transport method: By logistics; by automobile; by train; by shipping; by air etc.

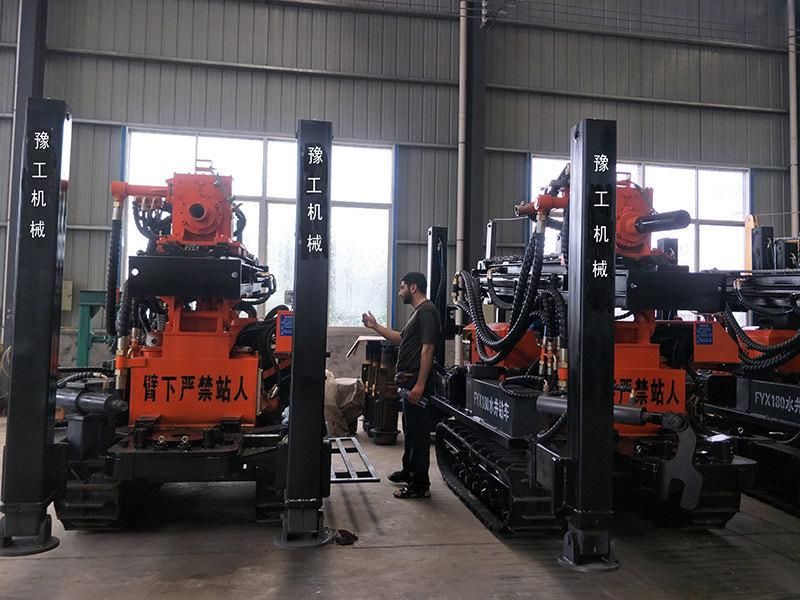

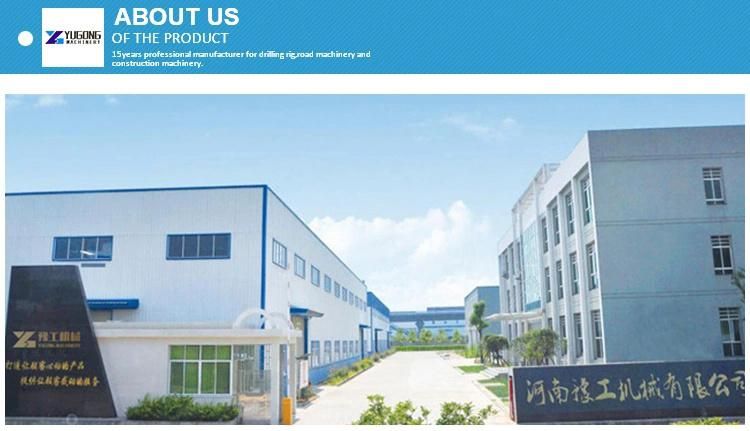

Company Information
Henan Yugong Machinery Co., Ltd. is a large machinery manufacturing enterprise which focuses on research and development, production and sales of mining, tunnel construction, road and bridge construction equipment and so on.
We believe that good quality can give us survival, thus we only provide you with top products. All the products with high quality meet international standards and are highly estimated by all clients at home and abroad.
All the staff in our company are professionally trained, so we can recommend you the most appropriate equipment. Every machine will be strictly examined before delivery. Any question about the machine will be replied within 24 hours. Welcome you to be our new client!
FAQ
1. Are you trading company or manufacturer?
We are original equipment manufacturer.
2. How long is your delivery time?
It depends on the model and quantity. Generally it is 3-5 days if the machines are in stock. It will be 15-30 days if you want to customize the machines.
3.Do you provide samples? Is it free or extra?
Yes, we can offer you the sample machine. But it's not free. You need to pay for the sample and the cost of freight.
4.What is your terms of payment?
We accept T/T, Western Union, Money Gram, Paypal, Alibaba Escrow etc. Payment<=USD 5000, 100% in advance. Payment>=USD 5000, 30% T/T in advance, balance before shipment.
5. can I get the sample to check?
After price confirmation, you can require for samples to check our product's quality. If you just need a blank sample to check the design and quality. We will provide you sample for free as long as you afford the express freight.
Our Services
1. Reply within 24 hours, professional answers.2. We provide free video guidance and telephone guidance.
3. During the warranty period, any quality appears, we refund it for free.
