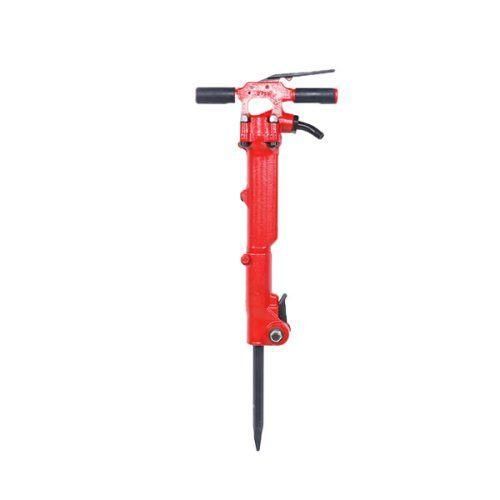

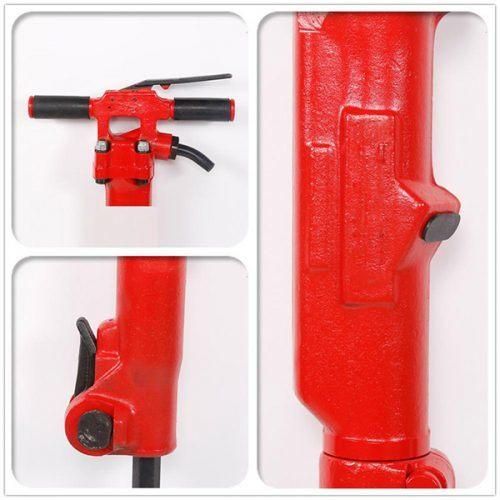

Pneumatic Hammer Paving Breaker / Pneumatic Concrete Breaker

XIAMEN PRODRILL EQUIPMENT CO., LTD.
  • Model No.：Tpb,40, 60, 90
  • Piston Diameter：44, 57,66
  • Air Consumption：1.6m3,Minute, 2.0m3,Minutes, 2.2m3,Minute
  • Weight：18 Kg , 30 Kg , 42kg
  • Transport Package：Carton or Wood Pallet
  • Specification：CE, SGS, ISO9001

Base Info

  • Model NO.：TPB 40,60,90
  • Trademark：prodrill
  • Origin：China
  • HS Code：84671900
  • Production Capacity：5000 Sets ,Month

Description

ModelTPB40TPB60TPB90Piston diameter44mm57.15mm66.67mmPiston stroke100mm146mm152mmImpact frequency900 minute/Time1250 minute/Time1400 minute/TimeNet weight18kg/39.6lbs30kg/60lbs42kg/92.4lbsTotal length660mm645mm723mmAir consumption1.6m3/minute2.0m3/minute2.2m3/minuteHose size19mm(3/4inch)19mm(3/4inch)19mm(3/4inch)Shank specifications1×4-1/4 25X1081×4-1/4 25X1081×4-1/4 25X108Inlet size3/4pt3/4pt3/4ptAir pressure0.63Mpa0.63Mpa0.63Mpa
Pneumatic Hammer Paving Breaker / Pneumatic Concrete Breaker
Pneumatic Hammer Paving Breaker / Pneumatic Concrete Breaker
