• Model NO.：ML-50A
• Type：Portable
• Stability：Good
• Rig Weight：58.2kg
• Power Type：Famous Gasoline Engine
• Transport Package：in Plywood Case
• Specification：50A
• Trademark：csmiracleland
• Origin：Changsha, China
• HS Code：8430691900
• Production Capacity：30 Sets,Month

Basic Info.

Model NO. ML-50A Type Portable Stability Good Rig Weight 58.2kg Power Type Famous Gasoline Engine Transport Package in Plywood Case Specification 50A Trademark csmiracleland Origin Changsha, China HS Code 8430691900 Production Capacity 30 Sets/Month

Product Description

This machine is the most important in the years of construction engineering exploration and practice of machine, solid and durable, easy operation, and to undertake all types of engineering investigation project, railway grouting engineering, mine goaf grouting, pile pulling water core reinforcement engineering, all kinds of mineral geological drilling, various foreign engineering survey project.

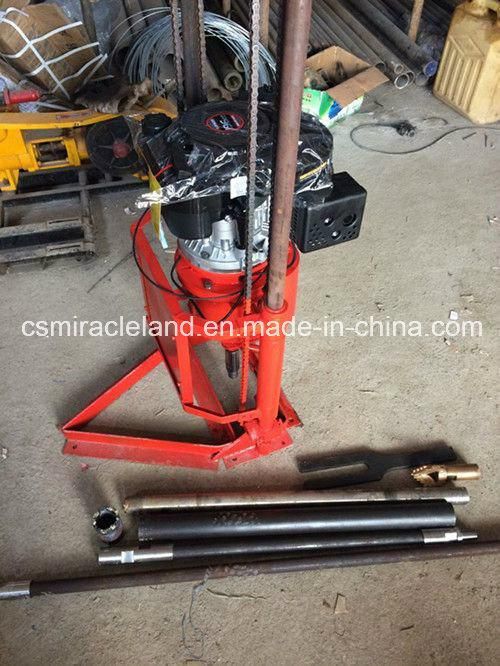

ML-50A drilling rig is a lightweight, remove bracket shallow hole portable rig is remote desert area, road traffic inconvenience anhydrous areas without electricity covering layer, rock or concrete on the ground drilling depth of 50 meters hole and the development of special products, application in geological survey, exploration engineering, mines, roads, construction, National defense and other fields of drilling surface census hole, hole trenching, highway sampling hole, Qiaolan mounting hole or blasting hole. Suitable for environmental geology, agricultural geology, geological disaster management, small bridge, soil subgrade, small retaining wall core identification, highway maintenance, etc.. Its main features are: light weight, strong disassembly, good guide, can be adapted to the needs of a variety of drilling.

The machine adopts imported gasoline engine as a driving force (the customer can also choose domestic brands engine), easy starting, reliable operation, manipulation is simple, and is equipped with a synthetic diamond thin-wall drill and drill size can be for users to choose.

This function takes the depth of 50 meters, in the electric power exploration project, coal oil exploration, jade exploration and other types of exploration projects on a wide range of applications, easy to operate, simple and durable.





Technical Figures:


Type	ML-50A
Power	Famous gasoline engine
Drilling depth(m)	48.6
Drilling hole diameter (mm)	35-68
Borehole water consumption (L/h)	9.8
Gross weight (kg)	58.2
Feeding speed	Quartzite     106mm/min
	Killas         182mm/min
	Basalt        218mm/min
	Sandstone     235mm/min
	Dolomite      352mm/min
	Limestone     412mm/min
