• Model NO.：DR-100
• Type：Crawler or Wheel
• Usage：Pile Driver, Drill Hole Flling Pile Construction
• Engine：Cummins
• Drilling Diamete：500-1500mm
• Power Source：Diesel
• Drill Rod Type：Kelly Bar
• Color：Customized
• Drilling Depth：10-20m
• Drill Tools：500-1500mm Drill Bit
• Engine Rated Power：110kw
• Power Head Speed：10-50rpm
• Transport Satus Width：2600mm
• Transport Status Height：3350mm
• Chassis Length：3700mm
• Track Width：600mm
• Maximum Torque of Power Head：100kn.M
• Transport Package：Rotary Drillingrig Package According to The Custom
• Specification：11500mm*2600mm*3350mm
• Trademark：DingLi
• Origin：China
• HS Code：8430509000
• Production Capacity：20 Sets,Month

Basic Info.

Model NO. DR-100 Type Crawler or Wheel Usage Pile Driver, Drill Hole Flling Pile Construction Engine Cummins Drilling Diamete 500-1500mm Power Source Diesel Drill Rod Type Kelly Bar Color Customized Drilling Depth 10-20m Drill Tools 500-1500mm Drill Bit Engine Rated Power 110kw Power Head Speed 10-50rpm Transport Satus Width 2600mm Transport Status Height 3350mm Chassis Length 3700mm Track Width 600mm Maximum Torque of Power Head 100kn.M Transport Package Rotary Drillingrig Package According to The Custom Specification 11500mm*2600mm*3350mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description

Product Details

The borehole diameter is 450-1600 mm, and the borehole depth can reach 20 meters, which is suitable for pile foundation construction in infrastructure projects. It is used for drilling operations in loose soils such as sand, clay, and silty clay. It is widely used in water conservancy, port, foundation reinforcement, and continuous wall foundation engineering construction. It can meet the construction requirements of most basic engineering projects.






 Parameter

model	DR-100
Working mode	hydraulic oil cylinder pressure
Drilling diameter (mm)	Φ500-Φ1800
drilling depth (m)	5-30m
Diamension (mm)	11500X2800X3400mm
Total weight (t)	25T
Power head max output torque (KN.m)	100KN.m
Rotary speed (r/min)	10-50RPM
Main winch max lifting force	150KN
Main winch max lifting speed	50m/min
Assisting winch max lifting force	15KN
Assiting winch max lifting speed	50m/min
Mast sidewards inclination	±4°
Mast forwards inclination	4°
Max working pressure	32Mpa
pilot pressure	3.5Mpa
Travelling speed (km/h)	4 km/h
Diesel engine power (KW)	151KW ,cummins ,water cooling ,turbo charger

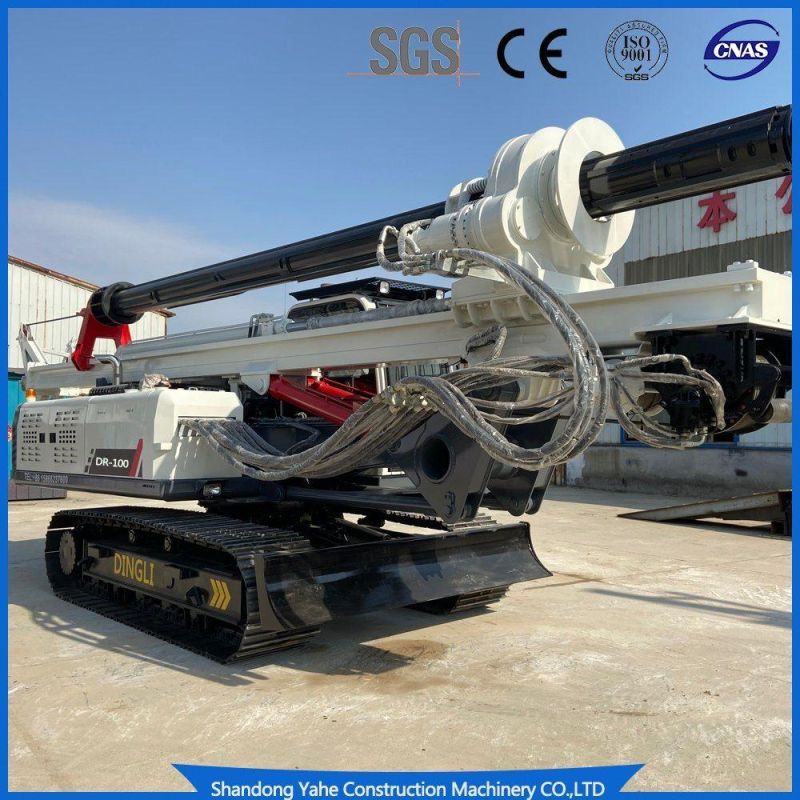

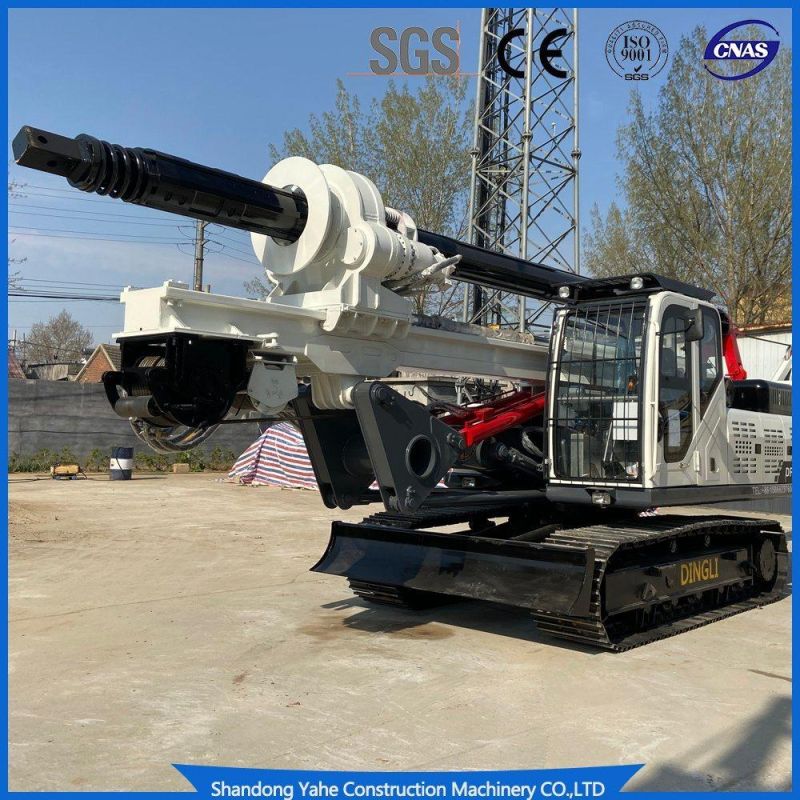

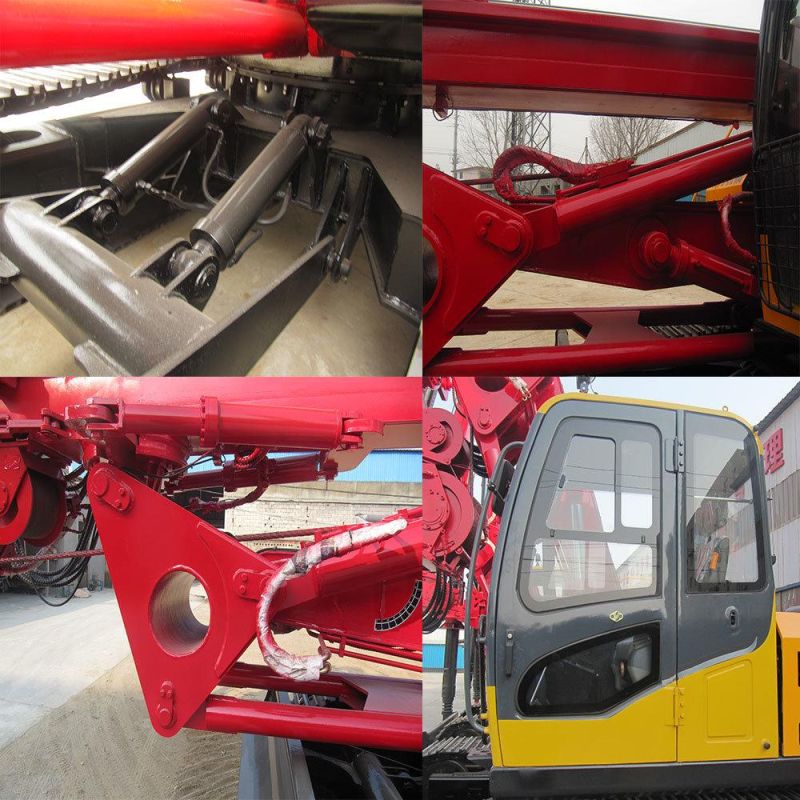

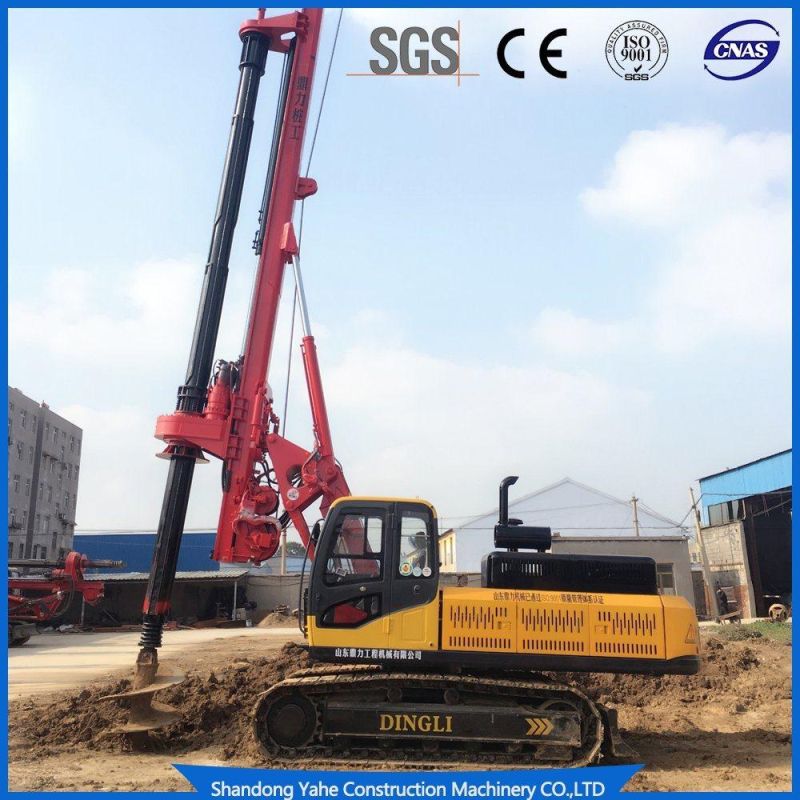

Machine Photos
















Exhibition




Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.


Service


1. Pre-sale service:

1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.  2) Welcome to visit us at any time, we will pick you up.

2. Sale service:

1) Keep clients updated when our company gets advance payment. 2) Confirm production details with clients. 3) Take photos and send all pictures to customers during production. 4) Inspection and testing the product before delivery;  5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.  6) logistics service if needed.

3. After Sale service:

1) Provide foundation drawing to the clients for installation. 2) Besides, our engineers are available to help with installation and workers training. 3) Repairing and maintenance if any problem during the warranty.
