China Zoomlion Zr280 Hydraulic Rotary Drilling Rig
Maxizm Construction Machinery (Qingdao) Co., Ltd.- After-sales Service：Online Service
- Warranty：One Year
- Certification：CE, ISO 9001:2000
- Condition：New
- Drill Hole Diameter：250-300mm
- Drill Hole Depth：50-70m
Base Info
- Model NO.：ZR280
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Crawler
- Voltage：220V
- Weight：64000 Kg
- Drilling Depth：56m
- Power Type：Diesel
- Usage：Ore
- Transport Package：Nude Packing
- Specification：12300*3200*27884 mm
- Trademark：Zoomlion
- Origin：China
- HS Code：8430509000
- Production Capacity：1000,Year
Description
Overview
Product DescriptionNAME SPEC. Torque(KN.M) 280 Drilling Diameter(mm) 2500 Drilling Depth(m) inter-locking 56 Friction 86 Drilling Speed(r/min) 8-24 Engine Model Cumins QSM11 Rated Power(kw) 261 Rated Engine Speed(r/min) 2100 Max.Crowd Force(kN) 200 Max.Crowd Cylinder Pull(kN) 220 Line Pull(main winch)(kN) 274 Line Speed(main winch)(m/min) 68 Line Pull(aux.winch)(kN) 90 Line Speed(aux.winch)(m/min) 66 Operating Mass(t) 86 Traction Force(kN) 423 Diesel Tank(L) 68 Rope diameter(Main winch)(mm) 32 Rope diameter(auxiliary winch)(mm) 22

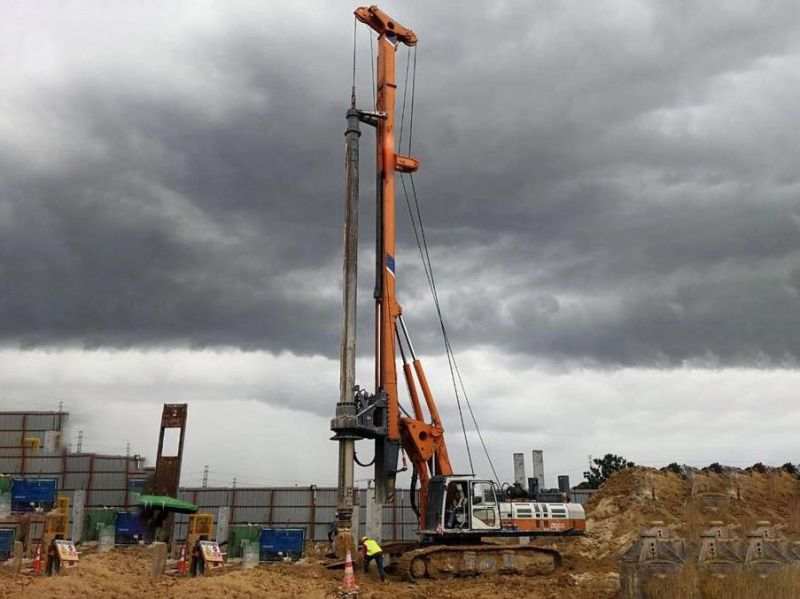

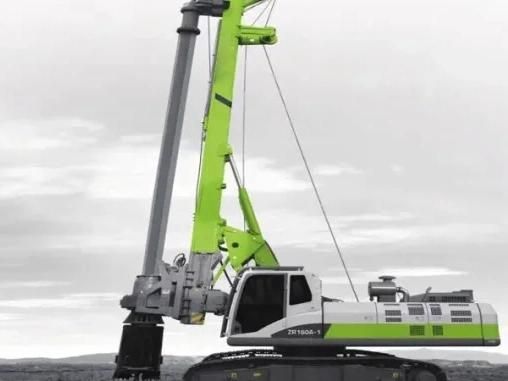

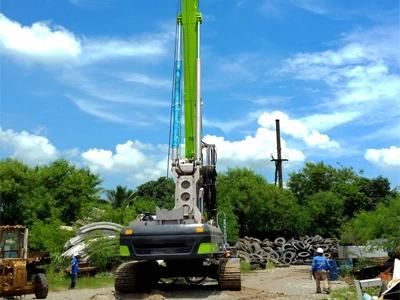

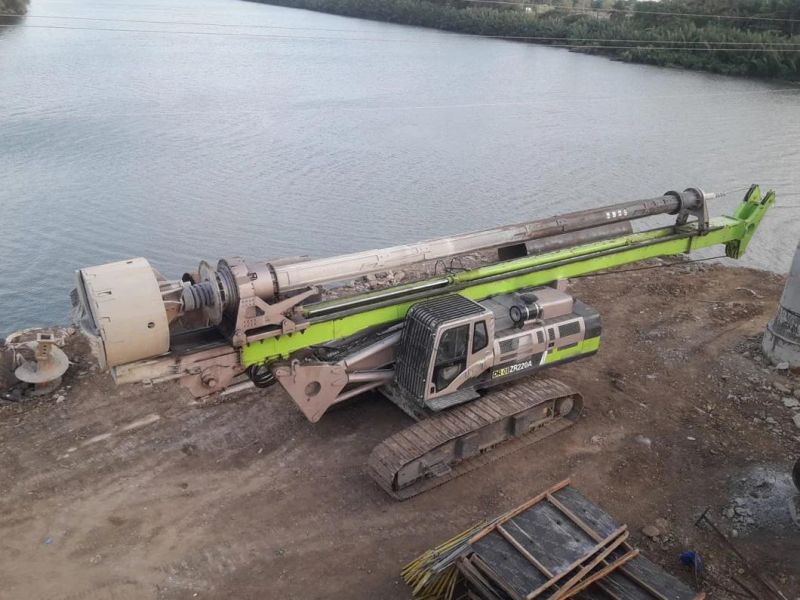

Detailed Photos
Product Parameters
Detailed Photos
