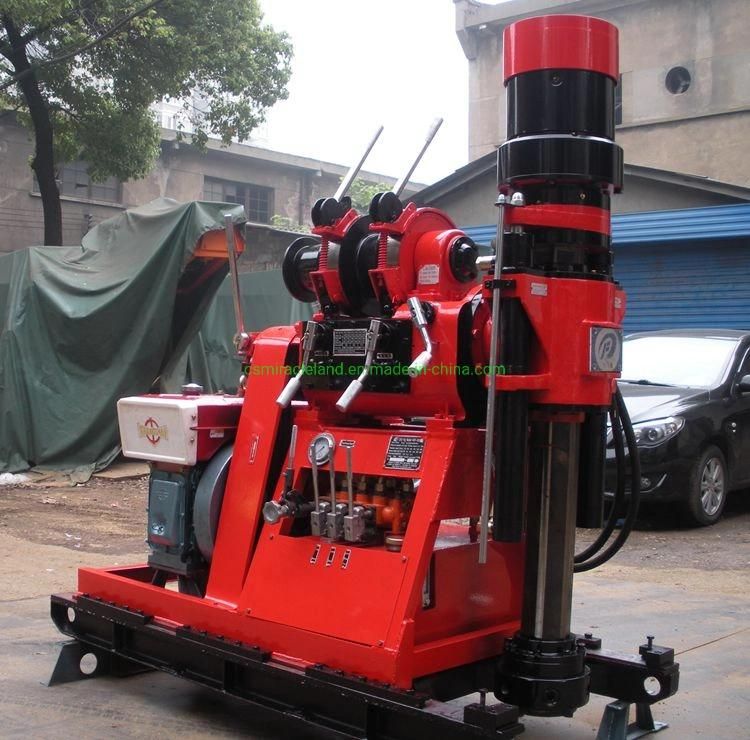

Geotechnical Sample Corer Drilling Rig (HGY-200)
Changsha Miracleland Import & Export Co., Ltd.- After-sales Service：1 Year
- Warranty：1 Year
- Certification：ISO 9001:2008
- Condition：New
- Drill Hole Diameter：76-300mm
- Drill Hole Depth：200m
Base Info
- Model NO.：HGY-200
- Bit Type：Diamond Bit
- Drilling Way：Rotary
- Type：Core Drilling Rig
- Chuck：Hydraulic Chuck
- Quality：High Quality
- Dimensions：1860X800X1400mm
- Usage：Water Well, Geotechnical
- Power Type：Diesel

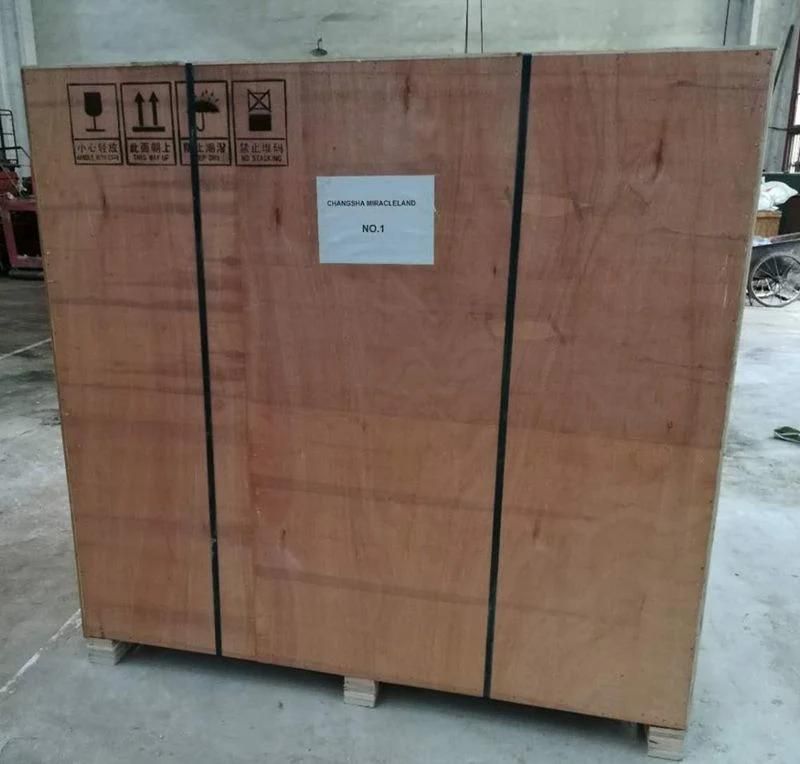

- Transport Package：in Plywood Case
- Specification：200
- Trademark：csmiracleland
- Origin：Changsha, Hunan, China
- HS Code：8430691900
- Production Capacity：20 Sets,Month
Description
Overview
Product Description
LxWxH(mm): 1860x800x1400;
Spindle stroke(mm): 500;
Diesel engine: Zs1110(14.7 KW);
Electromotor: Y160L-4(15KW);
Product Features:
Good stability and high reliability.
Multilevel positive and reverse rotate speed.

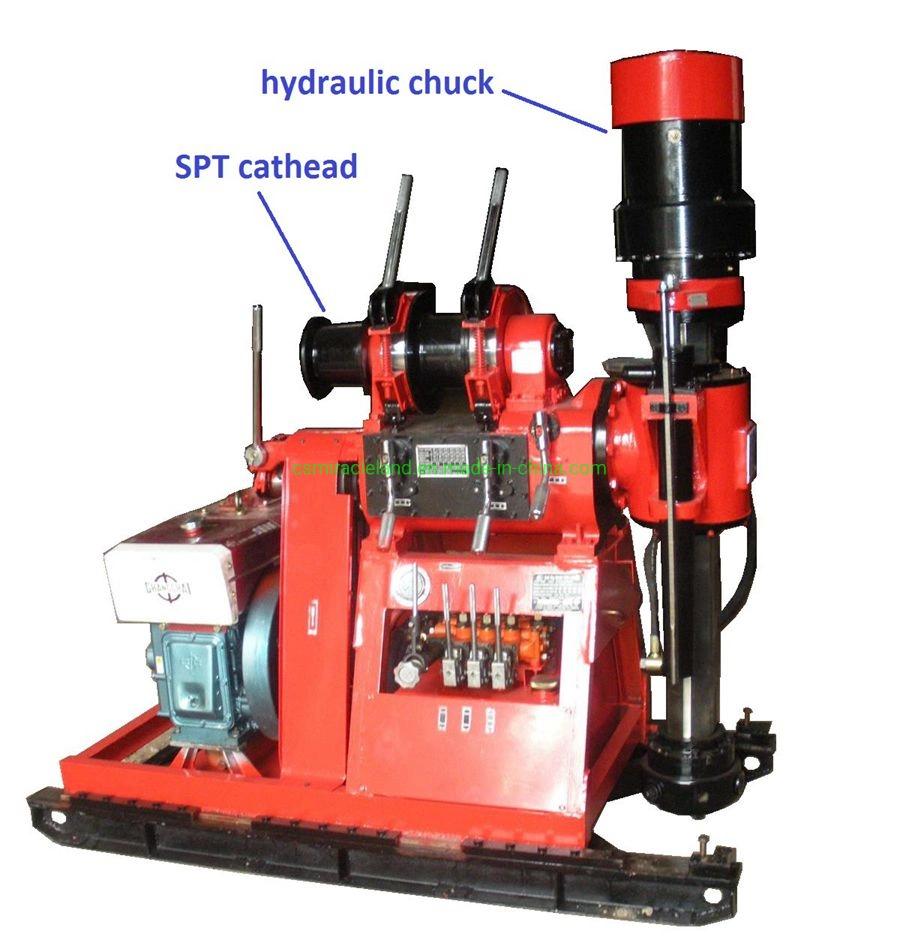

The complete hydraulic chuck and vertical spindle.
Convenient to transport with the small volume and light weight.
Perfect frame's rigidity, low center of gravity and good stability.
Product Application:

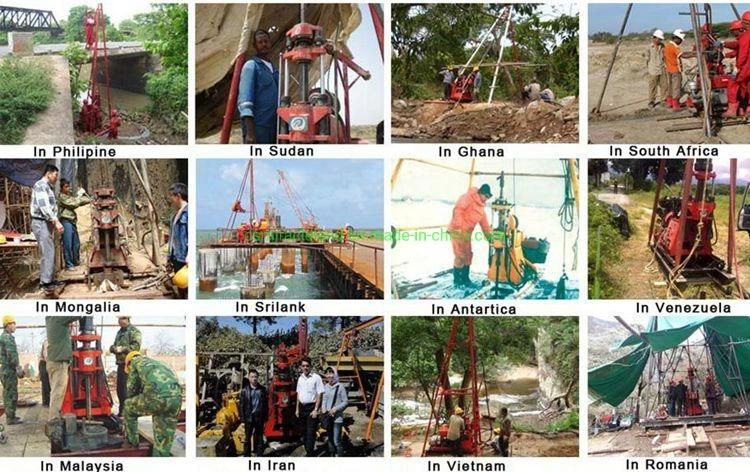

It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Product Parameters
HGY-200 Borehole Drilling Rig:
Drilling depth(m): 200;LxWxH(mm): 1860x800x1400;
Spindle stroke(mm): 500;
Diesel engine: Zs1110(14.7 KW);
Electromotor: Y160L-4(15KW);
Product Features:
Good stability and high reliability.
Multilevel positive and reverse rotate speed.
The complete hydraulic chuck and vertical spindle.
Convenient to transport with the small volume and light weight.
Perfect frame's rigidity, low center of gravity and good stability.
Product Application:
It is widely used in the construction of the projects e. g. Prospecting, railway, road, port, bridge, water conservancy and hydropower, tunnel, well, industrial and civil construction, geological exploration, large diameter boring pile and small diameter diamond core deep hole drilling, etc.
Product Parameters
The Technological Data of HGY-200 Drilling Rig:
Related Photos
