Integrated Rock Blasting Drilling Rig with Air Compressor for Mining

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Condition：New
  • Drill Hole Diameter：80-115mm
  • Drill Hole Depth：20
  • Bit Type：DTH
  • Drilling Way：Impactor
  • Rock Hardness：F=6~20

Base Info

  • Model NO.：D535T
  • Walking Speed：2-3.2km,H
  • Working Pressure：1.45MPa
  • Air Consumption：12m3
  • Weight：7000kg
  • Diesel Engine：Cummuns Qsb5.9
  • Power：158kw
  • DTH Hammer：3.5inch
  • Drill Bit：90mm
  • Drill Rod：60mm*3000mm
  • Transport Package：Nude Packing
  • Specification：6300*2410*2700mm
  • Trademark：ZEGA
  • Origin：China
  • HS Code：8432412200
  • Production Capacity：300sets,Month

Description

Technical specificationsRecommended hole size80-115mm108-127mmHammer size3.5 inch4 inchHydraulic Rotary HeadRotation speed0-110 rpm0-90 rpmMax.work torque1450 N.m2479 N.mEngine type Engine modelCummins QSB5.9Cummins QSC8.3Rated power158KW194KWEmission StandardEU Stage III ATier 3Fuel tank capacity170 L420LCompressorBrandZEGAZEGAMax. Work Pressure14.5 bar17 barF.A.D12 m³/min15 m³/minFeed beamFeed typeCylinder-chainCylinder-chainTotal length5340 mm5340 mmFeed travel length3200 mm3200 mmFeed extension960 mm1200 mmMax. feed speed0.75 m/s0.75m/sMax.feed force15 KN21 KNMax.pull up force25 KN40 KNChassisMax.tramming speed3km/h3km/hMax.traction force65 KN71 KNTrack Frame Oscillation +/- 10° +/- 10°Ground clearance540 mm360mmDimensionLength*width*height6050*2560*2720 mm7150*2500*2800 mmWeight6850 kg10500 kg

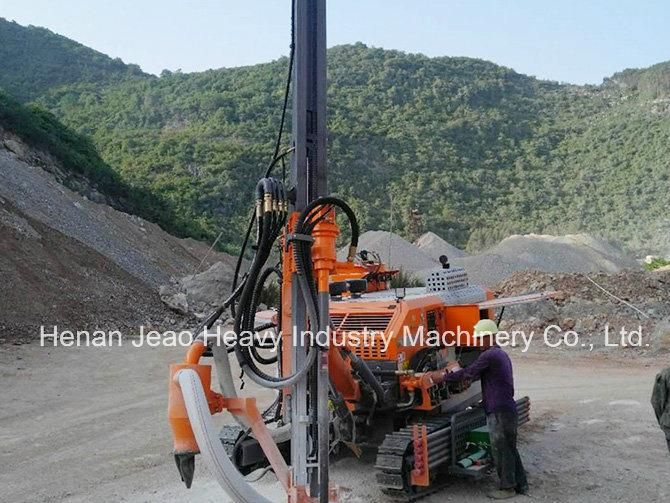

Integrated Rock Blasting Drilling Rig with Air Compressor for Mining

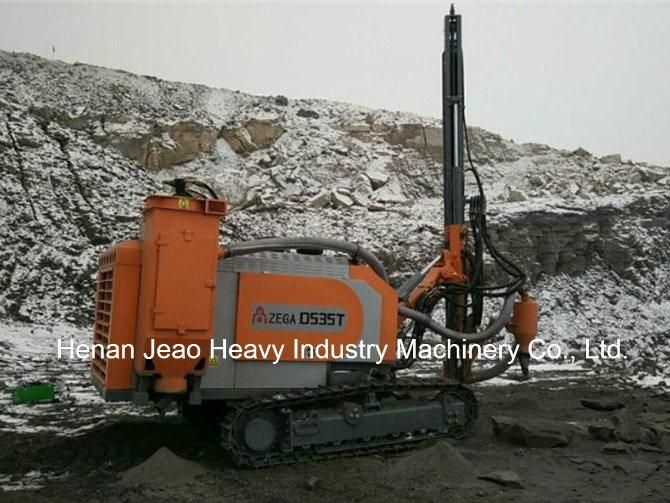

Integrated Rock Blasting Drilling Rig with Air Compressor for Mining
