• Model NO.：HF80
• Drilling Way：Rotary
• Type：Drilling Machine
• Drilling Depth：80m
• Drilling Diameter：75-300mm
• Size：Portable Type
• Use：Water Well, Bore Hole, Farm Irrigation
• Mining Object：Water Well Drilling, Bore Holes
• Usage：Water Well
• Power Type：Diesel
• Transport Package：Export Conventional Package
• Specification：1100X600X500mm
• Trademark：Hanfa
• Origin：China
• HS Code：8430490000
• Production Capacity：25 Sets,Month

Basic Info.

Model NO. HF80 Drilling Way Rotary Type Drilling Machine Drilling Depth 80m Drilling Diameter 75-300mm Size Portable Type Use Water Well, Bore Hole, Farm Irrigation Mining Object Water Well Drilling, Bore Holes Usage Water Well Power Type Diesel Transport Package Export Conventional Package Specification 1100X600X500mm Trademark Hanfa Origin China HS Code 8430490000 Production Capacity 25 Sets/Month

Product Description

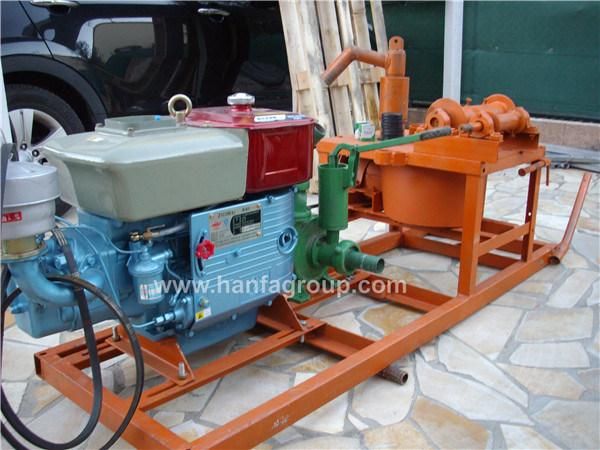

Hf80 Economical Water Well Drilling Rig






HF80 Small Water Well Drilling Rig is one most portable water well drilling rig. 1. Practical and durable in use. 2. Easy to operate, only 1-2 people can handle it well. 3. Portable and economical, can be owned by common family. 4. With 12HP diesel engine.

I. Application

HF80 water well drilling rig mainly used for farm irigation and water well drilling, drilling diameter is 70-300mm, and drilling depth is 60-80m.
It also can be used in small building piling, like farmhouse or factory and so on, the drilling diameter can reach 500mm and depth can be more than 10m.

II. Features and Advantages

1. Light weight. The main engine is only weighted 0.135tons.
2. Easy to operate. Can be handled without experience.
3. Durable. The first generation of products used for 13 years, drilled more than 4000 water wells, nearly no repair record except the drilling bits.
4. Can drill through hard stratum, unless thick rock layer.
5. Can drill deep. Equipped with reels, reduce the labor intensity.
6. High efficiency, the drilling speed can reach 20meters depth per hour, in plain area.
7. Economical. It can be called the most economical water well drilling machine.

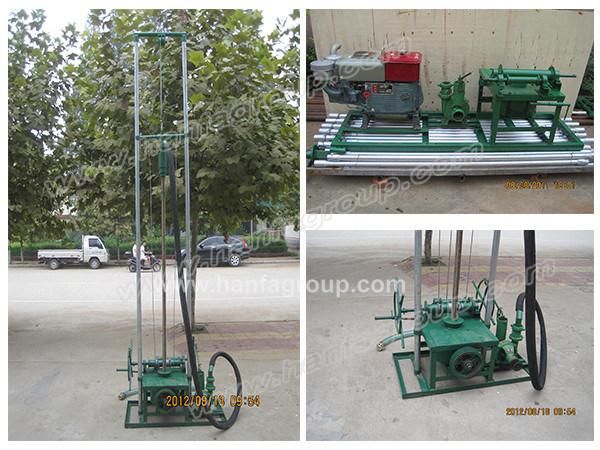

HF80 water well drilling rig
Drilling depth	60-80m
Drilling diameter	70-300mm
Power Engine	12HP
Dimension(LXWXH)	1100X600X500mm
Weight	0.135 t

Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.

Customers visit our factory

With all the effort put in, we have successfully marketed our products to almost every corner of the world. Here are the pictures of our clients' visits and our clients' on-the-site operation.

About the product Packing

To protect drilling rigs during sea transportation, we give them proper packing.
HF130, HF80, HF150E, HF150, HF200, HF30: Wooden case
HF-3, HF-4, HFDX-6. HF-8, HFT200, HFT350B: Plastic woven bag
Spare parts: Wooden case or plastic woven bag
HFT-200, HFT-3: Nude, main machine in plastic woven bag.


Quality guarantee

Our products has been authorized and certified by TUV and ISO9001: 2008. We guarantee the quality of the machines for one year after the trial run (excluding the wearing parts), but not exceeding 15 months from the date on which machines leave the factory
