Hydraulic Crawler Pneumatic Blasthole Drill DTH Hammer Surface Mine Drilling Rig

Henan Yugong Machinery Co., Ltd.
  • After-sales Service：Video Technical Support
  • Warranty：1 Year
  • Certification：ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：10-30m

Base Info

  • Model NO.：YG-130,180,200
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Type：Crawler
  • Drilling Diameter：90-130mm
  • Drilling Depth：25m
  • Drilling Rotate Speed：110r,Min
  • Working Air Pressure：0.5-1.0MPa
  • Cylinder Diameter：140mm
  • Propulsion Stroke：1070mm
  • Max Propelled Force：9600n
  • Air Consumption：13m3,Min
  • Transport Package：Wooden Case
  • Specification：2280*440*550mm
  • Trademark：YG,YUGONG
  • Origin：Henan, China
  • HS Code：8430390000
  • Production Capacity：1200sets,Month

Description

Overview Product Description


Packaging & Shipping

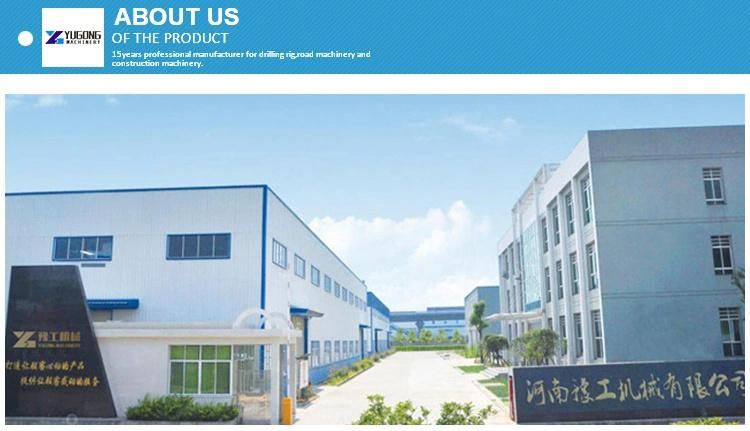

Company Profile

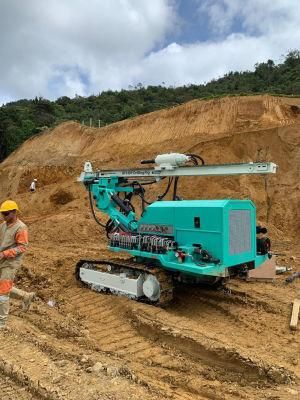

Hydraulic Crawler Pneumatic Blasthole Drill DTH Hammer Surface Mine Drilling Rig
Our AdvantagesFAQ

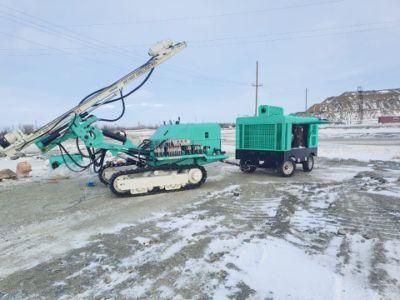

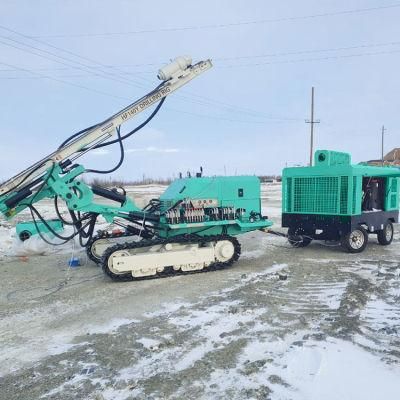

Hydraulic Crawler Pneumatic Blasthole Drill DTH Hammer Surface Mine Drilling Rig
