Drilling Rig

Hydraulic 600m 800m Water Well Drilling Rig in China

Shandong JK Machinery Co., Ltd.
  • Certification:CE, ISO 9001:2008
  • Condition:New
  • Motor:DC Motor
  • Drill Hole Diameter:140-350mm
  • Drill Hole Depth:600m
  • Bit Type:Diamond Bit

Base Info

  • Model NO.:JK-DR600
  • Drilling Way:Rotary
  • Type:Crawler

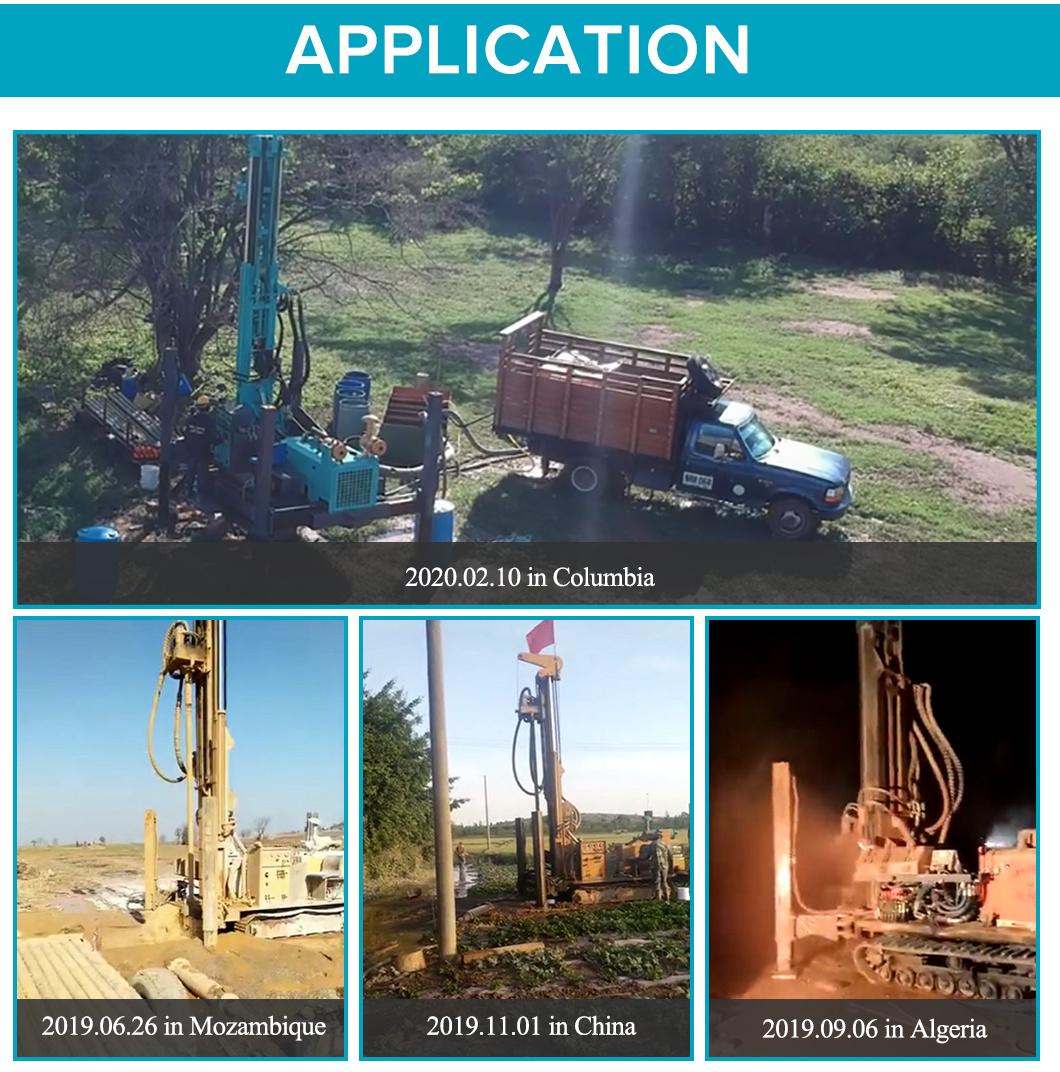

  • Usage:Water Well
  • Voltage:24V
  • Weight:12t
  • Warranty:1 Year
  • Power Type:Diesel
  • Product Name:Water Well Drilling Rig
  • Power:132kw

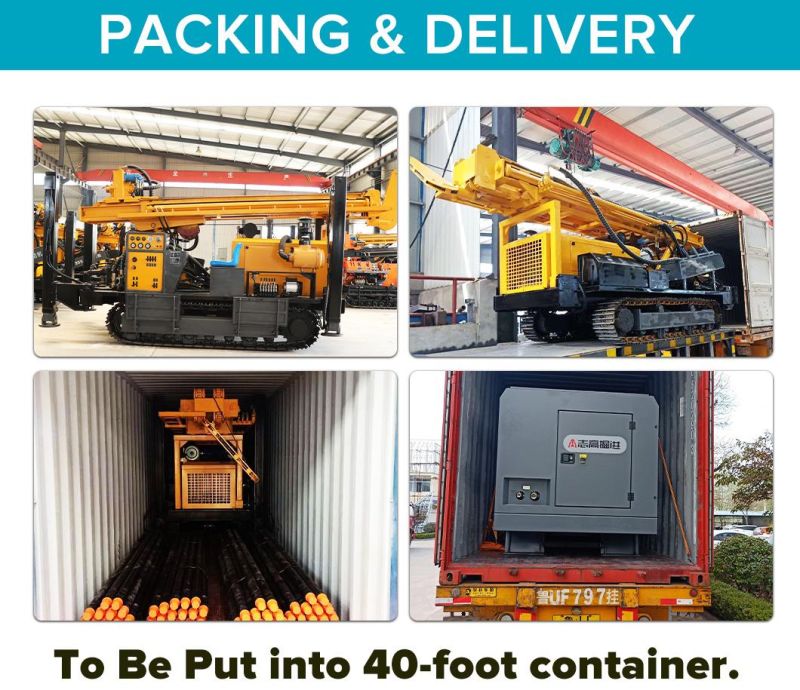

  • Transport Package:40hc
  • Specification:6000*2200*2850mm
  • Trademark:SDJK
  • Origin:Shandong
  • HS Code:8430412100
  • Production Capacity:100sets,Month

Description

The Main Parameters  ModelJK-DR600Weight12T Bore diameter140-350mm Drilling depth600m Stroke6.6m Travelling speed2.5km/h Gradeability30% Power 132KW Rated pressure1.7-3.5mpa Air consumption17-35m³/min Drill rod diameterΦ102, Φ108 , Φ114  Drill rod length1.5m 2.0m 3.0m 6.0m Elevating capacity28T Swing speed45-115rpm Swing torqu8500-11000N.M Dimensions6000*2200*2850mmHydraulic 600m 800m Water Well Drilling Rig in China
