• Model NO.：HF100T
• Type：Four-Wheel trailer
• Drilling Depth：120m
• Drilling Diameter：90-130mm
• Mining Object：Water Well, Geothermal Heating
• Max Working Pressure：1.8MPa
• Drill Pipe Diameter：60,76 mm
• Drill Pipe Length：2.00 Meter
• Drill System Operation：Hydraulic
• Usage：Water Well
• Power Type：Diesel
• Dimension：3400*1350*2200mm
• Transport Package：Conventional Packing
• Specification：CE, ISO
• Trademark：HF
• Origin：Zhengzhou City
• HS Code：8430490000
• Production Capacity：20 Sets Per Month

Basic Info.

Model NO. HF100T Type Four-Wheel trailer Drilling Depth 120m Drilling Diameter 90-130mm Mining Object Water Well, Geothermal Heating Max Working Pressure 1.8MPa Drill Pipe Diameter 60/76 mm Drill Pipe Length 2.00 Meter Drill System Operation Hydraulic Usage Water Well Power Type Diesel Dimension 3400*1350*2200mm Transport Package Conventional Packing Specification CE, ISO Trademark HF Origin Zhengzhou City HS Code 8430490000 Production Capacity 20 Sets Per Month

Product Description

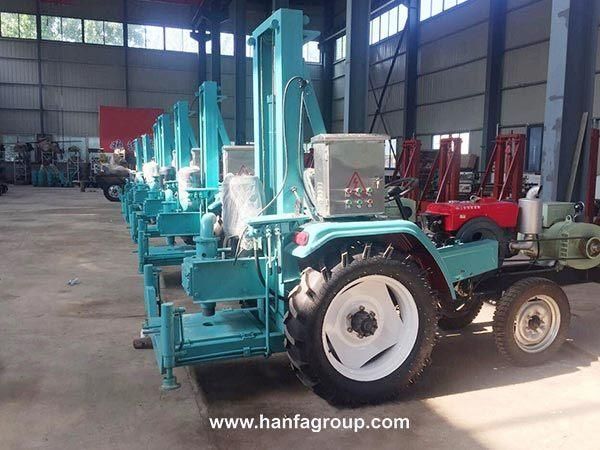

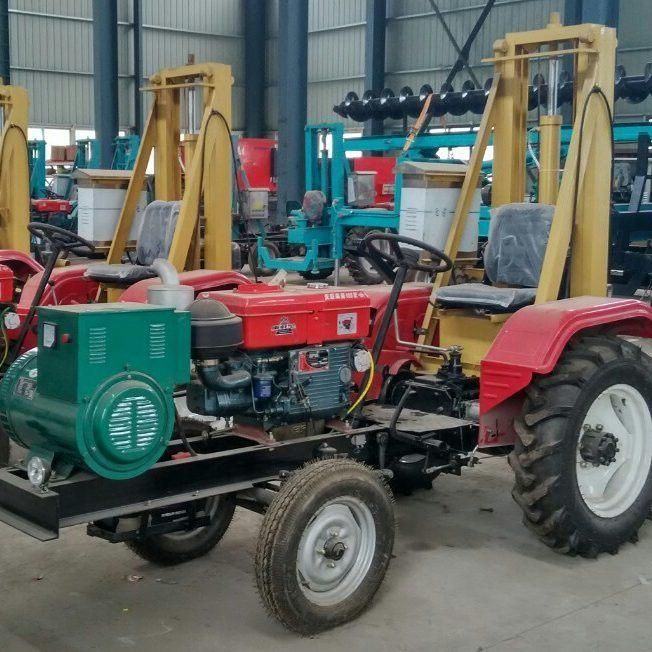

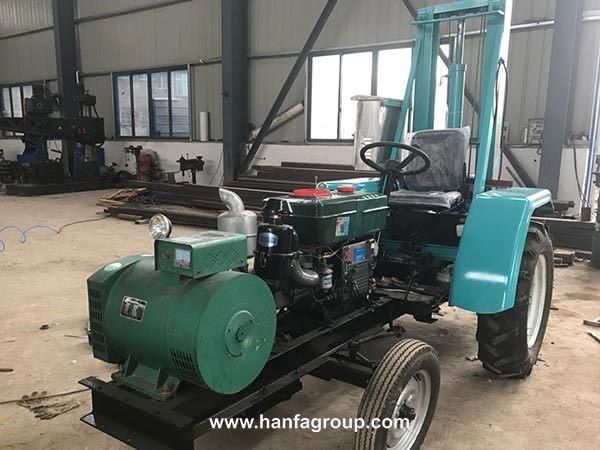

hf100t High sensitive useful drilling rig for water portable

Application

(1) Its movement and transportation are very easy with small truck
(2)Hydraulic system, convenient for operation.
(3)Diesel engine for power,can be used in any area, especially the place where the electricity is not available.
(4)It can be used for wells, core drilling, rock sampling, geological survey and exploration.
The HF120W is a Trailer mounted water well drilling rig, compact fully hydraulic, for down-the-hole
The drilling rig is mainly used for piling anchor, water Wells, photovoltaic solar spiral pile,
DTH blasting construction, etc. The Technical parameters as follow:










Technical Data


Description	HF120W
Geology drilled	All kinds
Drill depth	0-120 m
Drilling Diameter	90 -140mm
Drill system and operation	Hydraulic

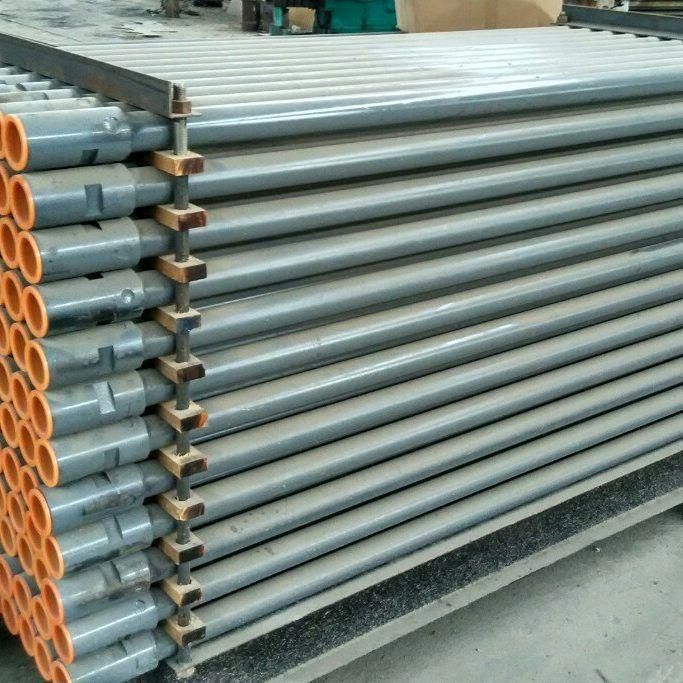

DRILL PIPE
Drill pipe length	2.00 meter
Drill pipe diameter	60/76 mm
MUD PUMP
Flow capacity	200 liter/min
Max. working pressure	1.8MPA
HYDRAULIC SYSTEM
Hydraulic tank capacity	140 liter
DIMENSIONS
Overall length	3200 mm
Overall width	1400 mm
Overall height	1500 mm
Diesel engine
Power	16.2KW

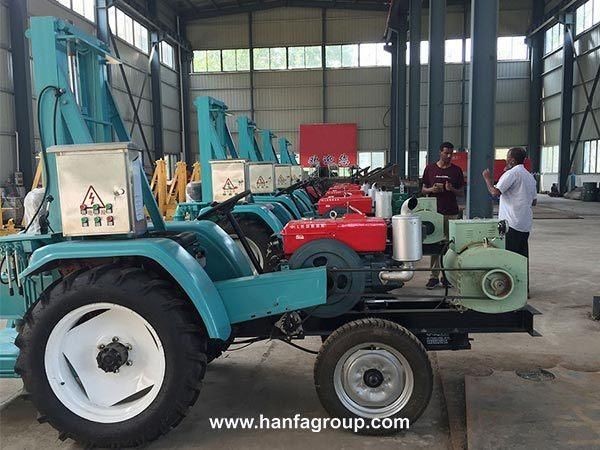

Production ability

We have more than 50 sets of processing equipment to ensure the quality of our product, which has proved worthy by our client's recognition. And these equipments ensure large production capacity and adequate stock.
We have all the small models in stock all year long and the bigger ones ready within 15-30 days.
