Tunnel Boring Machine Xtr4 / 230 Roadheader

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Online Support
  • Warranty：Online Support
  • Certification：CE
  • Condition：New
  • Drill Hole Diameter：250-300mm
  • Drill Hole Depth：30-50m

Base Info

  • Model NO.：Xtr4 , 230
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Max.Drilling Depth：55m
  • Transport Package：6501*3151*2562mm
  • Specification：2760kg
  • Trademark：sinomada
  • Origin：China
  • Production Capacity：50000PCS,Year

Description

ItemUnitXTR4/230Weightt58DimensionLengthmm13470Widthspading devicemm2200bodymm2100heightThe highest point of cutting head for laying horizontallymm2200bodymm1965undercut maxmm200Ground Clearancemm290Orientation cutting cross sectionheightmm4600widthmm5100Max and economic cutting hardnessMPa<=90/60Walking speedm/min6.5Max cutting powerkW230/135Power of Pump Station MotorkW110Supply VoltageVAC1140Power supply frequencyHz50Loading abilitym3/min3Pressure of the spraying systemMPaExternal spraying:1.5  Internal spraying:3

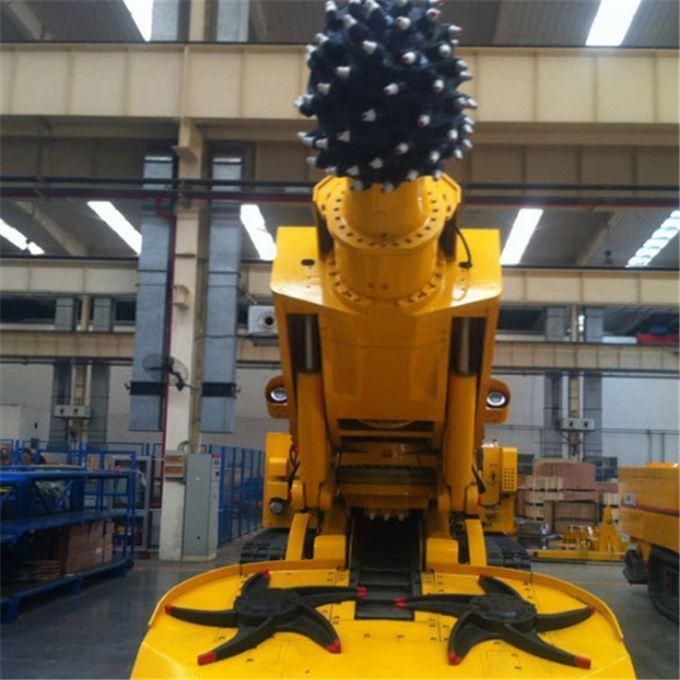

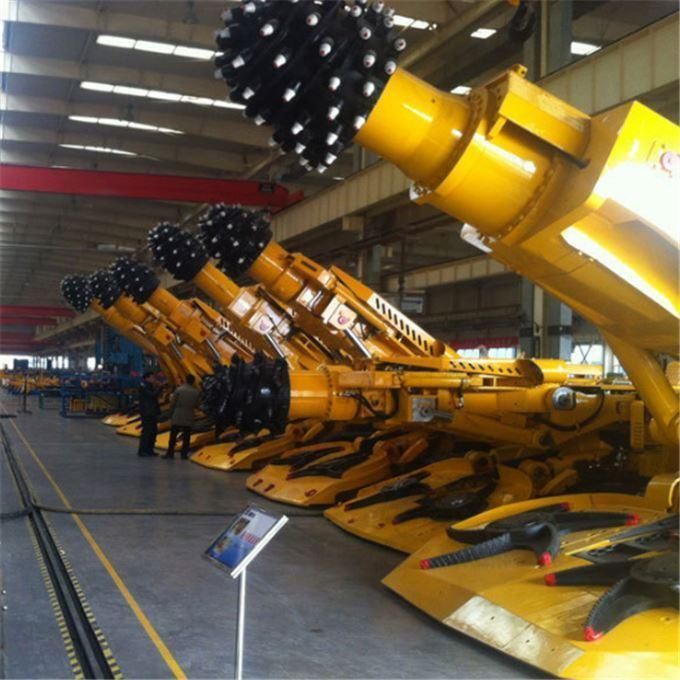

Tunnel Boring Machine Xtr4 / 230 RoadheaderTunnel Boring Machine Xtr4 / 230 Roadheader
