Drilling Rig

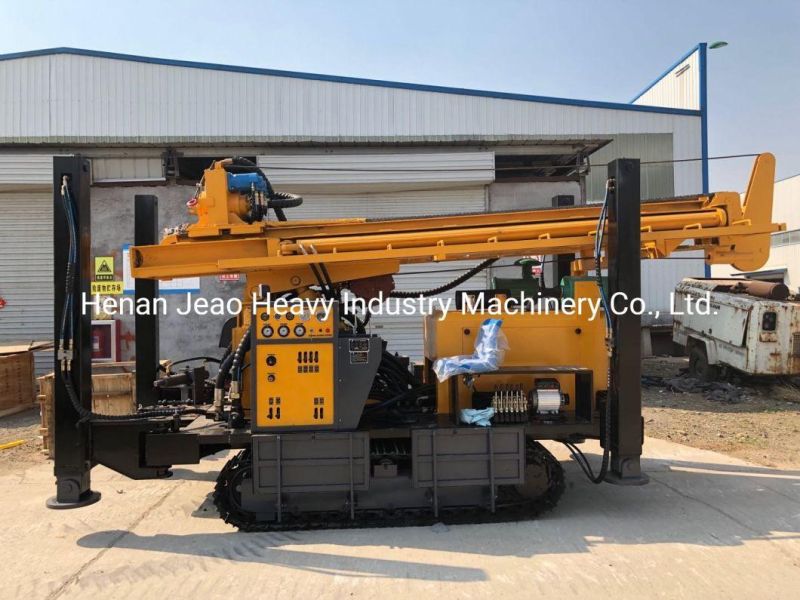

350m Pneumatic Crawler Mounted DTH Water Well Drilling Rig

Henan Jeao Heavy Industry Machinery Co., Ltd.
  • Certification:CE, ISO 9001:2000, ISO 9001:2008
  • Condition:New
  • Motor:Diesel Engine
  • Drill Hole Diameter:140-325mm
  • Drill Hole Depth:350m
  • Bit Type:Diamond Bit

Base Info

  • Model NO.:FY350
  • Drilling Way:Rotary
  • Type:Crawler
  • Rock Hardness:F=6-20
  • Work Pressure:1.7-3.3MPa
  • Air Consumption:17-35m3,Min
  • Walk Speed:2.5km,H
  • One Time Propelling Length:6000mm
  • Rotary Speed:55-115rpm
  • Rotary Torque:6200-8500n.M
  • Diesel Power:84kw
  • Weight:9000kgs
  • Transport Package:40FT Container or LCL
  • Specification:5900*2000*2850mm
  • Trademark:JEAO
  • Origin:China
  • HS Code:8430412100
  • Production Capacity:300sets Per Months

Description

1.5  2.0,  3.0,  6.0

350m Pneumatic Crawler Mounted DTH Water Well Drilling Rig
350m Pneumatic Crawler Mounted DTH Water Well Drilling Rig
350m Pneumatic Crawler Mounted DTH Water Well Drilling Rig
350m Pneumatic Crawler Mounted DTH Water Well Drilling Rig
350m Pneumatic Crawler Mounted DTH Water Well Drilling Rig
