Crawler Hydraulic Water Well Rotary Drilling Machine

Shandong Yahe Construction Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：5-30m
  • Bit Type：Twist Bit and Barrel Drill
  • Drilling Way：Rotary

Base Info

  • Model NO.：DR-120
  • Type：Crawler or Wheel
  • Usage：Pile Driver, Drill Hole Flling Pile Construction
  • Engine：Cummins
  • Drilling Diameter：500-1500mm
  • Power Source：Diesel
  • Drilling Depth：30m
  • Drill Rod：Kelly Bar
  • Machine Weight：26t
  • Drill Tools：500-1500mm Drill Bit
  • Chsaais：Crawler
  • Chassis Length：4200mm
  • Power Head Speed：10-50rpm
  • Engine Rated Power：126kw
  • Transport Status Width：2800mm
  • Transport Status Height：3400mm
  • Maximum Torque of Power Head：120kn.M
  • Transport Package：Rotary Drilling Rig Package According to The Custo
  • Specification：11500mm*2800mm*3400mm
  • Trademark：DingLi
  • Origin：China
  • HS Code：8430509000
  • Production Capacity：20 Sets,Month

Description

Basic Info.

Model NO. DR-120 Type Crawler or Wheel Usage Pile Driver, Drill Hole Flling Pile Construction Engine Cummins Drilling Diameter 500-1500mm Power Source Diesel Drilling Depth 30m Drill Rod Kelly Bar Machine Weight 26t Drill Tools 500-1500mm Drill Bit Chsaais Crawler Chassis Length 4200mm Power Head Speed 10-50rpm Engine Rated Power 126kw Transport Status Width 2800mm Transport Status Height 3400mm Maximum Torque of Power Head 120kn.M Transport Package Rotary Drilling Rig Package According to The Custo Specification 11500mm*2800mm*3400mm Trademark DingLi Origin China HS Code 8430509000 Production Capacity 20 Sets/Month

Product Description



Product Details
Equipped with a crawler-type chassis, it can be matched with different types of drills. The drilling diameter is 500-1600 mm and the maximum drilling depth is 30 meters. Shandong Yahe Construction Machinery Co., Ltd. products have passed CE, ISO, SGS and other international quality certification. The company has independent export rights, reliable product quality, superior performance and affordable prices. Thank you for your browsing, the company is willing to reach long-term cooperation with you.
Crawler Hydraulic Water Well Rotary Drilling Machine


  Parameter

Working modehydraulic oil cylinder pressure
Drilling diameter (mm)Φ500-Φ1800
drilling depth (m)5-30m
Diamension (mm)11500X2800X3400mm
Total weight (t)26T
Power head max output torque (KN.m)120KN.m
Rotary speed (r/min)10-50RPM
Main winch max lifting force150KN
Main winch max lifting speed50m/min
Assisting winch max lifting force15KN
Assiting winch max lifting speed50m/min
Mast sidewards inclination±4°
Mast forwards inclination4°
Max working pressure32Mpa
pilot pressure3.5Mpa
Travelling speed (km/h)4 km/h
Diesel engine power (KW)151KW ,cummins ,water cooling ,turbo charger

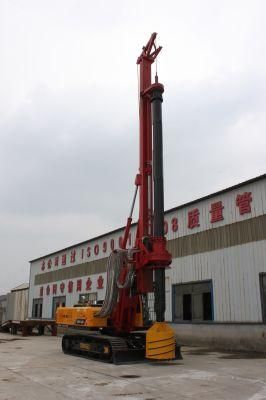

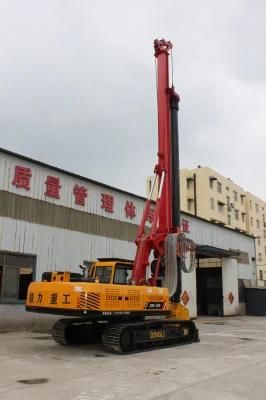

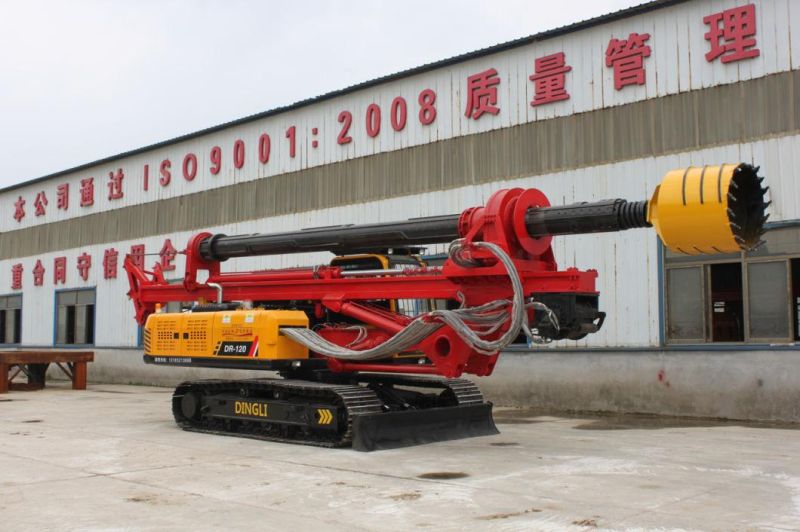

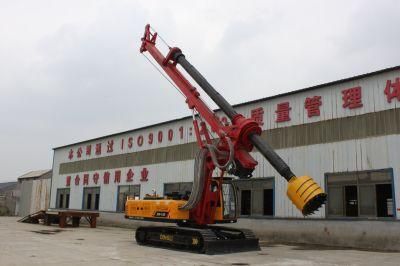

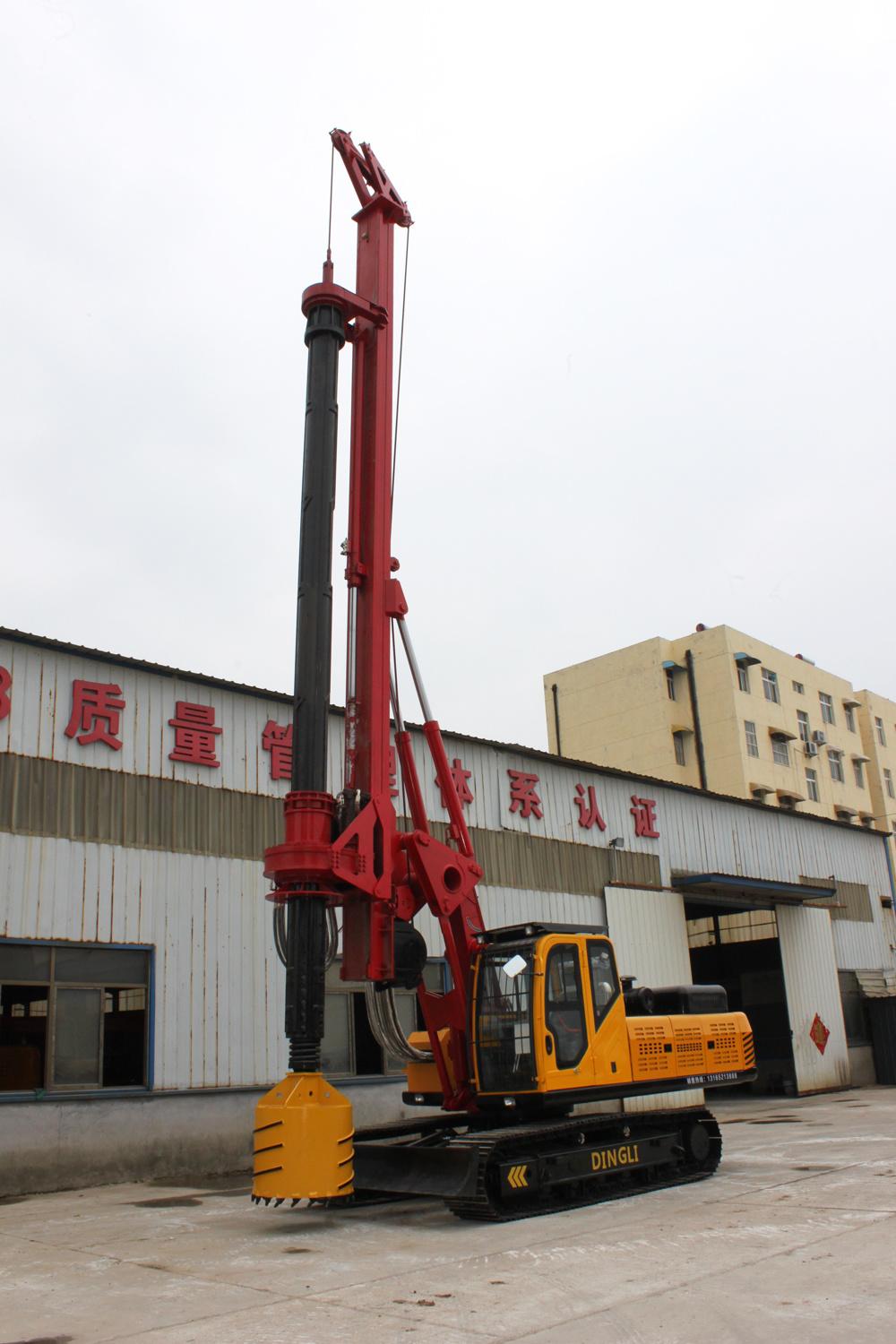

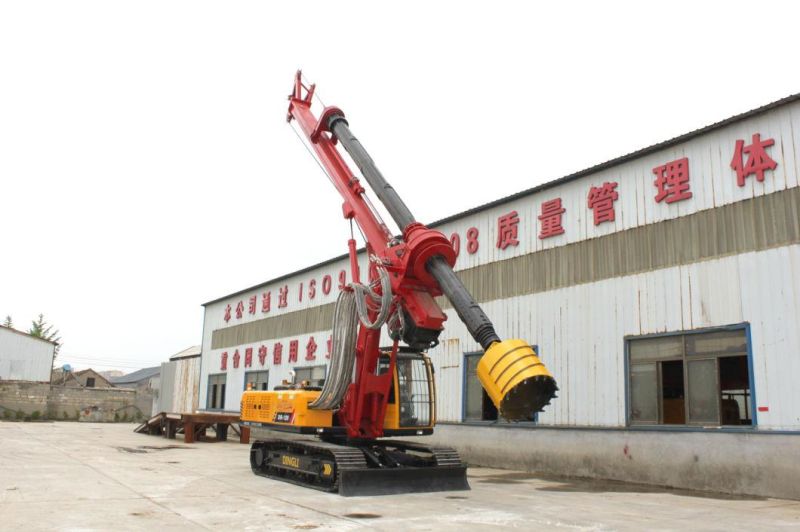

  Machine Photos
Crawler Hydraulic Water Well Rotary Drilling Machine
Crawler Hydraulic Water Well Rotary Drilling MachineCertification


Crawler Hydraulic Water Well Rotary Drilling Machine

Our service
1.Pre-sale service:

1) DingLi will provide production design, quotation sheet, working sites video, machinery photos.
2) Welcome to visit us at any time, we will pick you up.
2. Sale service:

1) Keep clients updated when our company gets advance payment.
2) Confirm production details with clients.
3) Take photos and send all pictures to customers during production.
4) Inspection and testing the product before delivery;
5) Clients are welcome to inspect the equipment when the equipment are ready to delivery.
6) logistics service if needed.
3. After Sale service:

1) Provide foundation drawing to the clients for installation.
2) Besides, our engineers are available to help with installation and workers training.
3) Repairing and maintenance if any problem during the warranty.

 Company profile

    Shandong Yahe Construction Machinery Co., Ltd. is a leading enterprise focusing on the development and manufacture of small and medium-sized pile machinery. It is a modern high-tech enterprise with complete qualifications, advanced production technology and perfect after-sales service in southern Shandong. In the same industry, we have passed ISO 9001:2008 quality management system certification. Products include crawler rotary drilling rig, wheel rotary drilling rig, long screw rotary drilling rig and diesel hammer pile driver and other engineering machinery. DR series small rotary drilling rigs and DL square rod series rotary drilling rigs are widely recognized and praised by customers.
Crawler Hydraulic Water Well Rotary Drilling Machine

  FAQ

1.Q: Are you a manufacturer?
 A: Yes, we are a professional rotary drilling rig  manufacturer.

2.Q: What does your company produce?

 A: The main products of our company include rotary drilling rig.

3.Q: How about your delivery time?

 A: Normally the delivery time is about 7-15 days. For some specialcase, we can make it within 2 weeks, it depends on different products.
4.Q: What methods of payment do you accept?

A: We accept T/T, L/C.

5.Q: Do you offer any deals or discounts?

 A: Yes, price depends on different quantity, different quantity will give you different price
