High Efficiency 40m Drilling Depth Ycr120 Mining Rotary Drilling Machine

Sinomada Heavy Industry (Changsha) Co., Ltd.
  • After-sales Service：Field Maintenance and Repair Service
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000
  • Condition：New
  • Drill Hole Diameter：>300mm
  • Drill Hole Depth：50-70m

Base Info

  • Model NO.：YCR120
  • Bit Type：Drag Bit
  • Drilling Way：Rotary
  • Type：Crawler
  • Max.Output Torque：170kn.M
  • Rated Power：194kw
  • Transport Package：Roro,Container,Bulk
  • Specification：13085*3000*3305mm
  • Trademark：SINOMADA
  • Origin：China
  • HS Code：84295100
  • Production Capacity：100 Units, Month

Description

Product DescriptionMODELYCR50YCR120Max. pile Diameter(mm)12001500Max. pile Depth(m)2340Max.output torque(kN m)50120Speed of rotationrpm6-358~28Engine model CUMS B3.9CUMS 6BT5.9-150Rated power (kw/rpm)86/2200112/1950Working pressure(Mpa)3434Diameter of the steel wire rope(mm)1616The length of crawler (mm)43104446Track shoe width(mm)600600Operating weight (t)18.235tTransport Dimensions (LxWxH/mm)9950x2600x348012630x2990x3350

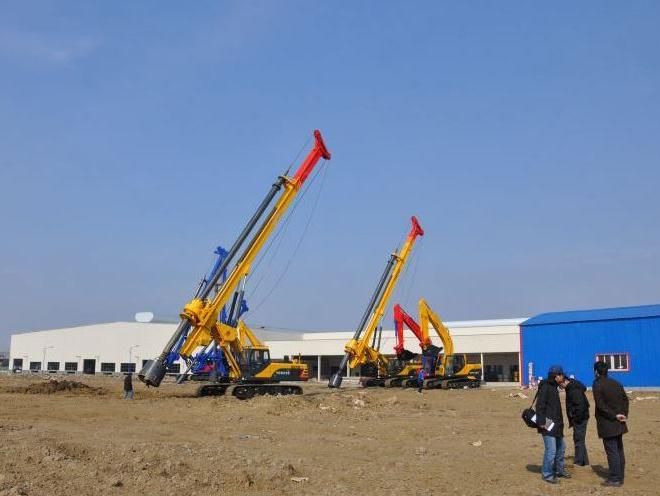

  • Product PicturesHigh Efficiency 40m Drilling Depth Ycr120 Mining Rotary Drilling Machine
  • Company information
High Efficiency 40m Drilling Depth Ycr120 Mining Rotary Drilling MachineHigh Efficiency 40m Drilling Depth Ycr120 Mining Rotary Drilling MachineHigh Efficiency 40m Drilling Depth Ycr120 Mining Rotary Drilling MachineHigh Efficiency 40m Drilling Depth Ycr120 Mining Rotary Drilling Machine
