Pilling Rock Core Borehole Rotary Drilling Rig High Quality

Wuxi Anman Construction Machinery Co., Ltd.
  • Certification：CE, RoHS, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Drill Hole Diameter：φ100~φ300
  • Drill Hole Depth：>150m
  • Bit Type：Drill Bit
  • Drilling Way：Rotary

Base Info

  • Model NO.：HDL-308
  • Type：Crawler
  • Weight：18000kg
  • Max Output Speed of Rotary Head：135r,Min
  • Max Output Torque of Rotary Head：10000n.M
  • Input Power(Diesel)：194kw
  • Transport Package：Nude Packing
  • Specification：9000*2400*3000
  • Trademark：ANMAN
  • Origin：China
  • HS Code：8430412900
  • Production Capacity：10sets,Year

Description

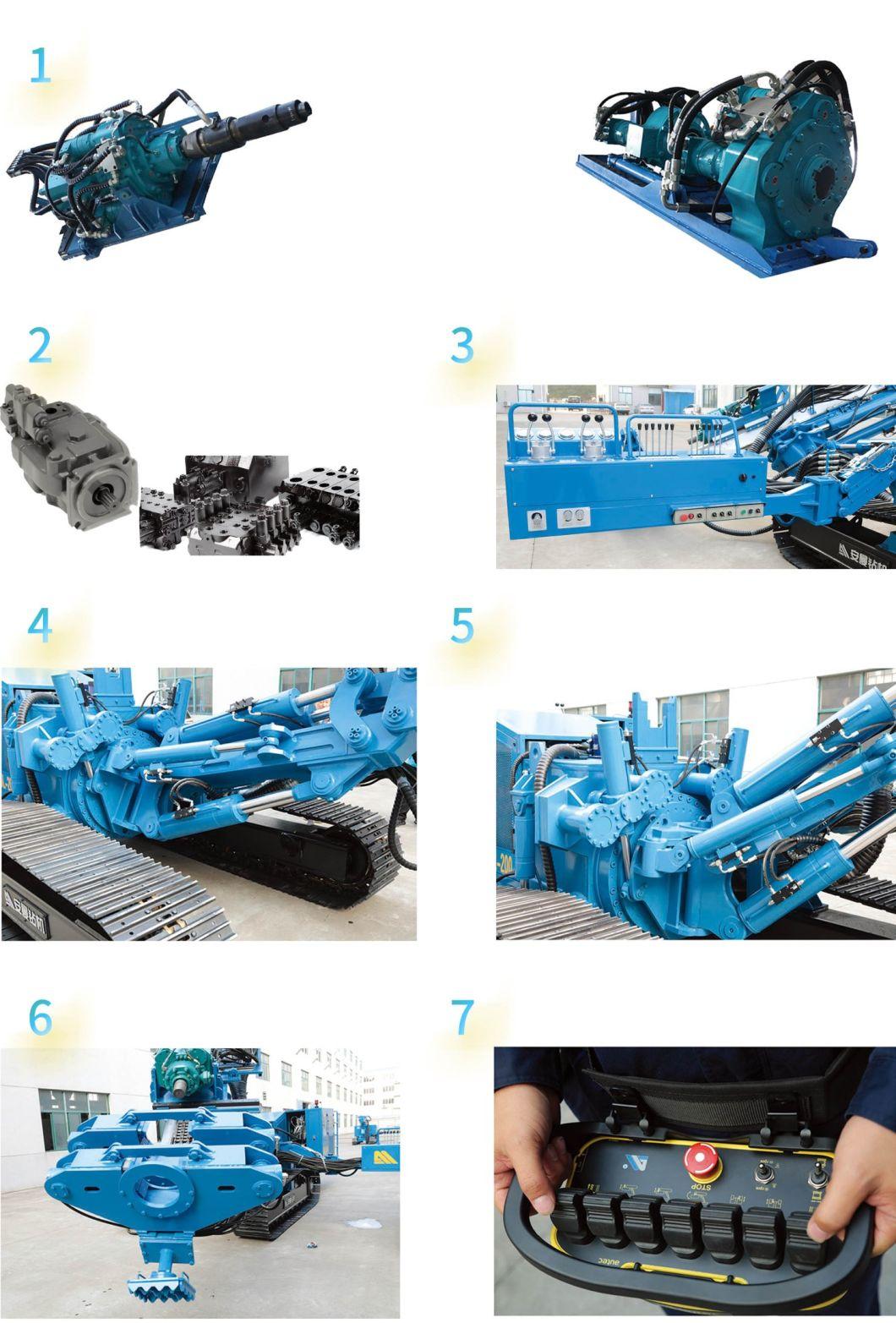

HDL-308 MULTIFUNCTIONAL HYDRAULIC DRILLING RIGSpecificationsHDL-308Hole diameter(mm)φ100~φ300Hole depth(m) 150~180Hole angle(°)-30~105Rod diameter(mm)Φ73,Φ89,Φ102,Φ114,Φ146,Φ168,Φ194,Φ219Gripper diameter(mm)Φ73~Φ300Construction SiteProduct Show1. Top Drive Drilling Head-suitable for all kinds of soil condition
HDL-300 drilling rig rotary head HD-250;HDL-308 drilling rig rotary head HD-100X and HQ350



2. Fitted with imported hydraulic system--more stable system.



3. Swiveling console-more convenient for operation, more flexible and safer. (HDL-300 only)



4. Omnidirectional variable angle mechanism-more flexible, suit for many kinds of projects.



5. Vertical big turn plate- -more convenient for tunnel shied construction.



6. 300mm opening diameter clamp- suitable for big hole drilling construction.



7. Remote control- more safer.
 Pilling Rock Core Borehole Rotary Drilling Rig High Quality

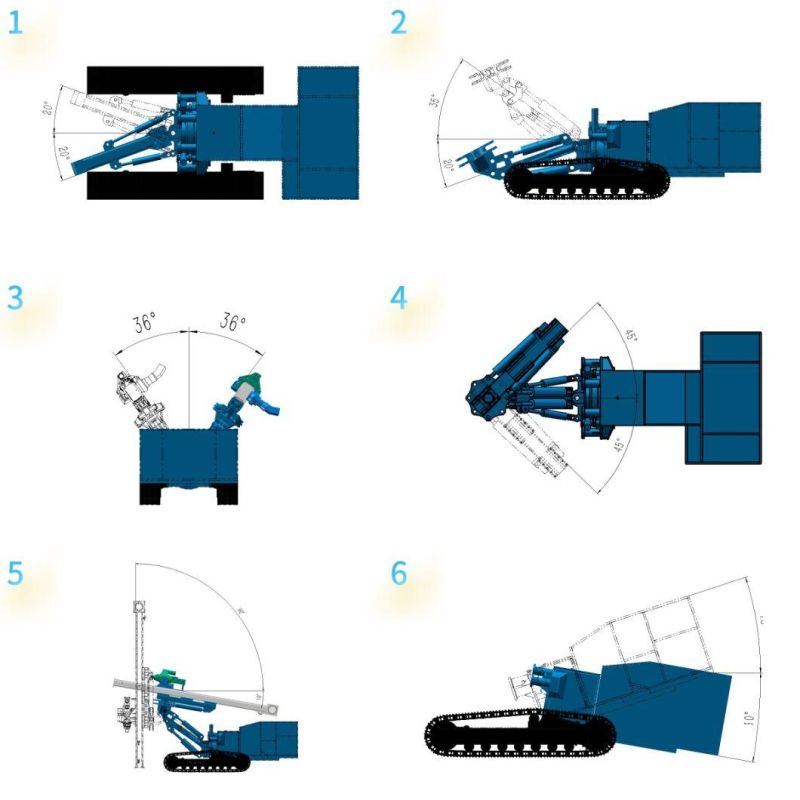

1. Lifting arm swings in angle of left and right



2. Lifting arm swings in angle of up and down(HDL-308 has no 20 function)



3. Vertical turntable in angle of left and right



4. Mast in angle of left and right



5. Lifting tower swings in angle of up and down



6. Sliding stroke is in up and down direction(HDL-300 only)
 Pilling Rock Core Borehole Rotary Drilling Rig High Quality



Feature&Technology

 Production FlowAbout usTraining

Pilling Rock Core Borehole Rotary Drilling Rig High Quality

CertificatePackaging and TransportationFactory showExhibitionOur products have been exported to many oversea countries such as Malaysia, Vietnam, Singapore, Iran, England, Canada, Kampuchea, Indonesia and Africa.
Meanwhile, welcome join us to be our agents and create the overseas markets.
Pilling Rock Core Borehole Rotary Drilling Rig High QualityPilling Rock Core Borehole Rotary Drilling Rig High Quality



FAQ:

Q: Are you original manufacturer?
A: Yes, ANMAN is manufacture in anchor and jet grouting machinery in China for more than 20years.



Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall be settled before shipment. On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.



Q: Which Incoterms 2010 terms can we work?
A: ANMAN is a professional and international company, accept all Incoterms 2010 terms, normally we work on FOB, CIF, CFR, CIP.



Q: How long will the delivery time take?
A: Normally it will take about 30-40 days to produce the ordered machines.



Q: How about your sales performance in China?
A: We have more than 2000 active customers in China. The leading market share of same function products in domestic fields.
