KAISHAN KQD120 20M DTH Water well Drilling Rig

Quzhou Refine Machinery Equipment Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：AC Motor
  • Drill Hole Diameter：100-150mm
  • Drill Hole Depth：<30m
  • Bit Type：Diamond Bit

Base Info

  • Model NO.：KQD120
  • Drilling Way：Rotary
  • Type：Crawler
  • Power：5.5kw electric motor
  • Bore Depth：>20m
  • Bore Dia.：>80-100mm
  • Air Consumption：>9m3,min
  • Working Pressure：0.5-0.7MPa or 0.7-1.0MPa
  • Rotation speed：0-62,0-78rpm
  • Max. Push power：9600N
  • Dimension：2300*600*750mm
  • Weight：580KG
  • Usage：Coal, Ore, Water Well, Quarry
  • Transport Package：Carton or Wooden Case
  • Specification：Down The Hole Drilling
  • Trademark：KAISHAN
  • Origin：Zhejiang, China
  • HS Code：8430390000
  • Production Capacity：1000PCS,Month

Description

≥3.(m3/min)


KAISHAN KQD120 20M DTH Water well Drilling Rig

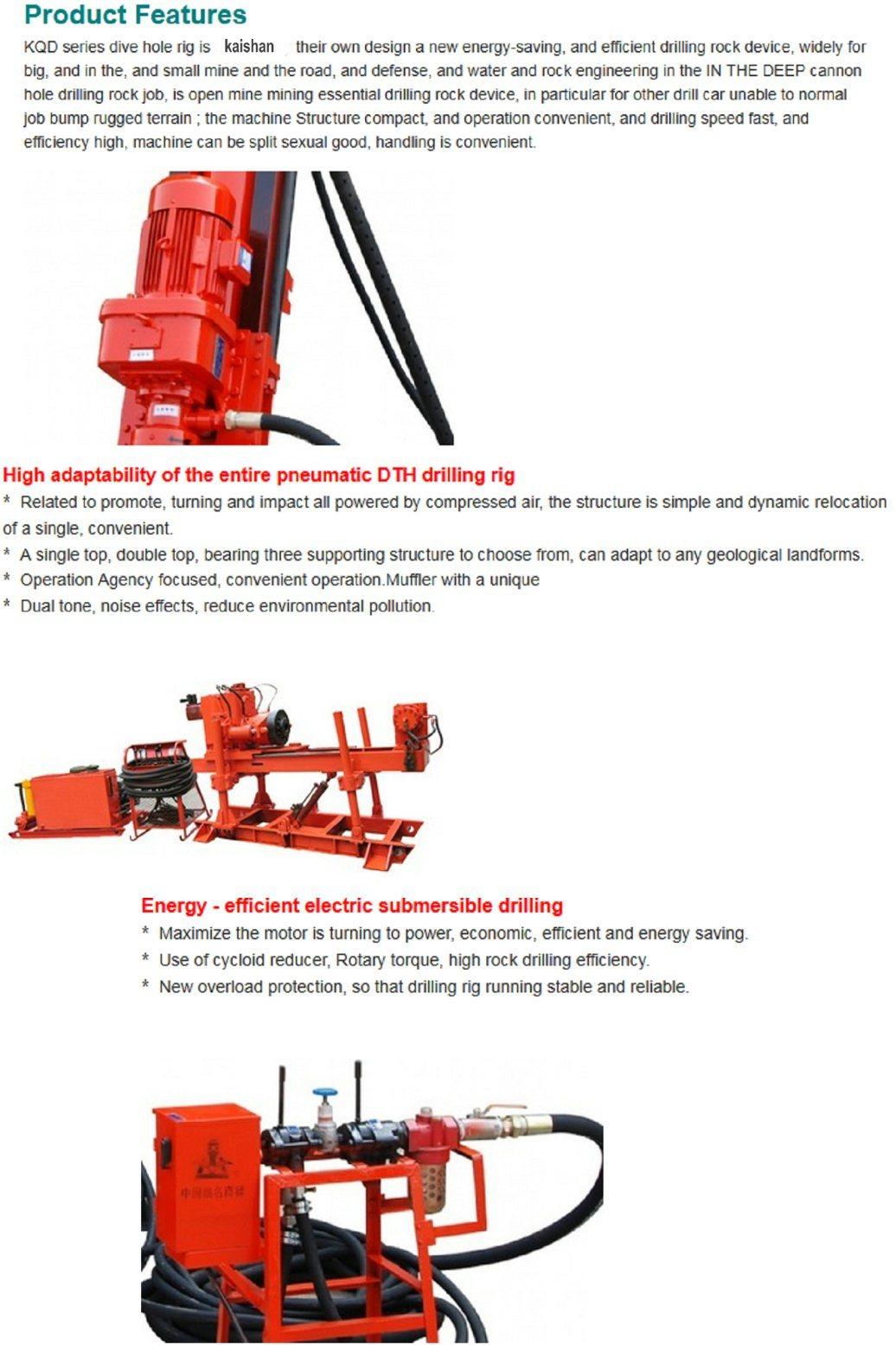

Main Elements show:
KAISHAN KQD120 20M DTH Water well Drilling Rig
Matched Hammer's specification:
 Part nameQCZ90Dirll hole dia.90-100mmSuitable drill rodΦ50 Φ 60Capacity7m3/minWorking pressure5-7barOutside dia.80mmLength855mmWeight22kg

Matching Drill rod :  Ø 60mm *1000mm

Matching Drill Bit:    Low wind pressure drill bit (80-100mm)

Matched Portable  Screw Air COmpressor (Diesel )

ModelLGY-10/8Capacity (m³/min)10 m3/minWorking Pressure (Mpa)0.8MpaWeight (kg) Dimension (mm)

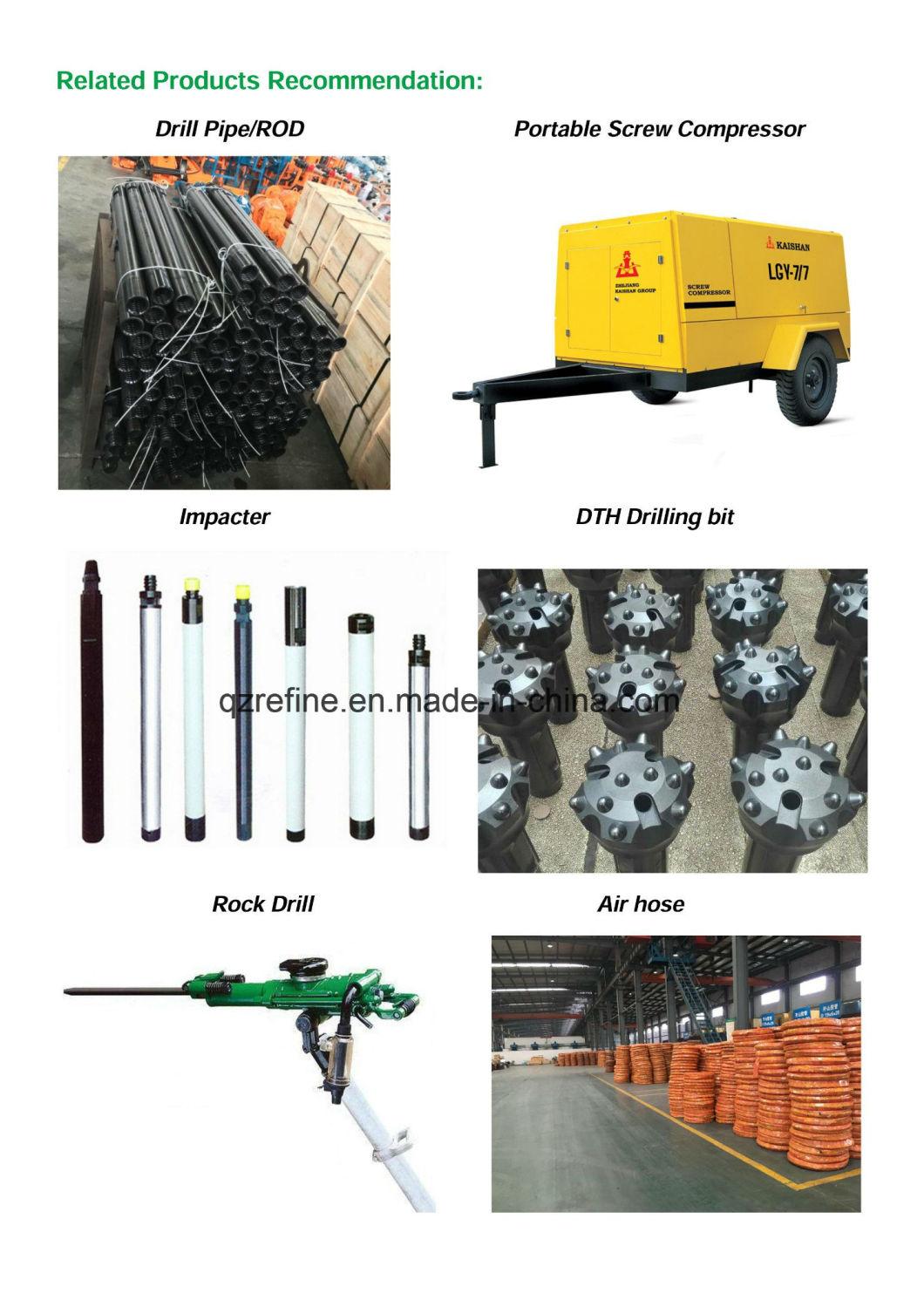

You may also interested in below items:

KAISHAN KQD120 20M DTH Water well Drilling Rig

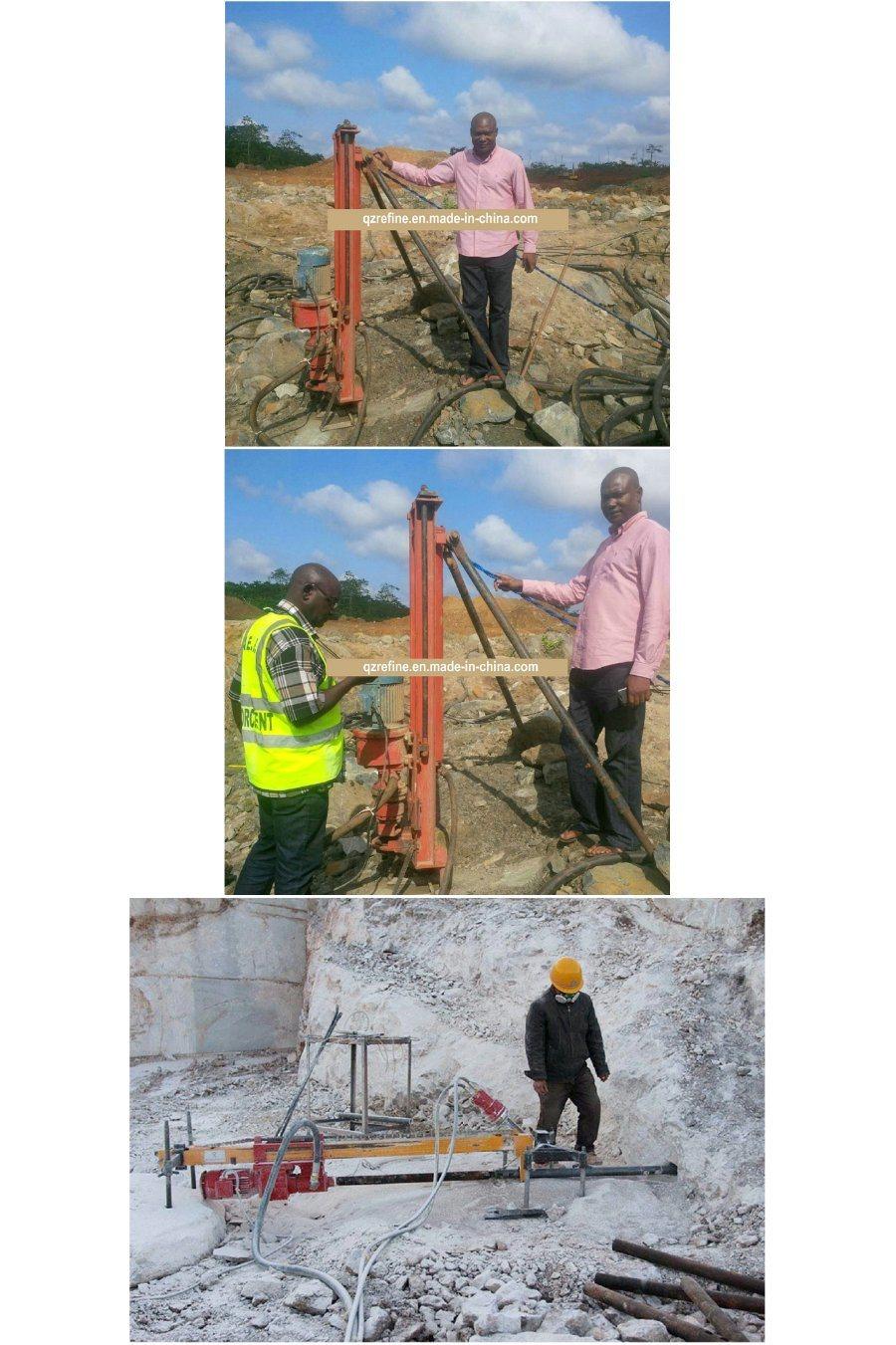

Applicated in our client's project:
KAISHAN KQD120 20M DTH Water well Drilling Rig

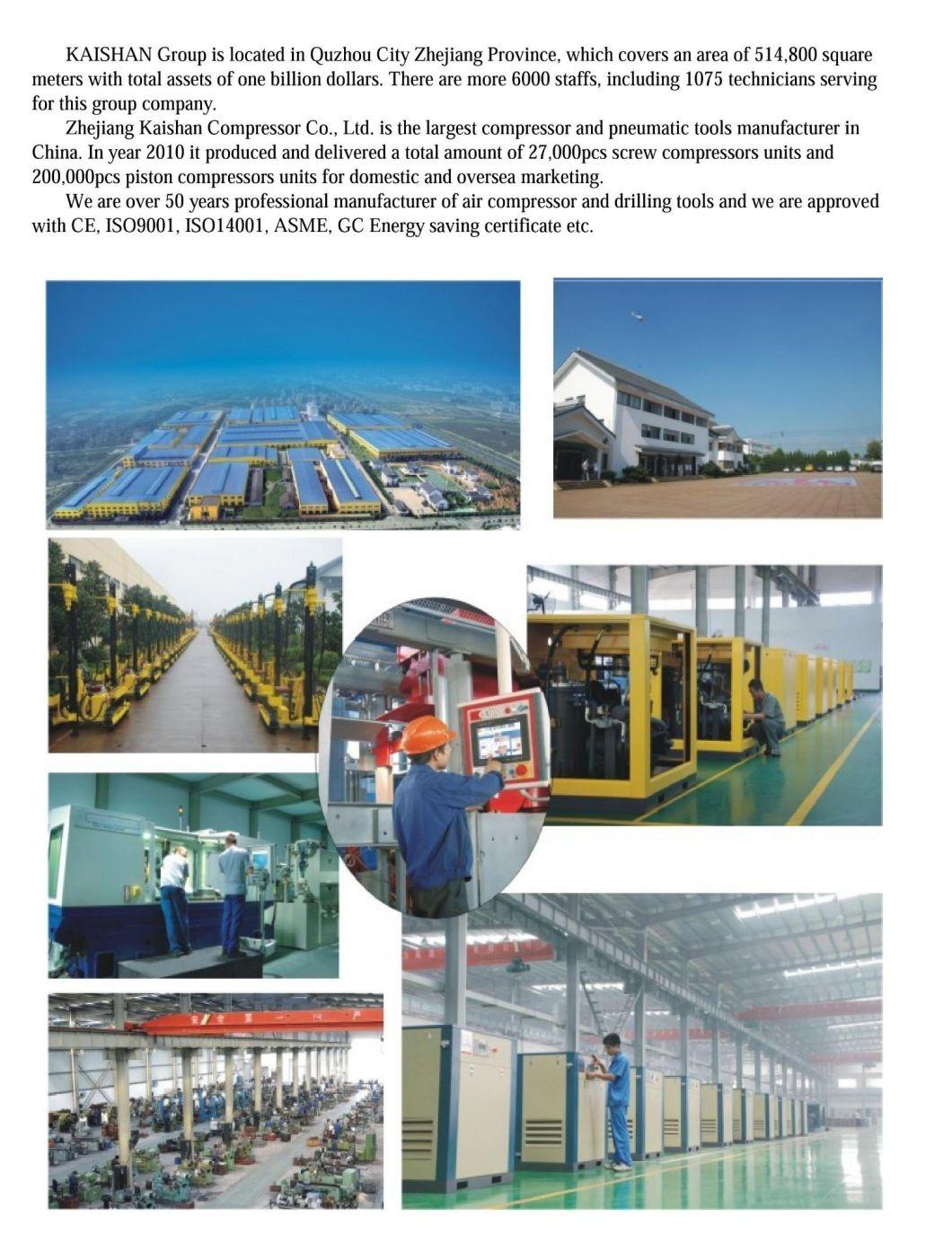

About KAISHAN GROUP:
KAISHAN KQD120 20M DTH Water well Drilling Rig



FAQ Collection:
Q1: Are you factory or trade company?
A1: We are factory. And we have ourselves trading company.

Q2: What the exactly address of your factory?
A2: Our factory is located in No.9 Kaixuan Ave West,Economic Zone Quzhou, Zhejiang, China

Q3: Warranty terms of your machine?
A3: One year warranty for the machine and technical support according to your needs.

Q4: Will you provide some spare parts of the machines?
A4: Yes, of course.

Q5: What about the voltage of products? Can they be customized?
A5: Our standard voltage is 380V, 50HZ, 3phase. The voltage can be customized according to your equirement.

Q6: Which payment term can you accept?
A6: 30% T/T in advanced, 70% T/T against the B/L copy.

Q7: How long will you take to arrange production?
A7: we can delivery the normal goods within 7-15 days. Other nonstandard electrical items we will delivery within 25-30 days.

Q8: Can you accept OEM orders?
A8: Yes, with professional design team, OEM orders are highly welcome.

Q9: Which trade term can you accept?
A9: Available trade terms: FOB, CIF, CFR, EXW, CPT, etc.
