Drilling Rig

Factory Price Nq Core Drilling Machine for Sale

Zhengzhou Defy Mechanical & Electrical Equipment Co., Ltd.
  • Certification:ISO 9001:2008, BV&SGS
  • Condition:New
  • Motor:AC Motor
  • Drill Hole Diameter:<100mm
  • Drill Hole Depth:<350 M
  • Bit Type:Diamond Bit

Base Info

  • Model NO.:DF-H-2
  • Drilling Way:Rotary
  • Product Name:Hydraulic Drilling Rig
  • Model:Df-H-2
  • Application:Geological Exploration, Coring etc.
  • Bq:350 M
  • Nq:230 M
  • Pq:120 M
  • Power:74 Kw
  • Wire Line Lifting Speed:90-240 M,Min
  • Walking Type:Crawler Drilling Rig Machine
  • Feeding System Feeding Stroke:1700 mm
  • Feeding System Lifting Capacity:50 Kn
  • Feeding System Feeding Capacity:25 Kn
  • Main Hoist Lift Capacity:18 Kn
  • Main Hoist Wire Line Lifting Capacity:8.4 Kn
  • Main Hoist Lifting Capacity:30 M
  • Transport Package:Container
  • Specification:3500*1500*1300 mm
  • Trademark:DEFY
  • Origin:Henan, China
  • HS Code:84304900
  • Production Capacity:600 Sets Drilling Rigs Per Month

Description

7. Mud PumpModelBW-100A8. Overall Dimensions of main machine (L×W×H)3500×1500×1300mm(138×59×51inch)9. Diamensions of the disassembled PartsThe largest part not more than 100Kg (excluding mud pump)

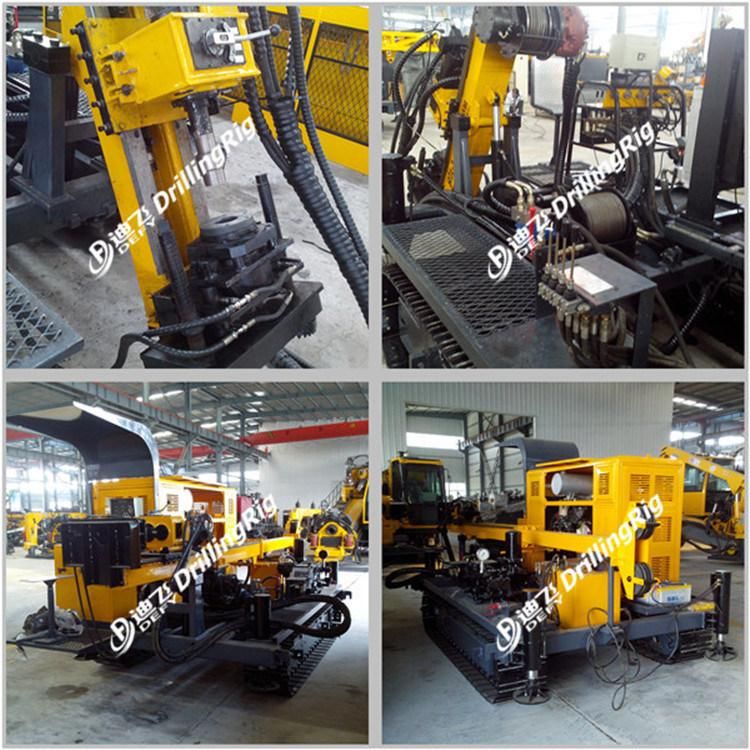

Details of Drilling Rig

Factory Price Nq Core Drilling Machine for Sale




Working of Drilling Rig


Factory Price Nq Core Drilling Machine for Sale

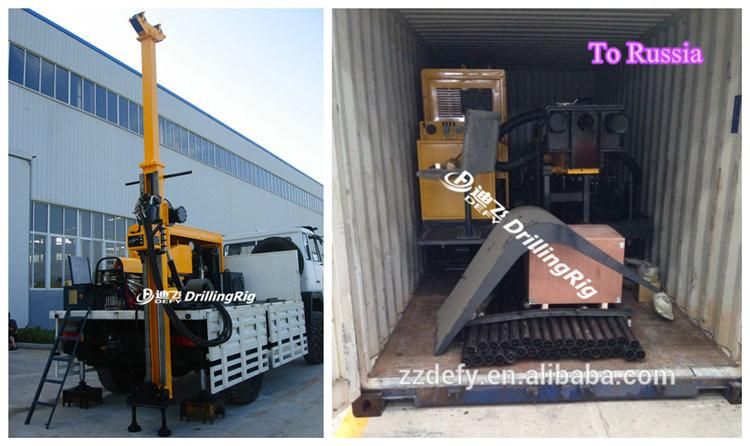

Package

Factory Price Nq Core Drilling Machine for SaleFactory Price Nq Core Drilling Machine for Sale


FAQ

Q1: Are you trading company or manufacturer?

A1: We are original equipment manufacturer.we design,produce and sell.We master the core
      technology, and constantly adjust our products according to the market trend and customer
      feedback, ensure product quality.


Q2: How long is your delivery time?
A2: It is according to the model and quantity.
      Generally it is 3-5 days if the machines are in stock.
      It will be 15-30 days if you want to customize the machines.

Q3: What do I need to do after payment?
A3: a) If under FOB trading terms,you need to employ a ship forwarder to ship the goods to you;
      b) Under CIF trading terms,we send the goods to the destination port,and contact you to pick
           up the goods; All documents for customs clearance will be sent to you by international
           express after shipment.



How to choose a suitable drilling rig?

1. What will you do using drilling rig?
---For water project, core sample, soil test, mineral prospect or others?

2. The depth you need?
---For water well, generally, 30-200m. For core sample, 30-600m, even more.

3. Any requirements to hole diameter?

---Within a certain range, the smaller diameter, the deeper depth. Mathematically, we call it
inversely proportional.

4. Working land condition?
A. soil, sand, weathered land, etc. soft stratum.
B. soil, sand, soft and hard rock stratum, mixed one.
C. Mainly hard rock, like granite.

Based on the above information, Our experienced engineers will help you choose a suitable model
