Tysim Kr50 Small Hydraulic Rotary Drilling Rig Machine
TYSIM Piling Equipment Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Drill Hole Diameter：>300mm
- Drill Hole Depth：10-30m
- Drilling Way：Rotary
- Type：Crawler
Base Info
- Model NO.：KR50A
- Transport Package：Bulk Pack Overall Transport
- Specification：6 t
- Trademark：tysim
- Origin：Jiangsu, China
- HS Code：8430412900
- Production Capacity：50pieces,Month
Description
KR50AExcavator Size 8t-13t 14t-16t 20t-23t 24t+ Max. torque 32-42 kN.m 50 kN.m 50 kN.m 50 kN.m Max. drilling diamete 1200 mm 1200 mm 1200 mm 1200 mm Max. drilling depth 12 m 16 m 20 m 24 m Max. cylinder thrust 70 kN 70 kN 75 kN 75 kN Max. cylinder trip 600/900 mm 1100 mm 1100 mm 1100 mm Main winch pull force 45 kN 65 kN 65 kN 65 kN Main winch speed 30 m/min 48 m/min 48 m/min 48 m/min Mast inclination(Lateral) ±6° ±6° ±6° ±6° Mast inclination(Forward) -30°~+60° -30°~ +90° -30°~ +90° -30°~ +90° Working speed 7-40rpm 7-40rpm 7-40rpm 7-40rpm Min. radius of gyration 2750mm 2800mm 2950mm 5360mm Max. pilot pressure 31.5Mpa 31.5Mpa 31.5Mpa 31.5Mpa Operating height 7181mm 8868mm 9926mm 11421mm Operating width 2300mm 2600mm 2800mm 3300mm Transport height 3014mm 2731mm 3150mm 3311mm Transport width 2300mm 2600mm 2800mm 3300mm Transport length 7157mm 10390mm 11492mm 12825mm Transport weight 5.4t 6.1t 6.5t 7t Remark Restructuring big arm Restructuring big arm Restructuring big arm Original arm

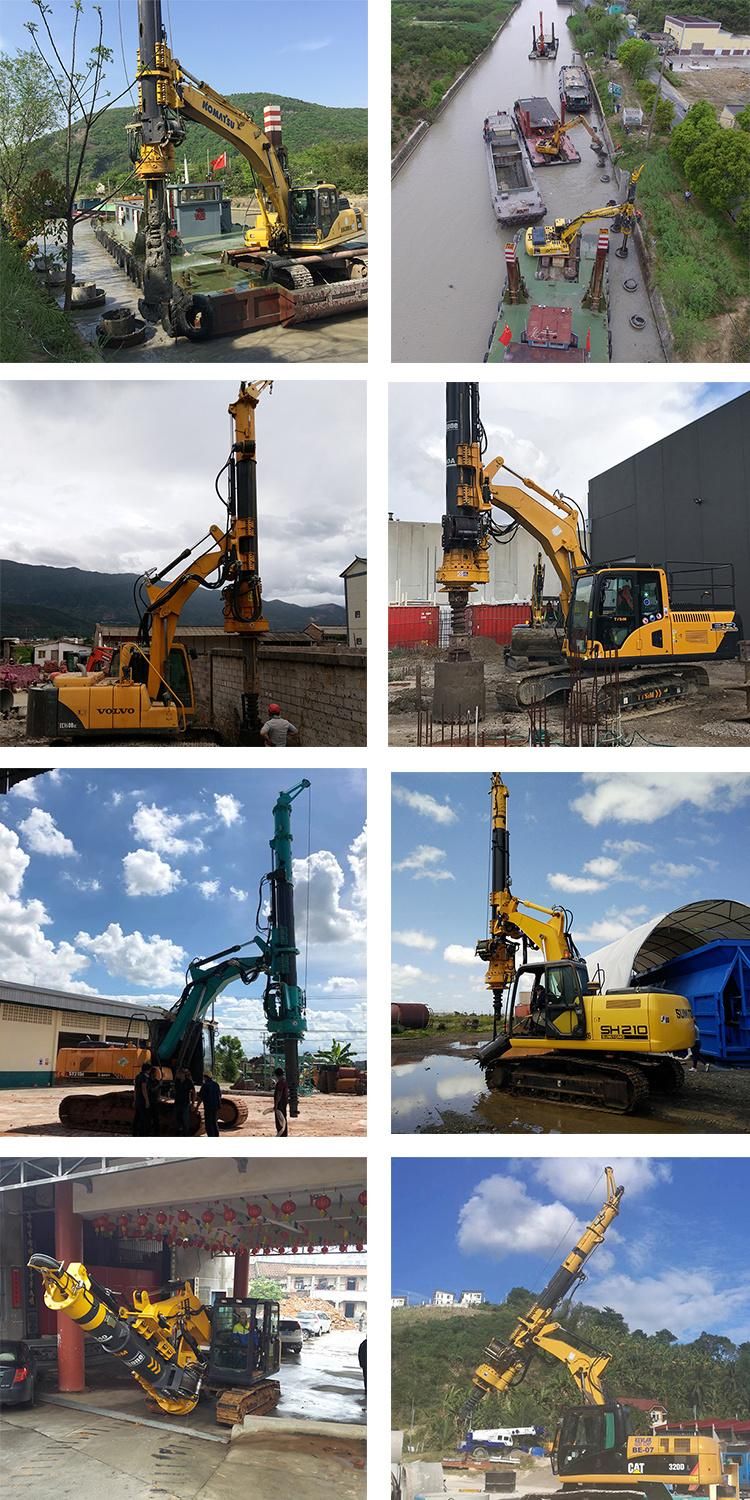

construction photos
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is an year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
construction photos
Why Choose Us?
1. We are the professional & trustworthy manufacturer of piling machinery in China, best quality & best service.
2. Supply professional customized service to meet all your requirements.
3. Our rotary drilling rigs have been sold to more than 7 counstries, such as Russia, Australia, Thailand, Zambia and others.
4. Competitive price.
FAQ
Q1: What is the Warranty of the Rotary Drilling Rig?
The warranty period for new machine is an year or 1000 working hours, whichever comes first will be applied.
Please contact with us for detailed Warranty Regulation.
Q2: What's your service ?
We can offer professional technical support and good after-sale service to you.
Modification methods will be different according to different models and configurations of your owned excavators.
Before modifying, you need to provide configuration, mechanical and hydraulic joints and others.
Before modifying, you need to confirm technical specification.
