260m Drilling Rig Water Well Crawler Borehole Drilling Rig with Air Compressor

Henan Yugong Machinery Co., Ltd.
  • After-sales Service：Video Technical Support
  • Warranty：1 Year
  • Certification：CE, ISO 9001:2000, ISO 9001:2008
  • Condition：New
  • Motor：DC Motor
  • Drill Hole Diameter：200-250mm

Base Info

  • Model NO.：YG-130,180,200
  • Drill Hole Depth：>200m
  • Bit Type：Diamond Bit
  • Drilling Way：Impactor
  • Name：Bore Well Drilling Machine
  • Spindle Speed：32-1057r,Min
  • Spindle Stroke：600mm
  • Max Pull Force：3000kg
  • Pull Speed：0.3-1.9m,S
  • Rope Diameter：12.5mm
  • Rated Load：18t
  • Effective Height：6.5m
  • Matching Power：42kw
  • Keyword：Water Well Drilling Rig Price
  • Drilling Depth：500m
  • Keyword 2：Drilling Rigs
  • Keyword 3：Small Water Well Drilling Machine
  • Transport Package：Standard Wooden Cases
  • Specification：2900*2560*3300mm
  • Trademark：YG,YUGONG
  • Origin：Henan, China
  • HS Code：8430410900
  • Production Capacity：500 Set,Month

Description

Product Description  YG-180 YG-200 YG-300YG-300A  YG-400 YG-600YG-800 The weight(T)4.55.89 710 12 13 The hole diameter(mm)140-254 140-305 140-325 140-325 140-350 140-350 140-500 Drilling depth(m)180200 300  300400 600 800

One-time advance length(m)

3.4 3.4 6.6 3.4 6.6 6.6 6.6

Walking speed

(km/h)

2.5 2.5 2.5 2.5 2.5 2.5 2.5

Climbing angles

(Max.)

30 30 3030 30 30 30 Equipped capacitor(KW)55 65-70 84 75.8 92 115 140 Using air pressure(mpa)1.7-2.5 1.7-3.0 1.7-3.3 1.7-3.0 1.7-3.5 1.7-3.5 1.7-3.5

Air consumption

(m3/min)

17-31 17-30 17-35 17-35 17-35 17-35  17-35Drill pipe diameter(mm)76  8976  89 89  102 76  89  102 89  102  108 102  108  114 76  89  102 Drill pipe length(m)1.5  2.0  3.0 1.5  2.0  3.0 1.5  2.0  3.0  6.0 1.5  2.0  3.0 1.5  2.0  3.0  6.0 1.5  2.0  3.0  6.0 1.5  2.0  3.0 Rig lifting force(T)1512 20 16 22 28 35 Swing speed(rpm)45-6545-70 55-115 40-70 45-115 45-115 55-115 Swing torque(N.m)3200-46003500-4800 6200-8500 5700-7500 6500-9000 8500-11000 8660-11150 Dimension(mm)3800*1500*22004000*1750*2450 5900*2000*2850 4100*1950*2600 5900*2100*2850 6000*2200*2850 6100*2100*2900

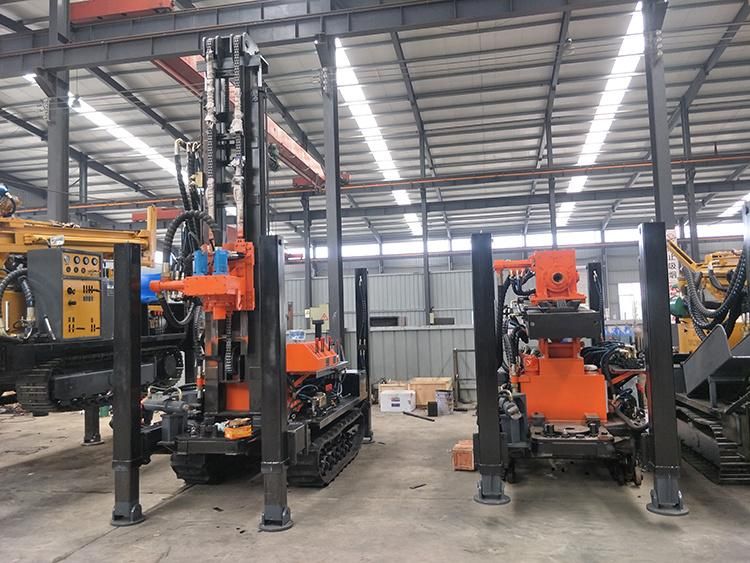

260m Drilling Rig Water Well Crawler Borehole Drilling Rig with Air Compressor260m Drilling Rig Water Well Crawler Borehole Drilling Rig with Air Compressor260m Drilling Rig Water Well Crawler Borehole Drilling Rig with Air Compressor



Feature:

1.High drilling efficiency, power provided by 42KW diesel engine
2.High efficiency, large rotary torque
3.Integrated automation equipment,All terrain moves by itself
4.Adopt consummate design, long service life
5.Self loading and unloading,Easy to operating

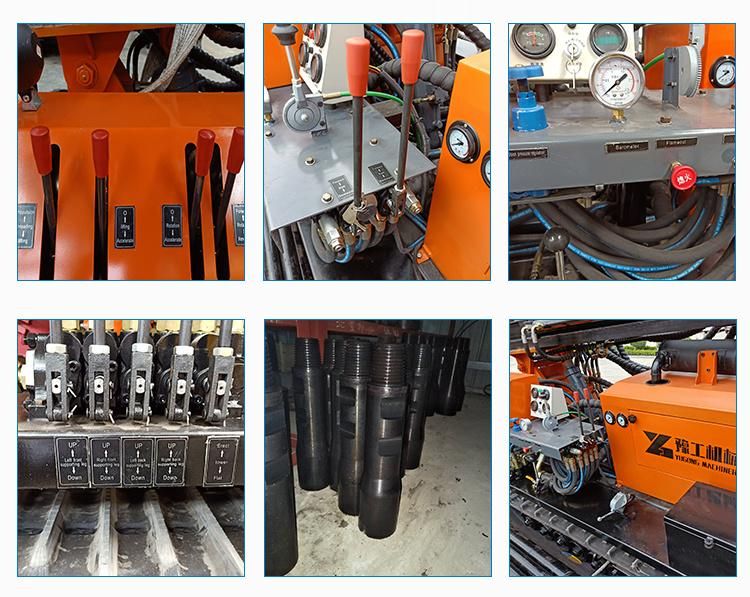

Details:



 260m Drilling Rig Water Well Crawler Borehole Drilling Rig with Air Compressor

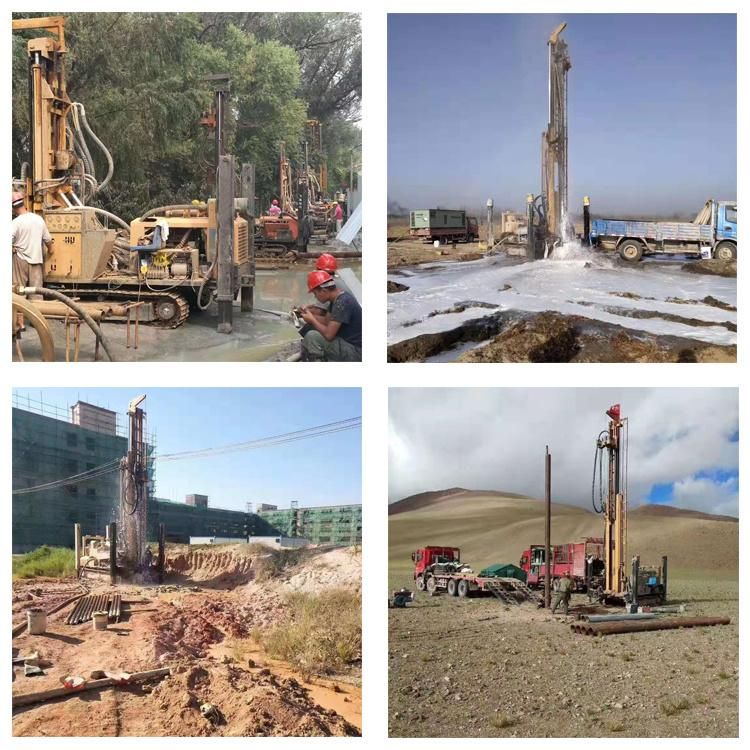

Working Site:

 260m Drilling Rig Water Well Crawler Borehole Drilling Rig with Air Compressor

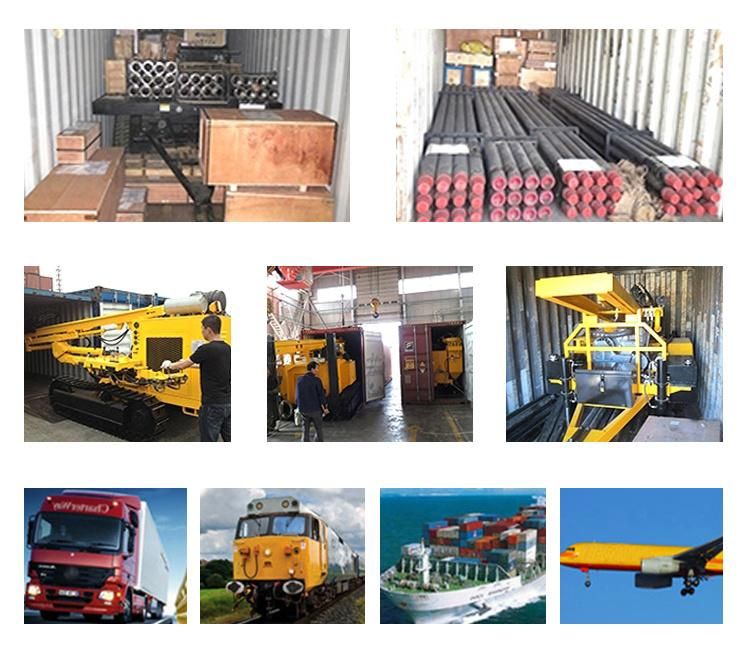

Production ProcessCompany InformationAdvantages Packaging & Shipping

Generally, we use standard exported wooden case for LCL goods, and fixed well for FCL goods.
