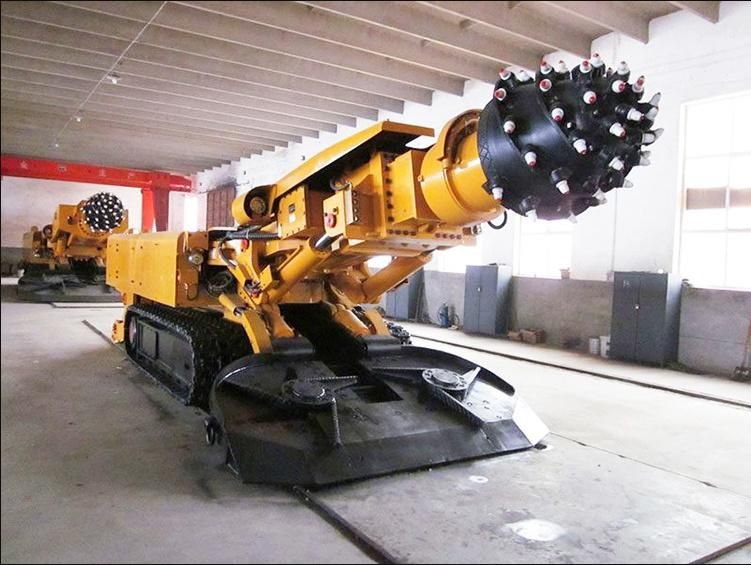

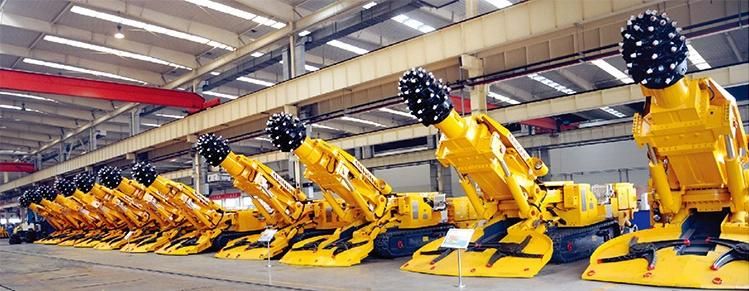

• Model NO.：EBZ75, EBZ90, EBZ120, EBZ135, EBZ160, EBZ200,
• Transport Package：RO-RO, Rull
• Specification：3.41*1.38*1.33 m
• Trademark：TOP BRAND
• Origin：China
• Production Capacity：500units,Month

ProjectUnit Total weight(kg)42000Overall dimension  Total length without additional conveyor
(mm)8932Total width Ramp plate(mm)2800Total width Main frame(mm)2205Total height The highest point of cutting head for laying horizontally(mm)1600Total height Main frame(mm)1470Undercut max telescoping/non-telescoping(mm)295Ground clearance of machine(mm)180Height Cutting cross section(mm)4000WidthCutting cross section(mm)4842Area Cutting cross section(m²)19.4Gantry height(mm)370Max./Economic compressure strength for cutting coal petrography(MPa)≤70/60Upgrade ability(°)±18Travel speed(m/min)6Minimum curve radius-0.13Average floor pressure(MPa)225Total installed power(kW)135Installed power of cutting motor(kW)75Installed power of pump motor(kW)AC660/1140Supply voltage(V)50Line frequency(Hz)38Rotation speed of cutting head(r/min)38Loading capacity(m³/min)Star wheel type/4.32Crawler width(mm)520Out width of crawlers(mm)2205Tensioning style-Cylinder tensioning and snap-gauge lockingPressure of water spraying(MPa)External spraying≥1.5;Internal spraying≥3Max.non-removable parts size(mm)3410×1380×1330Max.non-removable parts mass(kg)4700
