• Model NO.：SWDM150
• Operating Weight with Cab：47t
• Engine Power：150kw
• Max. Torque：150kn.M
• Rotation Speed：6~32rpm
• High-Speed Throwing Soil (Optional)：70rpm
• Transport Package：Nude Packing
• Trademark：Sunward
• Origin：Hunan, China
• HS Code：8430691900
• Production Capacity：5000PCS,Year

Basic Info.

Model NO. SWDM150 Operating Weight with Cab 47t Engine Power 150kw Max. Torque 150kn.M Rotation Speed 6~32rpm High-Speed Throwing Soil (Optional) 70rpm Transport Package Nude Packing Trademark Sunward Origin Hunan, China HS Code 8430691900 Production Capacity 5000PCS/Year

Product Description

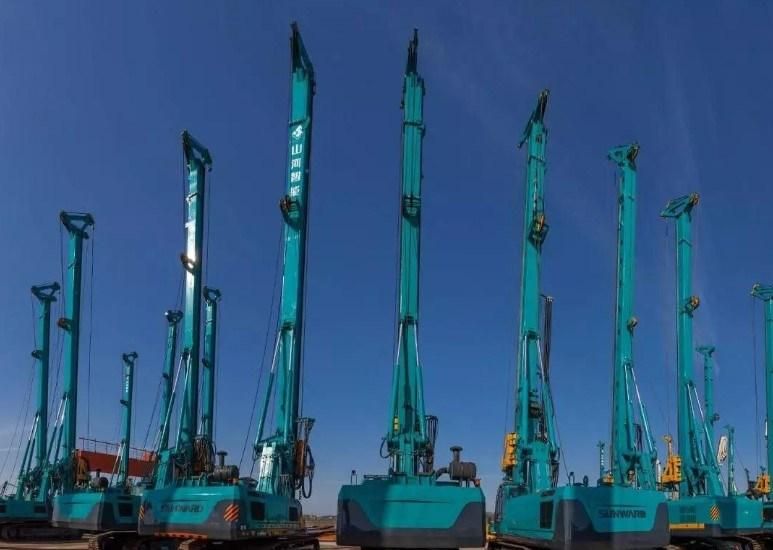

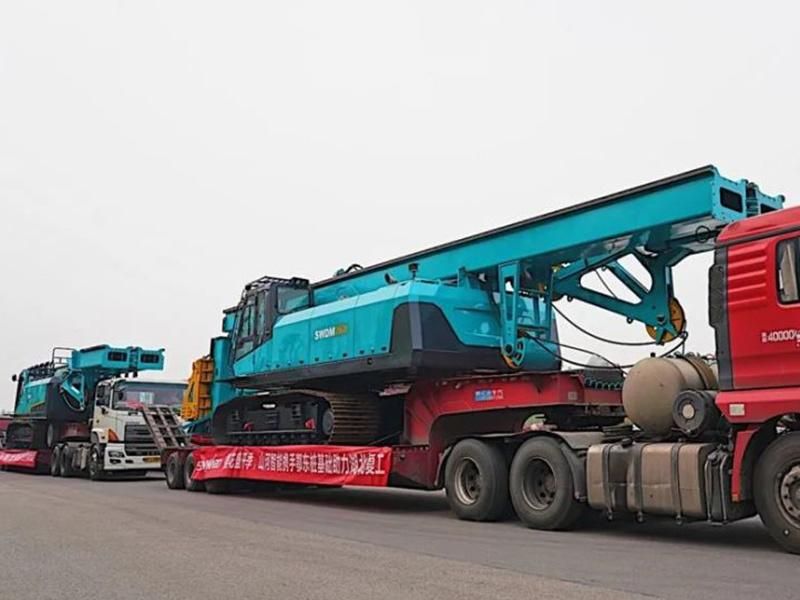

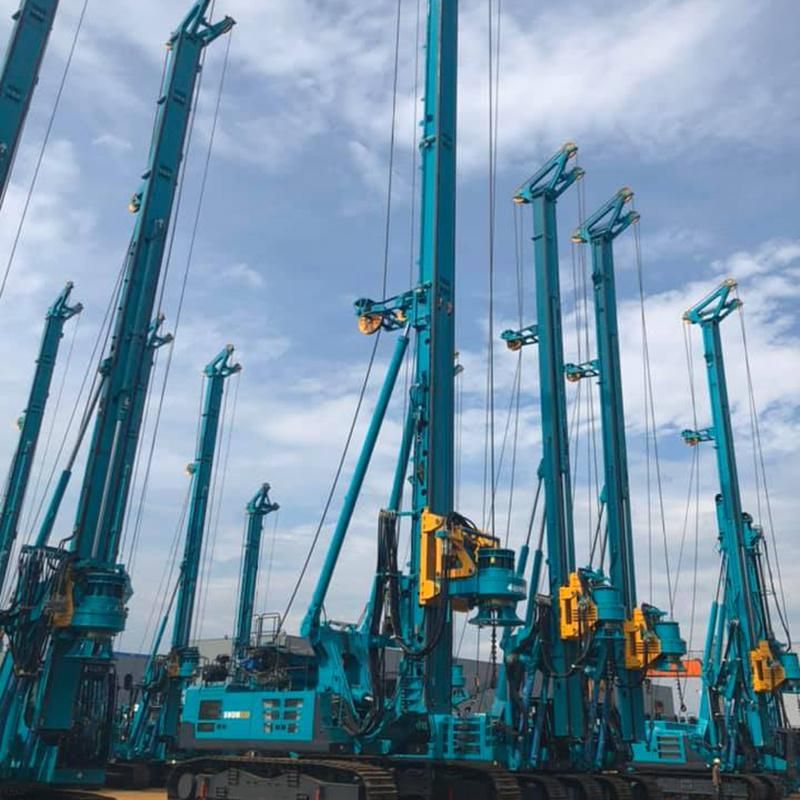

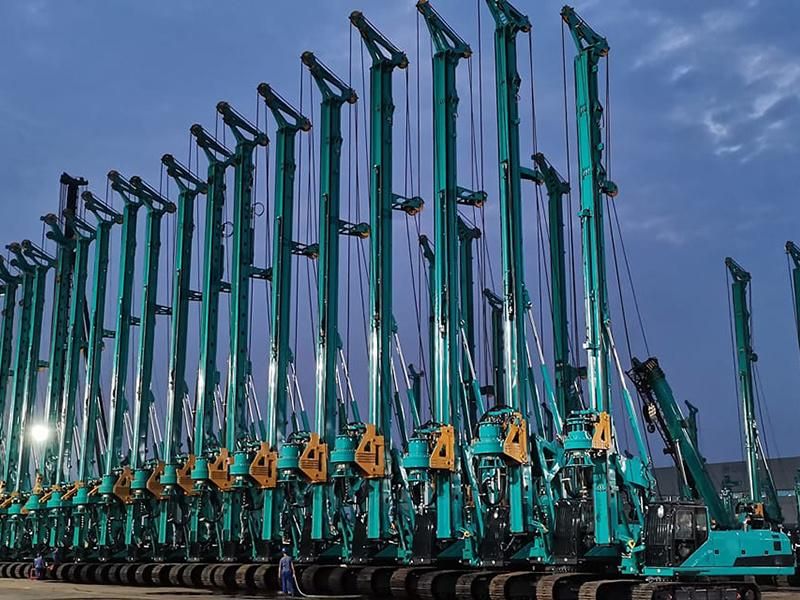

Sunward Piling Machine SWDM150 Rotary Drilling Rig
 Product description

Sunward Rotary Drilling Rig has unique advantages in complete machine stability,control technology,steel wire rope consumption and other performance indicators, and its comprehensive performance has reached the international advanced level.Sunward rotary drilling rig is not afraid of medium(slight) weathering, hard sand layer,large gravel layer and other complicated geological conditions, and has successively participated in the construction of Panzhihua Steel Vanadium and Titanium Base, Hong Kong-Zhuhai-Macao Bridge, Harbin-Dalian Passenger Dedicated Line, Bird's Nest Stadium, Shanghai-Nanjing Railway, Shanghai-Kunming Railway,Lasa-Rikaze Railway, Lanzhou-Urumqi High-speed Railway and other major projects.At the same time, Sunward rotary drilling rigs have also been exported to Southeast Asia, Europe,America, Africa and other countries and regions in large quantities to participate in local key projects.

Model		SWDM150	SWDM160H-2	SWDM200	SWDM220-3	SWDM260
Max. drilling diameter	mm	1500	1500	1800	2000	2200
Max. drilling depth	m	52/40	56/44	64/51	69/54	74/59
Engine power	kw	150	194	194	242	242
Max. torque	kN.m	150	160	200	245	260
Rotation speed	rpm	6~32	6~42	6~35	6~28	6~28
High-speed throwing soil (optional)	rpm	70	70	70	70	70
Working weight	t	47	49	65	76	78
Working height	mm	17985	18285	21275	22275	23305

Rotary drilling is a construction technology suitable for hole-forming operations in building foundation engineering. It is widely used in municipal construction, highway bridges, high-rise buildings and other foundation construction projects. With different drilling tools, it is suitable for dry (short spiral) or wet (revolving bucket) and rock (core drilling) drilling operations.
