Ky-200 DTH Hammer Water Well Drilling Rig/Well Rock Drill Machine

Changsha Miracleland Import & Export Co., Ltd.
  • Certification：CE, ISO 9001:2008
  • Condition：New
  • Motor：Diesel Engine
  • Drill Hole Diameter：140-350mm
  • Drill Hole Depth：200m
  • Bit Type：DTH Bit

Base Info

  • Model NO.：KY-200
  • Drilling Way：DTH Drill
  • Type：Crawler
  • Structure：Compact Type
  • Rig Power：76kw
  • Stability：Good
  • Engine Brand：Yuchai
  • Transport Package：Plastic Film
  • Specification：200
  • Trademark：csmiracleland
  • Origin：Changsha, Hunan, China
  • HS Code：8430691900
  • Production Capacity：20 Sets,Month

Description

KY-200 Multi-function crawler hydraulic water well drilling rig technical figuresDrilling depth200mDrilling diameterΦ140-Φ305mmWorking air pressure1.7-3.0MPaAir consumption17-30m3/minDrilling pipe diameterΦ76, Φ89mm, Φ102mmLength of drill pipe1.5m, 2.0m, 3.0mOne push length3mTramming speed2.5km/hClimbing ability (Max.)30°Ground clearance (Min.)250mmRotation speed50-70 rpmRotation torque4800-6500 N.mPower76 KwWeight6.2TDimension4000x1900x2600mm Detailed Images

Ky-200 DTH Hammer Water Well Drilling Rig/Well Rock Drill Machine

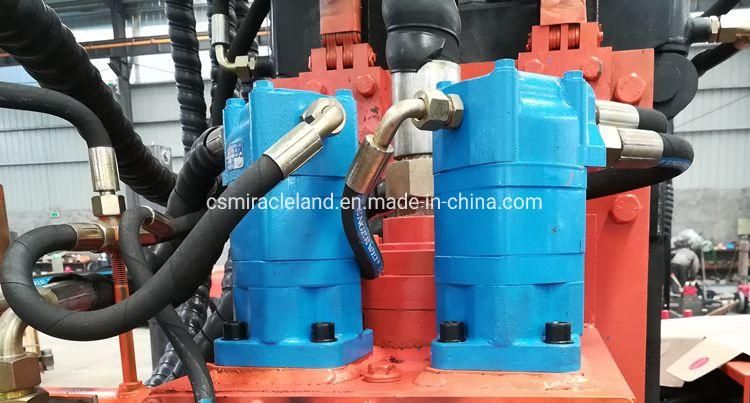

Double motor to provide power, large torque, durability, maintenance cost is lower.

Ky-200 DTH Hammer Water Well Drilling Rig/Well Rock Drill Machine
Packaging & Shipping:

Ky-200 DTH Hammer Water Well Drilling Rig/Well Rock Drill Machine
