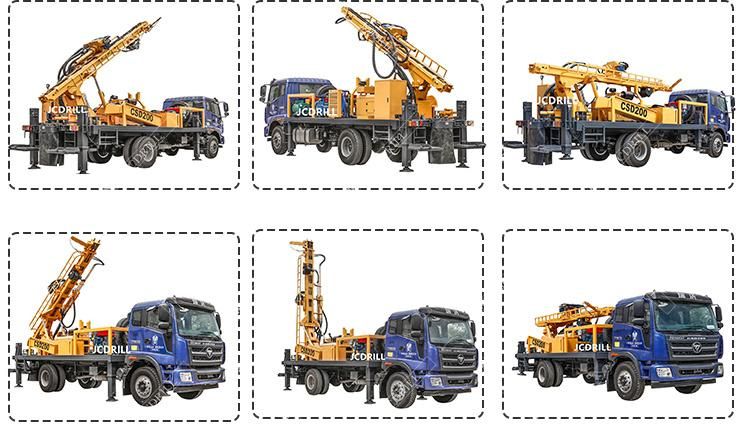

(CSD200) Hydraulic Truck Mounted Water Well Drilling Rig in Sourth America
Beijing Jincheng Mining Technology Co., Ltd.- Certification：CE, ISO 9001:2000
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：>300mm
- Drill Hole Depth：>200m
- Bit Type：Water Well Drilling
Base Info
- Model NO.：CSD200
- Drilling Way：Compound
- Type：Truck Mounted
- Truck Type：4X2
- Pull Back Capacity：8ton
- Rotation Torque：5400n.M
- Drill Pipe：3m
- Transport Package：40fr Container
- Specification：11000*2480*2850mm
- Trademark：JCDRILL
- Origin：China
- HS Code：8430419000
- Production Capacity：2000 Sets , Year
Description
Characteristics1.The drilling rig can use air DTH Hammer drilling and mud drilling.
2.Centralized control console is suitable for each manipulation and control. Rapid pulling and lifting reduce
the auxiliary time and enhance the work efficiency.
3.The truck chassis adopts the special crane chassis of brand FOTON and the main drive
system, the transfer case, gearbox, double-winch unit, mud pump, turntable,drilling tower, feed system
are set up on the chassis.
4.It's a hydraulicrotary drilling rig with directional circulation. It is equipped with BW450 mud pump which
adopts the slurry as the washing fluid and can drill on clay, sand and rock if it is equipped with suitable
drilling bit.
5.The power of drilling rig comes from a Yuchai engine,81kw Yuchai engine drives the large displacement
high pressure plunger pump and it is characterized by powerful dynamic and stable performance.
6.The rotary head,rotation speed is 0-115rpm stepless adjustment and the rotary torque is 4800Nm.
7.The pulling force can be regulated and controlled, which adapt the machine to deep hole drilling.
8.It can set up a generator which is convenient to welding or illuminate for work at night.
9.Main winch are available on the rig so it is high efficiency when the rig drill on mud rock and on the
weathering formation.
10.The main drive of rig is hydrulic and the four landing legs and drilling tower are hydraulic controlled.
Transfer case and mud pump clutch system are also hydraulic operated.
11.The tools winch winch is used for auxiliary lifting and casing,optional main winch force of 1.5T, rope
length of 100m.
12.The Hydraulic auxiliary functions are easy and efficient for guide extension, boom swing, boom lift,
guide dumping.
13.Competitive in price, low cost of maintain.
Shipping
FAQQ: Are you original manufacturer?
A: Yes, we JCDRILL is a official leading manufacture in drilling machinery in China and we have the whole
series products you need.
Q: Which payment terms are available to us?
A: T/T term or L/C term. On T/T term, 30% down payment is required in advance, and 70% balance shall
be settled before shipment.On L/C term, a 100% irrevocable L/C without "soft clauses" can be accepted.
Q: How long will the delivery time take?
A: Normally mud pump products will take about 3-15 days to produce the ordered machines. Most of the
time, we can have an immediate delivery of our regular machines in 15 days.
Q: How about after sales service?
A: 365×24 Year-round Service We are committed to year-round 24-hour service even during holidays, in
line with our policy of always providing "a response within 15 minutes and job completion within 24 hours."
Q:Spare Parts When You Need Them
A:We have spare parts centers across continents that stock specialist spare parts. We promise that spare
parts will be delivered within 72 hours or no more than one week.
