(JRC500) Portable Hydraulic Reverse Circulation Drilling Rig for Rock
Beijing Jincheng Mining Technology Co., Ltd.- Certification：CE, ISO 9001:2008
- Condition：New
- Motor：AC Motor
- Drill Hole Diameter：90-400mm
- Drill Hole Depth：500m
- Bit Type：Drag Bit
Base Info
- Model NO.：JRC500
- Drilling Way：Rotary
- Type：Crawler
- Drilling Rig Type：Crawler Mounted Drilling Rig
- Transport Package：Standrad Export Packing
- Specification：7550*2260*2700 mm
- Trademark：JCDRILL
- Origin：China
- HS Code：8430419000
- Production Capacity：2000sets,Year
Description
Rotary Screw/Movable21 Pressure Required Mpa 1.05-4.5 22 Air consumption m³/min 16-60 23 Net Weight T 13 24 Shipping Length mm 7550 25 Shipping Width mm 2260 26 Shipping Height mm 2700 27 Ground Clearance mm 300 28 Volume of Flow mm 20
Characteristics
1.Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.
2:Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3.During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.
4.Also it's available to positive circulation use normal drilling tool.
5.The working system composed of feed system, guide(mast),rotary head, compensation system, centralizer, rod exchange system, winding and so on.
6.Axes pressure, feed speed, rotary speed is adjustable.

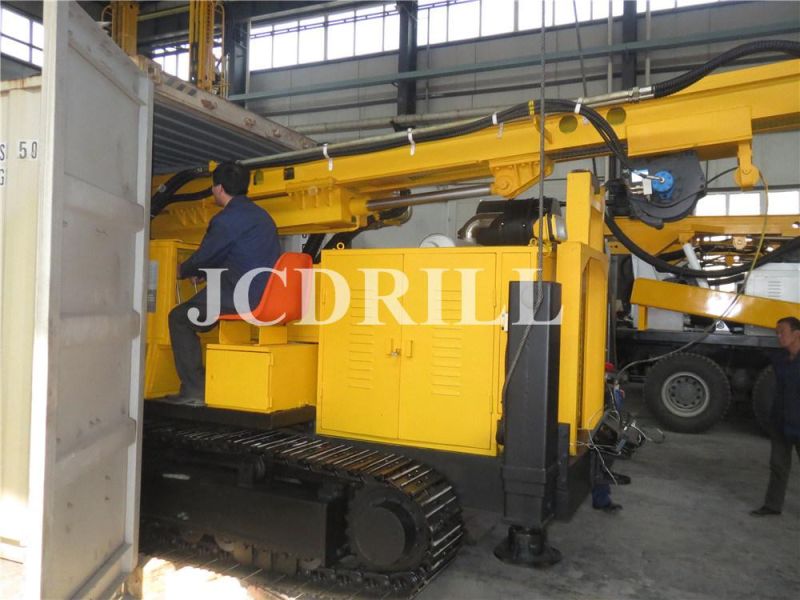

Packing& Delivery
Characteristics 1.Diesel engine mounted hydraulic system, all the system include the walking, rotation, feed, lifting, Leg, lifting, compensation system, rod change is hydraulic.
2:Reverse circulation system working together with DTH technology, air compressor provide pressed air for impact and dust collect.
3.During working, use the reverse circulation hammer, double tube, pressed air enter between two tube and dust out from the inner tube.
4.Also it's available to positive circulation use normal drilling tool.
5.The working system composed of feed system, guide(mast),rotary head, compensation system, centralizer, rod exchange system, winding and so on.
6.Axes pressure, feed speed, rotary speed is adjustable.
Packing& Delivery
Service
In our after sales service system, We establish perfect control system strictly according to ISO-9000 series, in this system, technology date and problem solve solution and preventive measures will be provided in any maintain project, all the spare parts will be used in new OEM products with installation instructions, packing list, manufacturer's instruction, qualification and Warranty certificate.
We provide "one equipment & one case, endless service, namely the after sales service begin from the order confirmation, last for the working life of the equipment.
